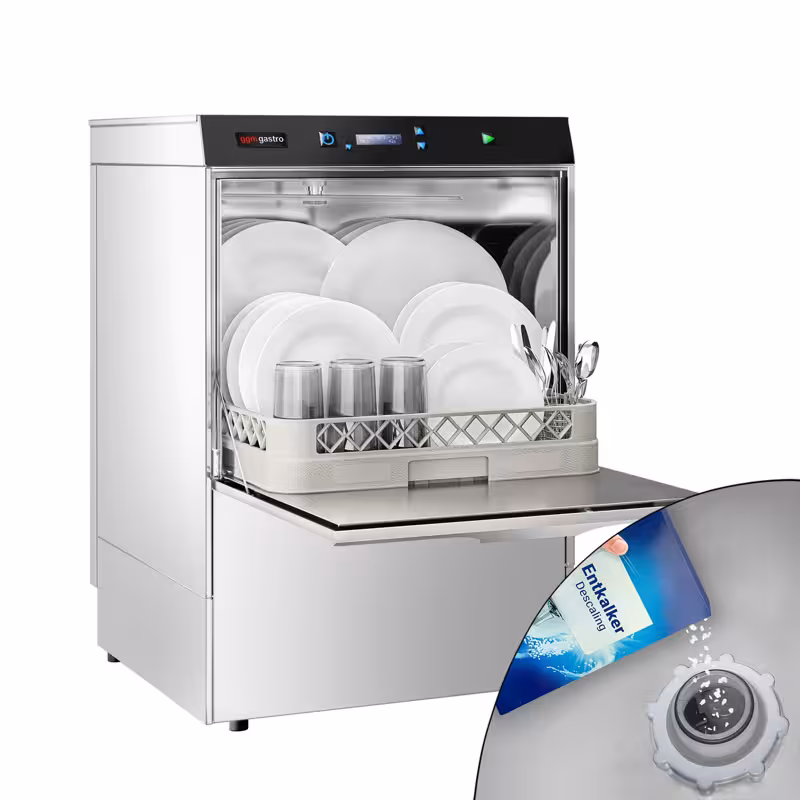

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
* die Abbildung kann vom Original leicht abweichen.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
Produktvorteile
- Made in Italy: Represents high-quality workmanship and quality from Italy.
- Integrated descaling system: No external descaler required, reducing maintenance effort.
- Double-walled insulated walls: Significantly lower noise levels and effectively reduce heat emission.
Beschreibung
Product Overview
The double-walled dishwasher is a robust undercounter unit, ideal for professional use in gastronomy and large-scale kitchens. With a power consumption of 3.9 kW, it provides powerful cleaning while maintaining efficient energy use. The electronic control panel with LCD display allows for simple and intuitive operation of the machine.
Product Details
Equipped with two wash arms for particularly thorough cleaning, the machine ensures excellent washing results. The combination of alkaline, detergent, and rinse aid pumps guarantees optimal dosing of cleaning agents. The wash chamber features a dual filtration system that reliably captures impurities and improves hygiene. The rotating, non-clogging wash and rinse arms ensure an even distribution of water. The door opening is equipped with a safety system that enhances user comfort and safety.
Conclusion and Areas of Application
This dishwasher impresses with its high washing performance and easy operation, making it an indispensable aid in the professional kitchen. Thanks to the high-quality stainless steel housing, the unit is particularly durable and resilient. The machine is perfectly suited for restaurants, canteens, and catering businesses that value fast and hygienic cleaning. The integrated descaling function facilitates maintenance and extends the service life.
Installation & Bedienung
- Information on the mains voltage can be found in the operating manual.
- Please note that this appliance requires a cold water connection.
- A detailed guide can be found under the "Download" and "Video" tabs.
Reinigung & Pflege
- For flawless operation, it is recommended to descale the device regularly.
- If a descaler is installed upstream, the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners to avoid damage.
Technische Daten
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Forwarding agent |
|---|---|
| Delivered as | Mounted |
| Weight | 64 kg |
Download / Explosionszeichnung
