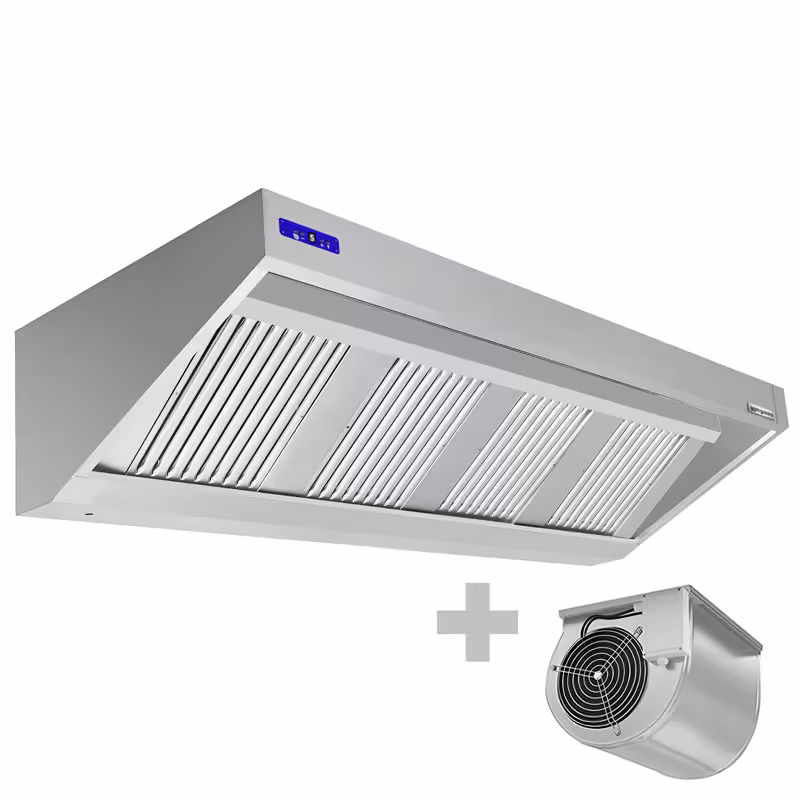

Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting

Installation Depth: 900 mm
Art.-Nr. WLS229M
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting
  • Commercial Wall-Mounted Extraction Canopy - with Motor - 2200mm - Speed Controller, Baffle Filters & LED Lighting

* die Abbildung kann vom Original leicht abweichen.

€1,059.99 *
UVP €1,960.99
Sofort lieferbar: 3 - 5 Werktage
Kostenloser Versand**
Menge:
Drucken* Nettopreis | Bruttopreis inkl. 0% MwSt.: €1,059.99
Zubehör (6)
Ersatzteile (4)

Produktvorteile

  • High-quality workmanship: Made in Italy guarantees first-class quality and durability of the product.

Beschreibung

Product Overview

This wall-mounted canopy with motor is specifically designed for use in the hospitality industry and, with a width of 2200 mm, offers an optimal solution for efficient air purification in kitchen areas. The compact and robust construction ensures durability and reliability in daily operation. Thanks to the high-quality stainless steel AISI 430 finish, the canopy is particularly resistant to corrosion and easy to clean.

Details and Features

The canopy is equipped with a powerful motor with 420 watts and five speed settings, which can be manually adjusted via a control knob. With an air volume of 2400 m³/h and an air exchange rate of 2200 m³, it guarantees effective extraction of cooking vapours and grease particles. Fitted with four Type B filters and a practical grease drain tap, cleaning is simplified and air quality is sustainably improved. Additionally, integrated lighting provides optimal visibility during cooking.

Conclusion and Areas of Application

This wall-mounted canopy is the perfect choice for professional kitchens requiring a reliable and powerful extraction solution. It impresses with its easy installation, robust construction, and versatile adjustment options. It is ideally suited for restaurants, canteens, and other hospitality establishments that value a clean and safe working environment. With this canopy, the air is efficiently purified and the daily kitchen routine becomes significantly more comfortable.

Installation & Bedienung

  • Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.

Reinigung & Pflege

  • Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
  • Daily cleaning prevents burning in or resin build-up.
  • Carefully lift the filter out of the holder (caution: fat droplets!).
  • In case of heavy soiling, rinse off coarse fat with hot water.
  • Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
  • The filters must be completely dry before being reinserted to prevent mould or bacterial growth.

Technische Daten

Dimensions

Width 2.200 mm
Depth 900 mm
Height 450 mm

Filter dimensions

Width 400 mm
Height 500 mm

Details

Appliance type extractor hood
Centrifugal fan RS25020H
Extraction rate 2.400 m³/h
Air turnover per hour 2.200 m³
Number of filters 4

Connected load

Power 420 Watt
Voltage 230V
Phase(s) 1N/PE
Frequency 50 Hz

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 80 kg
Net weight 53 kg

Download / Explosionszeichnung
