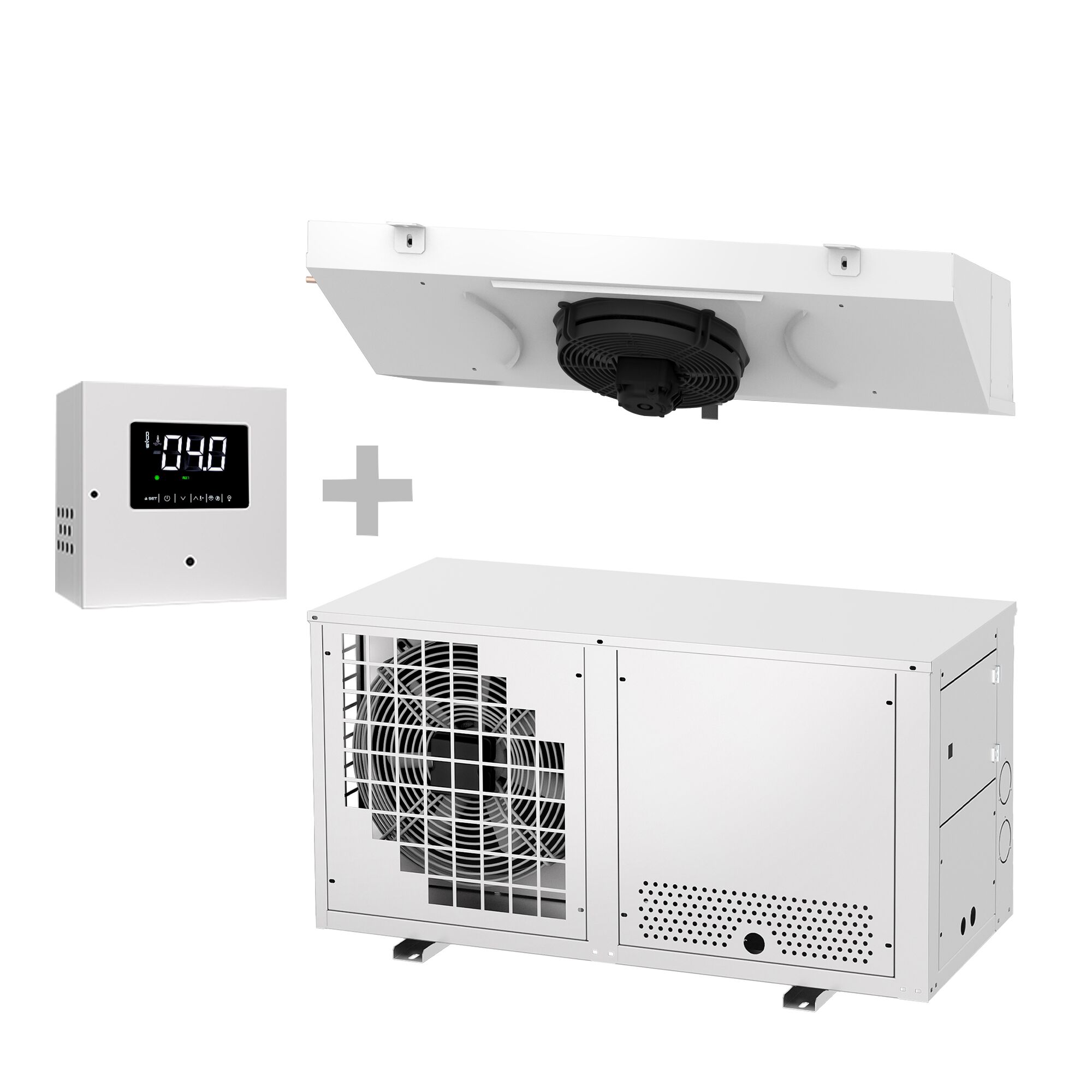

Commercial Remote Split System Refrigeration Pack - max. for 7.5 m³ - IP rating IP 51 - 559W
Temperature: 0 to + 8°C
Art.-Nr. SKAF75
* die Abbildung kann vom Original leicht abweichen.
Drucken* Nettopreis | Bruttopreis inkl. 0% MwSt.: €2,242.99
Commercial Remote Split System Refrigeration Pack - max. for 7.5 m³ - IP rating IP 51 - 559W
Art.-Nr. SKAF75
Temperature: 0 to + 8°C
Drucken* Nettopreis | Bruttopreis inkl. 0% MwSt.: €2,242.99
Zubehör (9)
Ersatzteile (9)
Beschreibung
Design
- Split cooling unit
- Protection class IP 51
- Condensation water drain
- Electronic control unit with EVCO display
- Expansion with expansion valve
- Digital thermostat
- Simple assembly
- The separate installation of the evaporator unit and condenser unit makes it possible to transfer heat and noise to the outside
Quality
- Self-supporting housing (galvanised powder-coated sheet)
- Heat exchanger with copper tubes and aluminum fins
- Hermetic compressor with thermal winding protection
- Long service life
- Particularly hygienic due to easy cleaning
Cooling
- Temperature range: 0 °C to 8 °C
- Ambient temperature up to: 38°C
- Maximum room volume: 7,50 m³
Connection
- Compressor output: 559 Watt
- Electrical connection: 230V / 1N/PE / 50 Hz
Scope of delivery
- Vaporizer unit
- Capacitor unit
- Electronic control
- 5m copper pipe
Dimensions
- Outer dimension B: 900 mm
Notes
- Despite IP 51 protection, we recommend installation indoors only!
- The cooling unit is delivered without refrigerant!
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
- Material complies with European food standards
Technische Daten
Dimensions
| Width | 900 mm |
|---|
Evaporator unit dimensions
| Width | 900 mm |
|---|---|
| Depth | 685 mm |
| Height | 245 mm |
Capacitor unit dimensions
| Width | 960 mm |
|---|---|
| Depth | 525 mm |
| Height | 489 mm |
Details
| Maximum room volume | 7,50 m³ |
|---|---|
| Temperature | 0 °C to 8 °C |
| Ambient temperature up to | 38°C |
| Compressor output | 559 Watt |
| Connected load | 230V/ 50 Hz |
| Water protection | IP 51 (protection against vertically falling dripping water) |
| Dust protection | IP 51 ( protection against dust in damaging quantities) |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Not Mounted |
| Gross weight | 117 kg |
| Net weight | 79 kg |
