Design

• Split freezer unit

• Protection class IP 51

• Condensation water drain

• Electronic control unit with EVCO display

• Expansion with expansion valve

• Digital thermostat

• Simple assembly

• Condensation drainage connection

• The separate installation of the evaporator unit and condenser unit makes it possible to transfer heat and noise to the outside

Quality

• Self-supporting housing (galvanised powder-coated sheet)

• Heat exchanger with copper tubes and aluminum fins

• Hermetic compressor with thermal winding protection

• Long service life

• Particularly hygienic due to easy cleaning

Cooling

• Temperature range: -22 °C to -10 °C

• Ambient temperature up to: 38°C

• Maximum room volume: 20 m³

• Powerful and constant cooling

• Automatic defrosting can be programmed by a regulator

Connection

• Compressor output: 497 Watt

• Electrical connection: 400V / 3N/PE / 50 Hz

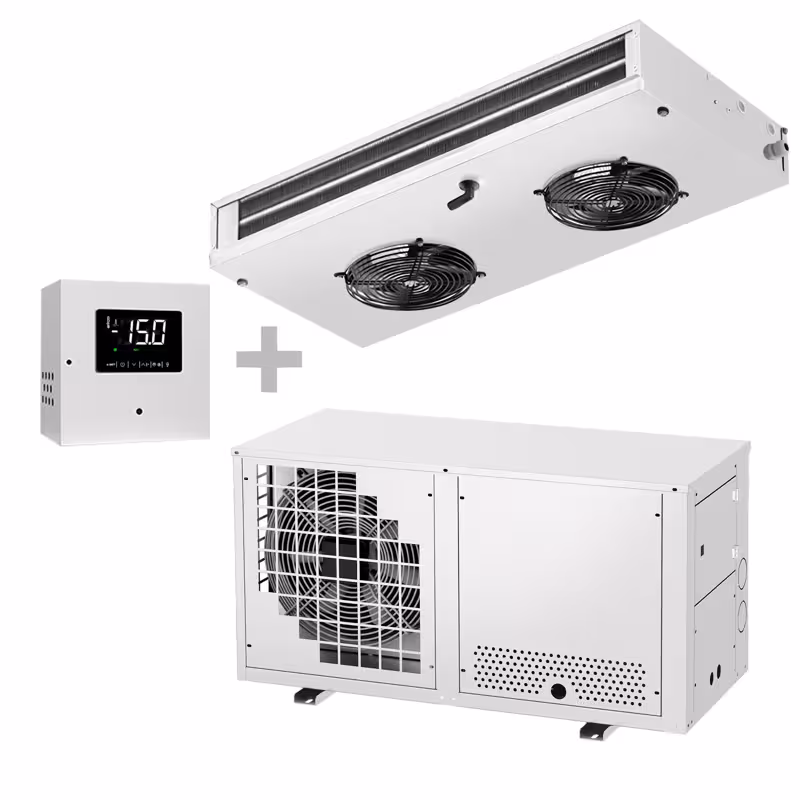

Scope of delivery

• Vaporizer unit

• Capacitor unit

• Electronic control

• 5m copper pipe

Dimensions

• Outer dimension B: 1.900 mm

Notes

• Despite IP 51 protection, we recommend installation indoors only!

• The cooling unit is delivered without refrigerant!

Guidelines

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

• Material complies with European food standards
