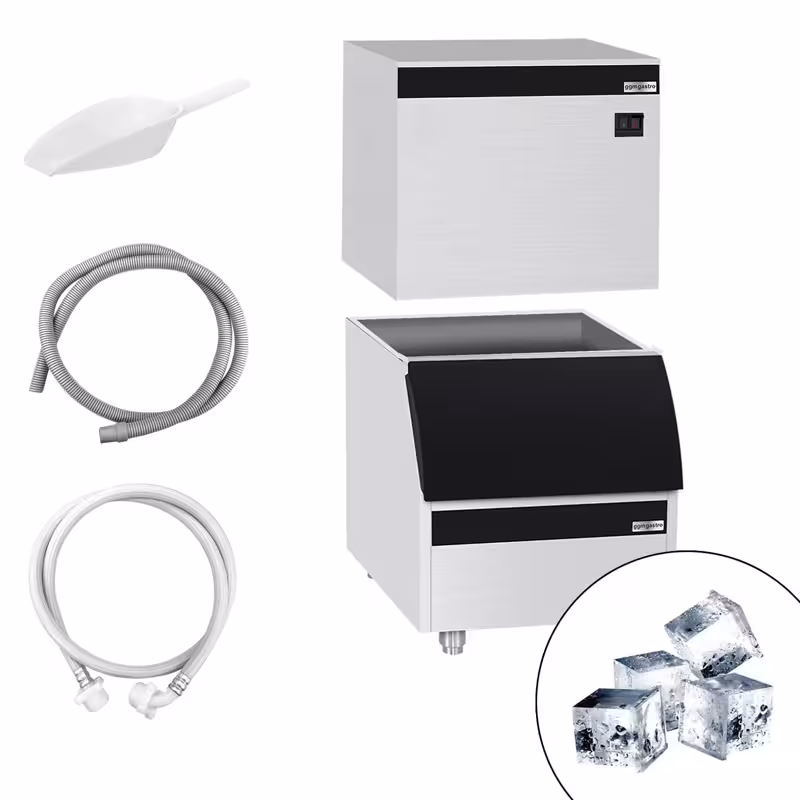

Commercial Ice Machine - Cube - 230 kg/24 h - incl. storage container
* die Abbildung kann vom Original leicht abweichen.
Commercial Ice Machine - Cube - 230 kg/24 h - incl. storage container
Beschreibung
- High-quality touchscreen display
- Strong and consistently maintained cooling
Efficient ice cube machine for professional demands
This ice cube machine produces up to 230 kg of ice cubes per 24 hours, making it ideal for the gastronomy and event sectors. The integrated storage bin with a capacity of 175 kg ensures a continuous supply of fresh ice cubes. The high-quality touchscreen display allows for easy and intuitive operation.
Reliable cooling and durable construction
The machine impresses with its strong and consistently maintained cooling, guaranteeing optimal ice quality at all times. The robust housing made of AISI 304 stainless steel ensures durability and easy cleaning. Thanks to the electronic control, operation is particularly precise and reliable. Perfectly suited for professional use in bars, restaurants, and catering.
Installation & Bedienung
- Water drainage is required.
- A 25 amp fuse is necessary for this appliance.
Reinigung & Pflege
- For flawless operation, it is recommended to regularly descale the device – suitable descalers are available as accessories
- If you have installed a descaler upstream, please note that the cartridge must be regenerated after approximately 1,750 litres of water flow.
- The actual maximum flow rate depends on the water hardness
Technische Daten
Dimensions
| Width | 762 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.537 mm |
Dimensions of Ice Cube Maker
| Width | 762 mm |
|---|---|
| Depth | 622 mm |
| Height | 575 mm |
Storage container dimensions
| Width | 762 mm |
|---|---|
| Depth | 900 mm |
| Height | 962 mm |
Details
| Ice production per cycle | 260 (12 g) / 360 (6 g) pieces |
|---|---|
| Dimensions full ice cube 12 g | 22 x 22 x 22 mm |
| Dimensions half ice cube 6 g | 22 x 10 x 28 mm |
| Refrigerant | R290 / 0,14 kg |
| Ambient temperature | 10 °C ~ 32 °C |
| Water pressure | Min. bar - max. bar |
| Water connection | 3 "/4 " Inch |
| Container capacity | 175 kg |
| Ice production/day | 230 kg |
| Cooling factor | Ventilation |
| Climate class | T |
Connected load
| Power | 1,20 kW |
|---|---|
| Voltage | 230V |
| Amperage | 16 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Partly Mounted |
| Gross weight | 128 kg |
| Net weight | 127 kg |
Download / Explosionszeichnung
