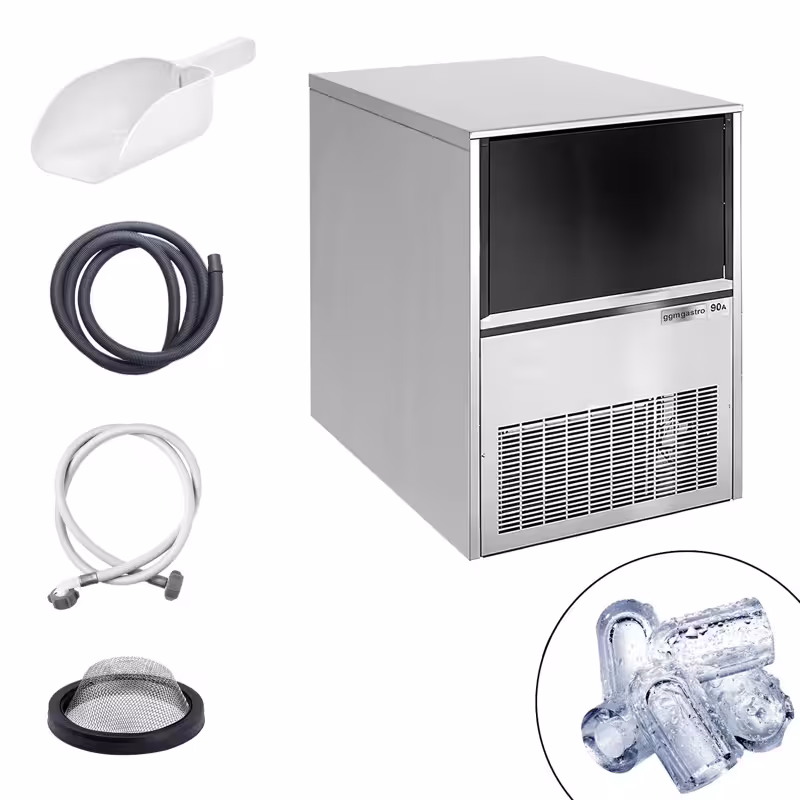

Commercial Ice Machine - Bullet - 79 kg/24 h
* die Abbildung kann vom Original leicht abweichen.
Commercial Ice Machine - Bullet - 79 kg/24 h
Beschreibung
- Ice cube mould: hollow cylinder
- Paddle system
Efficient ice cube production for commercial applications
The ice cube maker with hollow cylinder shape produces up to 79 kg of ice per 24 hours and has a storage capacity of 37 kg. It is equipped with a paddle system that ensures consistent ice quality. The robust design with a body made of high-quality AISI 304 stainless steel provides durability and easy cleaning.
Reliability and energy efficiency in focus
This fast and energy-saving ice cube machine offers strong and consistently maintained cooling. An on/off switch allows for easy operation. The reliable manufacturing design makes it ideal for use in gastronomy, bars, and other commercial areas reliant on a continuous ice supply.
Installation & Bedienung
- This appliance requires a fixed water connection!
- A water drainage system is required.
- Warning: The integrated containers are not suitable for the permanent storage of ice cubes!
- A detailed manual can be found under the "Download" and "Video" tabs.
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If you have installed a descaler upstream, please note that the cartridge needs to be regenerated after approximately 1,500 - 2,000 litres of water flow. The actual maximum flow depends on the water hardness.
Reinigung & Pflege
- For flawless operation, it is recommended to descale the device regularly – suitable descaling agents are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technische Daten
Dimensions
| Width | 647 mm |
|---|---|
| Depth | 557 mm |
| Height | 984 mm |
| Maximum height incl. feet | 1.089 mm - 1.139 mm |
Details
| Ice cube shape | Thimble |
|---|---|
| Ice cube size | 28 x 42 mm |
| Ice cube weight | 20 g / piece |
| Ice production/day | 79 kg |
| Container capacity | 37 kg |
Cooling
| Coolant | R290 |
|---|---|
| Air temperature | 5 °C ~ 43 °C °C |
| Water inlet temperature | 5 °C ~ 35 °C |
| Water pressure | Min. bar - max. bar |
| Water connection | 3/4" inches |
Connected load
| Power | 620 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 71 kg |
| Net weight | 60 kg |
Download / Explosionszeichnung
