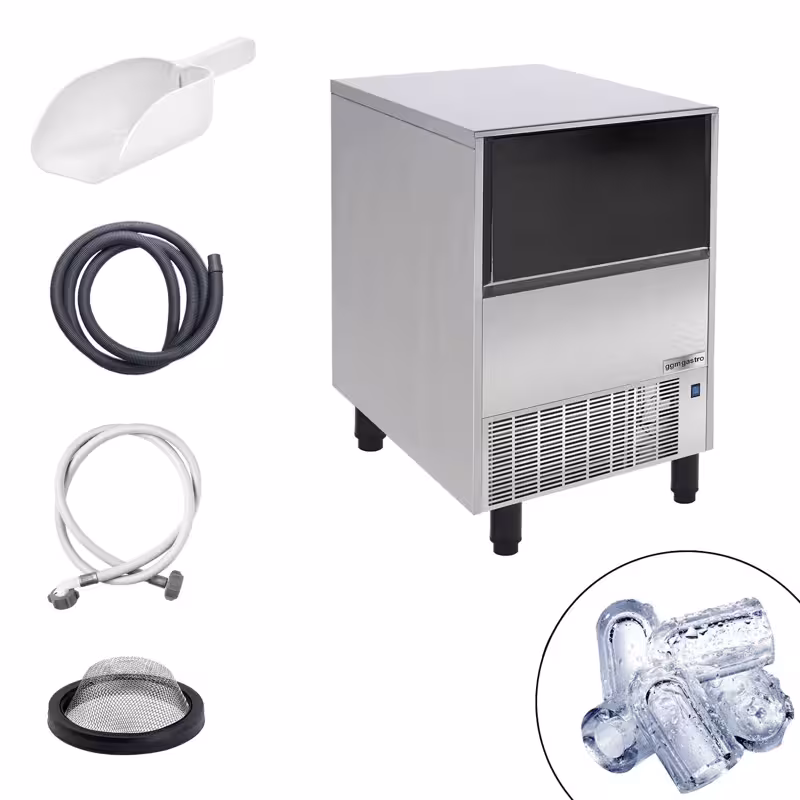

Commercial Ice Machine - Bullet - 51 kg/24 h
* die Abbildung kann vom Original leicht abweichen.
Commercial Ice Machine - Bullet - 51 kg/24 h
Beschreibung
- Ice cube mould: hollow cylinder
- Paddle system
Efficient ice cube production for commercial and hospitality use
The ice cube maker with hollow cylinder mould produces up to 51 kg of ice daily and impresses with a fast and energy-saving system. The robust paddle system ensures even ice formation, while the high-quality AISI 304 stainless steel casing guarantees durability and hygiene. The simple operation via the on/off switch makes it particularly user-friendly.
Powerful design with reliable cooling
The strong and consistently maintained cooling ensures continuously high ice quality. With a container capacity of 25 kg, the ice cube maker is ideal for use in gastronomy, hotels, or catering. The reliable manufacturing design supports straightforward maintenance and ensures continuous operation even under heavy use.
Installation & Bedienung
- This appliance requires a fixed water connection!
- A water drainage system is required.
- Warning: The integrated containers are not suitable for the permanent storage of ice cubes!
- A detailed manual can be found under the "Download" and "Video" tabs.
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If you have installed a descaler upstream, please note that the cartridge needs to be regenerated after approximately 1,500 - 2,000 litres of water flow. The actual maximum flow depends on the water hardness.
Reinigung & Pflege
- For flawless operation, it is recommended to descale the device regularly – suitable descaling agents are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technische Daten
Dimensions
| Width | 514 mm |
|---|---|
| Depth | 557 mm |
| Height | 811 mm |
| Maximum height incl. feet | 916 mm - 966 mm |
Details
| Ice cube shape | Thimble |
|---|---|
| Ice cube size | 28 x 42 mm |
| Ice cube weight | 20 g / piece |
| Ice production/day | 51 kg |
| Container capacity | 25 kg |
Cooling
| Coolant | R290 |
|---|---|
| Air temperature | 5 °C ~ 43 °C °C |
| Water inlet temperature | 5 °C ~ 35 °C |
| Water pressure | Min. bar - max. bar |
| Water connection | 3/4" inches |
Connected load
| Power | 380 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 54 kg |
| Net weight | 48 kg |
Download / Explosionszeichnung
