• Made in Italy: High-quality workmanship guarantees durable and reliable performance.
• Filtration & Deodorisation: Effectively removes unwanted odours and ensures clean, fresh air.

Efficient Exhaust Air Purification for Industrial Applications

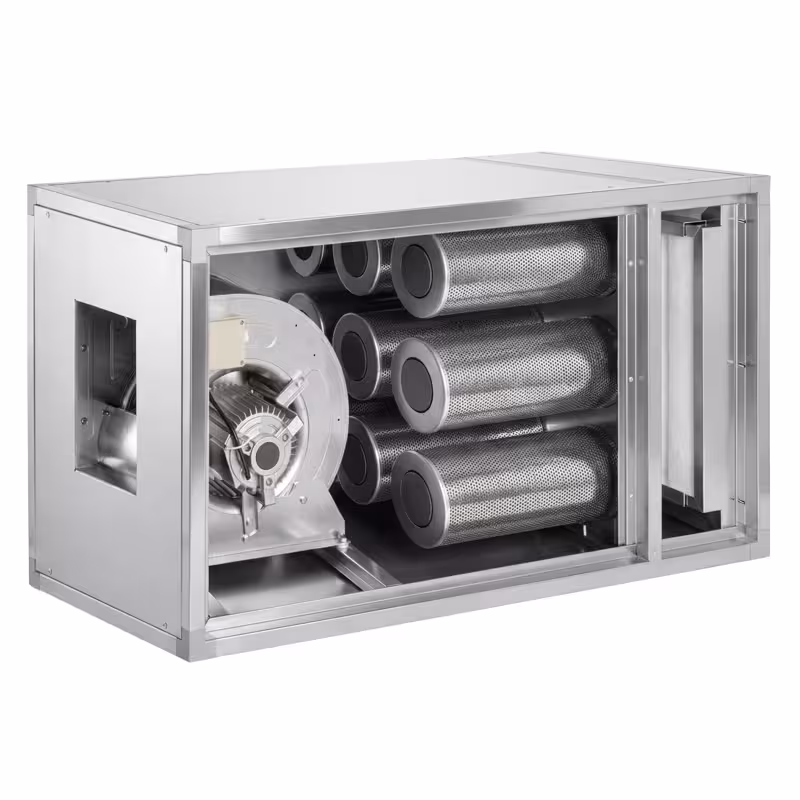

The exhaust air purification system with motor offers a capacity of 2,000 m³ and is ideally suited for effectively cleaning exhaust air in production and work areas. With a 70% separation efficiency, pollutants are reliably filtered from the air, ensuring significantly improved air quality. Equipped with a pre-filter and activated carbon filter, the system removes both coarse particles and gaseous contaminants.

Robust Construction and Energy-Efficient Operation

The system features a robust frame construction made of aluminium profiles with one-sided panel cladding, providing durability and stability. The internally positioned galvanised steel sheet cladding and the externally mounted stainless steel cladding offer reliable protection against weather influences. Additionally, a thermal and sound-insulating foam insulation according to UNI EN 13501-1 Class B-s2,d0 ensures quiet operation and energy efficiency. The low energy consumption makes the system environmentally friendly and economical.

Conclusion and Areas of Application

This exhaust air purification system is perfectly suited for industrial and commercial environments where reliable air cleaning is required. It sustainably improves air quality, especially in workshops, production halls, or laboratories. The combination of high performance, robust design, and quiet operation makes it an efficient solution for clean and healthy working conditions.

• To prevent possible damage to the motor and/or the device, it is essential to connect the thermal protection to the speed controller, provided the wiring diagram shows two lines designated for this purpose.
• In single-phase motors, the thermal protection is often integrated into the motor, so no external connections to the speed controller are required.
• Before commissioning the fan and/or device, always carefully check the electrical connections. These may be located on the fan/device itself or in the terminal box.
• Damage caused by faulty electrical connections is excluded from the warranty.
• Only original spare parts guarantee the specified performance values regarding efficiency, air flow volume, and pressure.
• The use of non-original components that impair the proper functioning of the device is excluded from the warranty.
