Design

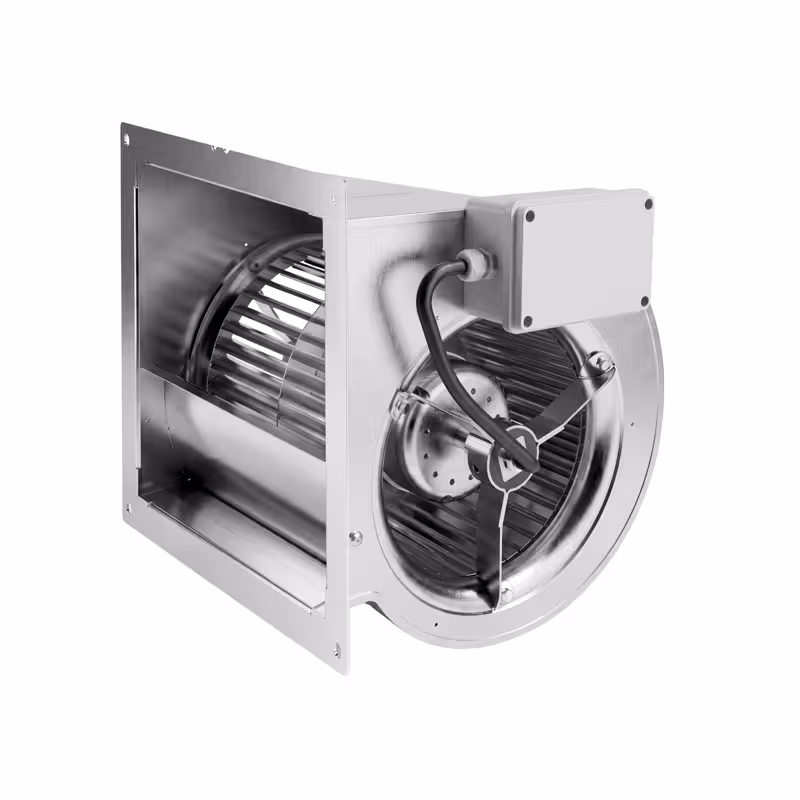

• Built-in motor for wall hoods

• TOP performance 2.500 m³

• Low energy consumption

• Environmentally-friendly

• Self-aligning lubricant nozzle

• Without speed regulator and feet

• Practical, maintenance-free machine

• Simple assembly

• Quiet operation

Quality

• Radial fan made of galvanised steel

• Fan wheel made of galvanised steel

Scope of delivery

• Security grille

• Mounting flange

Guidelines

• Compliant with 327/2011 EU - ErP Directive 2015

• Motor compliant with 2024/1834 EU - ErP Directive 2026

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

• Material complies with European food standards

Notes

• To prevent possible damage to the motor and/or the appliance, it is essential to connect the thermal protection to the speed controller if the wiring diagram shows two lines provided for this purpose

• With single-phase motors, the thermal protection is often integrated in the motor so that no external connections to the speed controller are required

• Always check the electrical connections carefully before commissioning the fan and/or appliance. These may be located on the fan/device itself or in the connection box

• Damage caused by faulty electrical connections is excluded from the warranty
