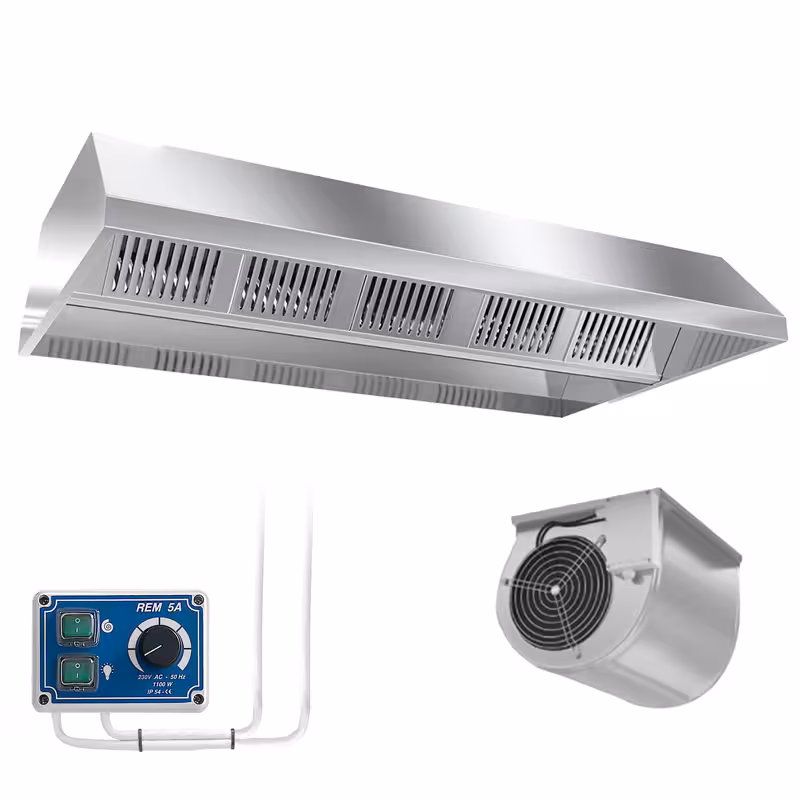

Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 2200mm - with External Speed Controller, Baffle Filters & LED Lights - 1500mm Deep
* die Abbildung kann vom Original leicht abweichen.
Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 2200mm - with External Speed Controller, Baffle Filters & LED Lights - 1500mm Deep
Produktvorteile
- Made in Italy: Represents high-quality workmanship and excellent quality. This ensures the product's durability and reliability.
- Single-block structure made of AISI 304 stainless steel: Offers a robust and resilient construction. This allows for easy cleaning and high resistance to corrosion.
- Grease-free labyrinth filters made of 18/10 stainless steel: Enable efficient filtration without clogging. This improves hygiene and reduces maintenance effort.
Beschreibung
Elegant and powerful ceiling hood with motor
The ceiling hood with a length of 2200 mm impresses with its high-quality workmanship and robust construction. It is ideal for use in professional kitchens where reliable and efficient ventilation is required. Thanks to the external controller, speed and lighting can be conveniently and flexibly controlled.
Thoughtful details for maximum functionality
The hood features a welded construction with a drip-free, hermetic gutter that safely collects grease and can be easily emptied via drain taps. The surface is Scotch-Brite satin-finished, which not only provides an appealing design but also facilitates cleaning. The 18/10 stainless steel labyrinth filter ensures grease-free air flow and a long service life.
Conclusion: Efficient ventilation solution for professional kitchens
This ceiling hood is perfectly suited for catering establishments and large kitchens that value powerful and hygienic ventilation. The combination of compact design, easy installation and flexible control makes it a reliable solution for demanding applications. With integrated lighting, it also provides optimal visibility during work.
Installation & Bedienung
- Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.
Reinigung & Pflege
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technische Daten
Dimensions
| Width | 2.200 mm |
|---|---|
| Depth | 1.500 mm |
| Height | 450 mm |
Drain size
| Width | 260 mm |
|---|---|
| Height | 300 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Conveyor volume | 2.400 m³/h / h |
|---|---|
| Number of filters | 8 |
| Air turnover per hour | 2.200 m³ |
Connected load
| Power | 420 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 139 kg |
| Net weight | 105 kg |
Download / Explosionszeichnung
