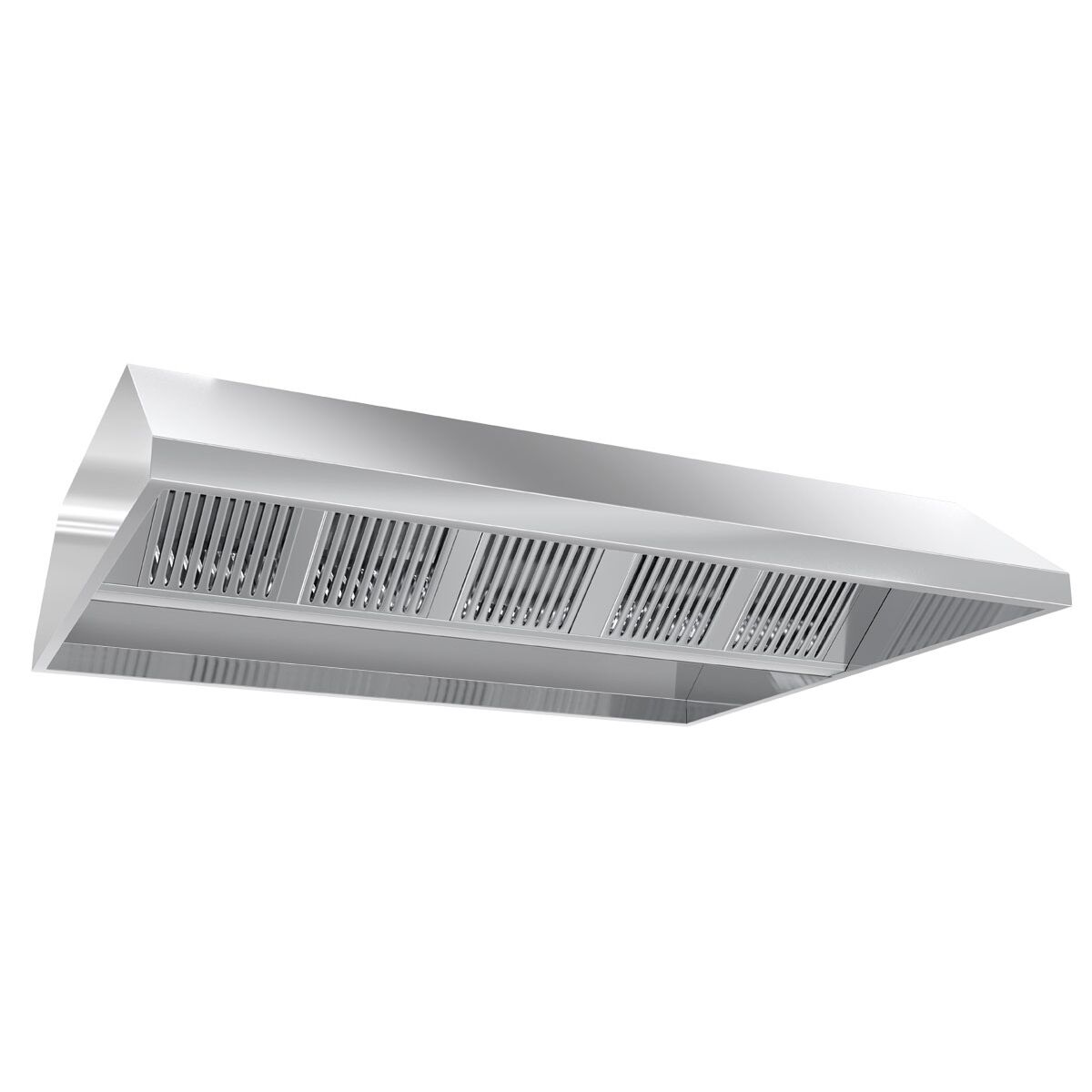

Commercial Ceiling-Mounted Extraction Canopy - 2800mm - with Baffle Filters - 2200mm Deep
* die Abbildung kann vom Original leicht abweichen.
Commercial Ceiling-Mounted Extraction Canopy - 2800mm - with Baffle Filters - 2200mm Deep
Produktvorteile
- Made in Italy: Represents high-quality workmanship and first-class quality from Italian manufacturing.
- Single-block structure made of AISI 304 stainless steel: Provides robust stability and durability for long-term use.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure effective grease separation and easy cleaning.
Beschreibung
Elegant and functional ceiling hood for professional kitchens
The ceiling hood with a length of 2800 mm impresses with its high-quality workmanship and is ideal for use in large-scale kitchens. It offers efficient air extraction to reliably remove cooking vapours and odours. Thanks to the integrated lamp, it also provides optimal illumination of the work areas beneath the hood.
Robust construction and well-thought-out details
The hood consists of a welded construction made of AISI 304 stainless steel, which is particularly durable and easy to clean. A drip-free, hermetic gutter safely collects fats and features practical drain taps for easy cleaning. For air filtration, grease-free labyrinth filters made of 18/10 stainless steel ensure high filtration performance. The surface is Scotch-Brite satin-finished, providing an attractive appearance and easy maintenance.
Conclusion and areas of application
This ceiling hood is perfectly suited for professional use in gastronomy, canteens, or large kitchens where hygiene and functionality are top priorities. The compact and robust design allows for easy installation and long service life. It combines efficient air purification with practical lighting, thus significantly facilitating everyday kitchen operations.
Installation & Bedienung
- Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.
Reinigung & Pflege
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technische Daten
Dimensions
| Width | 2.800 mm |
|---|---|
| Depth | 2.200 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Height | 400 mm |
Details
| Extraction rate | 4.500 m³/h |
|---|---|
| Number of filters | 10 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 171 kg |
| Net weight | 119 kg |
Download / Explosionszeichnung
