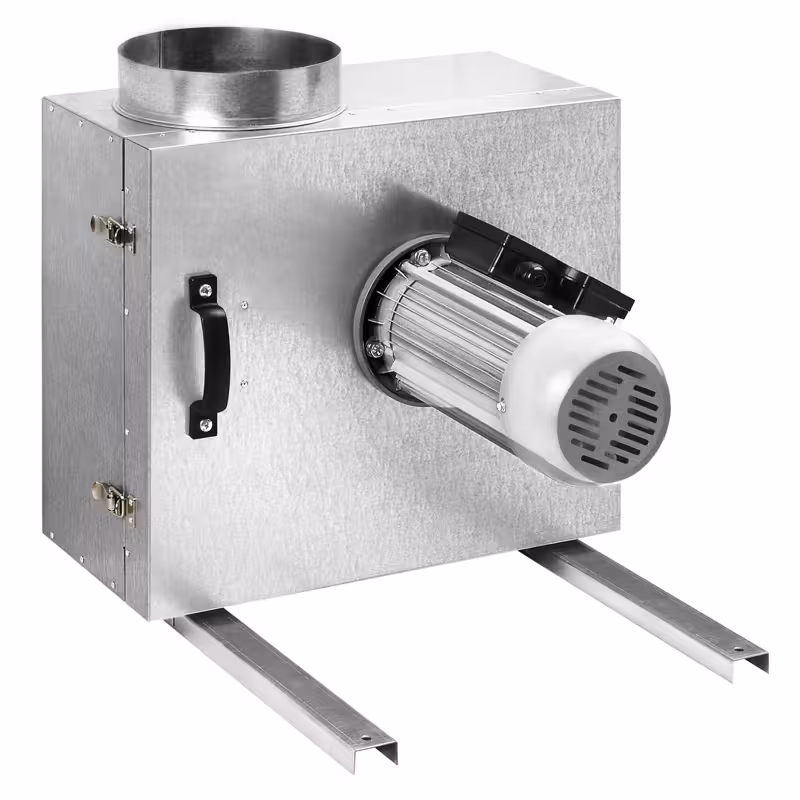

Airbox Pro Commercial Extractor Fan - 3155m³/h - 400V - suitable for commercial charcoal grills
SKU AA3155HTTemperature range: -20 °C to 120 °C
Rate now
** The picture may slightly differ from the original.
Print* net price | gross price incl. 0% VAT.: €1,409.99
** The picture may slightly differ from the original.
Airbox Pro Commercial Extractor Fan - 3155m³/h - 400V - suitable for commercial charcoal grills
SKU AA3155HTTemperature range: -20 °C to 120 °C
Rate now
Print* net price | gross price incl. 0% VAT.: €1,409.99
Accessories (6)
Product Advantages
- Hinged inspection opening: Facilitates maintenance and cleaning through easy access.
- Specifically designed for high temperatures up to 120 °C: Ensures reliable operation even under demanding conditions.
- Perfect for charcoal grills: Optimally adapted to the requirements of charcoal grills for best results.
- TOP performance with low power consumption: Provides efficient performance and saves energy.
Description
Efficient Ventilation Solution for Commercial Kitchens
The Airbox Pro is a powerful ventilation unit, delivering an air flow rate of 3155 m³ per hour. It operates on 230 volts and is specially designed for use with charcoal grills. Its foldable design allows for easy maintenance and cleaning. Thanks to its robust construction, it is ideal for professional use in commercial kitchens and ventilation systems.High-Quality Craftsmanship and Environmentally Friendly Technology
The Airbox Pro features a self-supporting structure made of sandwich panels, ensuring stability and durability. The fully insulated construction contributes to energy efficiency and minimises heat loss. A pre-cut air inlet simplifies installation. Made from high-quality steel, the unit provides reliable ventilation while maintaining environmentally friendly operation.Conclusion and Areas of Application
In summary, the Airbox Pro is the perfect solution for those requiring efficient and durable ventilation in commercial kitchens. It impresses with high air performance, ease of use, and eco-friendly features. It is particularly suitable for use with charcoal grills and in demanding ventilation systems where reliability and quality are essential.Installation & Operation
- A grease filter should be installed in front of the fan to prevent contamination of the impeller.
- Deposits on the impeller can cause imbalance, motor damage, or faults.
- Installation should be carried out so that easy maintenance and repair are possible later.
- Installation on uneven surfaces can lead to deformation of the housing and operational disturbances.
- When installed outdoors, protect against weather and water ingress (e.g. with a protective cover).
Cleaning & Maintenance
- If the fan is visibly dirty (a grease layer of more than 1 mm on the blades), we recommend that you engage a technician to carry out the cleaning
Technical data
Dimensions
| Width | 727 mm |
|---|---|
| Depth | 740 mm |
| Height | 764 mm |
Details
| Air turnover per hour | 3.155 m³ |
|---|---|
| Air outlet connection diameter | Ø355 mm |
| Temperature | -20 °C to 120 °C |
| Revolutions per min | 1.379 |
| Noise level | 49 dB |
Connected load
| Power | 405 Watt |
|---|---|
| Voltage | 400V |
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
| Amperage | 0,87 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 59,20 kg |
| Net weight | 59 kg |
