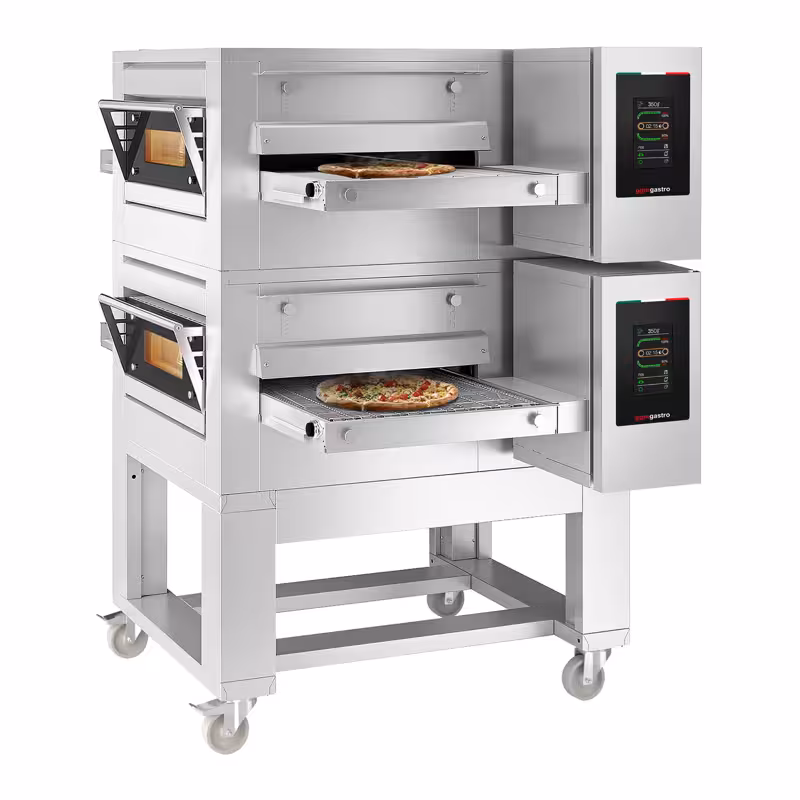

(2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand

Temperature up to 350 °C
Art.-Nr. 2#DPZ20030EN#UDZ2003E3
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand
  • (2 Units) Commercial Electric Conveyor Oven – 1850 x 2450 mm – Touch Control – 1000 mm Belt Width – incl. Stand

* die Abbildung kann vom Original leicht abweichen.

€25,198.99 *
UVP €48,384.99
Lieferzeit: 5 - 6 Wochen
Kostenloser Versand**
Menge:
Drucken* Nettopreis | Bruttopreis inkl. 0% MwSt.: €25,198.99
Zubehör (6)

Produktvorteile

  • No. 1 among conveyor ovens in Europe: This guarantees the highest quality and reliability for your operation.
  • Made in Italy: Represents first-class craftsmanship and durable materials.
  • 10 cooking programmes with individual adjustment options: Allows precise tuning of cooking time, temperature, and power for perfect results.
  • Optimised ventilation system: Ensures fast and even baking results at up to 350°C.
  • Economy mode: Reduces energy consumption for smaller production volumes, thereby lowering your operating costs.

Beschreibung

Efficient Conveyor Oven Solution for the Hospitality Industry

The electric conveyor oven impresses as a powerful and energy-efficient solution for professional kitchens and hospitality businesses. With a belt width of 1000 mm and compact dimensions of 1820 x 2450 mm, it offers ample space for the simultaneous preparation of large quantities. The integrated base frame ensures a stable and ergonomic working position.

Modern Technology and Practical Features

The intuitive touch panel allows for easy and precise control of the oven. Thanks to the reverse button, the direction of the conveyor belt can be changed at the push of a button, significantly simplifying handling. The high-quality insulation makes the oven particularly energy-efficient, while the patented cooling system ensures a comfortable and safe external casing. A heat-resistant viewing window enables monitoring of the cooking process without opening the door. Additionally, the oven offers an automated weekly scheduling function and IoT connectivity for remote control and monitoring via app.

Conclusion and Areas of Application

This electric conveyor oven is ideal for professional use in pizzerias, bakeries, and large kitchens that rely on fast and even preparation. The combination of high performance with low power consumption and modern control options makes it an indispensable appliance for efficient workflows. It is especially suitable for businesses that value quality, energy efficiency, and smart technology.

Installation & Bedienung

  • ⚠️ Please note that all appliances with three-phase power connections must be installed by a qualified professional
  • ⚠️ Please ensure a minimum distance of 15 cm is maintained from rear and side walls or adjacent large appliances
  • ⚠️ Remove all packaging material. Ensure that the polystyrene inside the baking chamber and beneath the fireclay bricks is completely removed
  • Before first use, the oven must be seasoned. To do this, increase the temperature by 50°C every 30 minutes until the maximum temperature is reached
  • Heat the oven at maximum temperature for 4 hours. Keep the door open during this time to allow toxic fumes to escape

Reinigung & Pflege

  • Regularly remove baking residues from the oven.
  • Thoroughly clean the oven after each use.

Technische Daten

Overall dimensions

Width1.820 mm
Depth2.450 mm
Height1.920 mm

Conveyor belt dimensions

Bandwidth1.000 mm
Belt length2.450 mm
Oven section1.300 mm

Dimensions per furnace

outer dimension Width1.820 mm
external dimension Depth2.450 mm
external dimension Height720 mm

Base frame dimensions

Width Underframe1.550 mm
Depth Underframe1.300 mm
Height Underframe480 mm

Details

OperationTouchscreen
Number of baking chambers2 Baking chambers
Minimum baking time2,33 '
Maximum baking time30 '
Number of pizzas per hour per baking chamber200
Pizza Diameter30 cm

Baking method

Heating typeConvection
Temperature to:350 °C

Connected load

Operation typeElectric
Power89,80 kW
Power Connection400V
Phase3N/PE
Frequency50 Hz

Delivery

Shipping MethodHaulage
Delivery conditionPartly Mounted
Gross Weight1.347,50 kg
