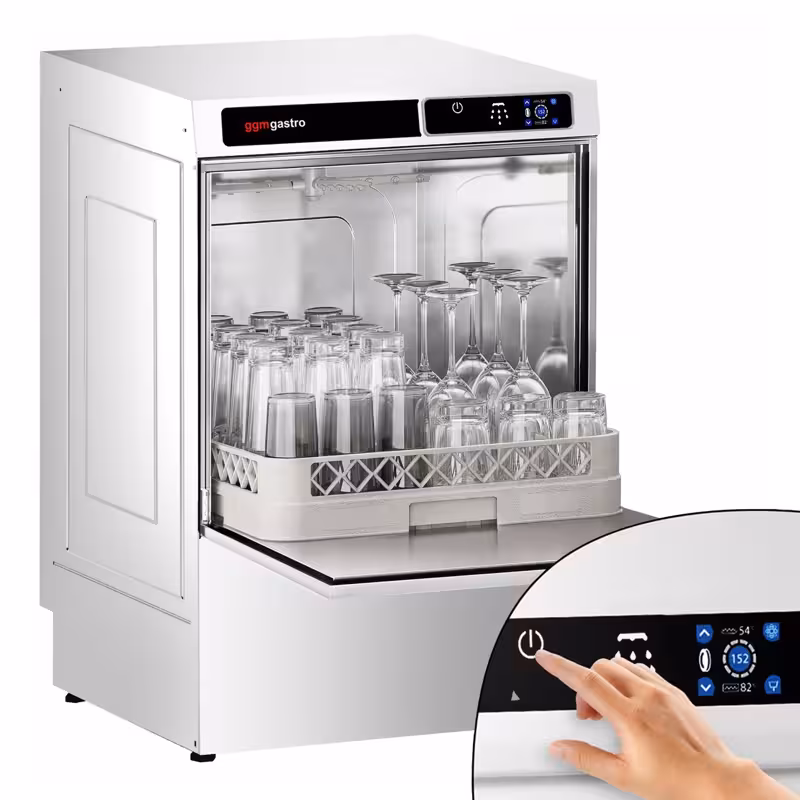

Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Intuitive touchscreen operation: Enables easy control with remaining time display and a variety of settings for greater comfort and clarity.
- Automatic detergent & rinse aid supply: Ensures precise dosing and optimal washing results without manual effort.
- High washing performance: Guarantees thorough cleaning and hygienic cleanliness with every wash cycle.
Description
Robust Dishwasher for Professional Use
The dishwasher with touch control and a power rating of 3.6 kW is ideal for use in gastronomy and commercial kitchens. The appliance impresses with its simple operation, as a single button press is enough to heat the water in the boiler tank and start the washing cycle. Thanks to the under-counter design, the machine can be integrated space-savingly, making it perfect for confined kitchen areas.
High-Quality Equipment and Thoughtful Technology
The machine is made from high-quality stainless steel, ensuring durability and easy cleaning. A fully sealed housing with IPX5 protection guarantees safe operation even under humid conditions. The digitally controlled washing and rinsing temperatures enable efficient cleaning for various levels of soiling. Additionally, detergent, rinse aid, and alkali pumps are integrated to ensure optimal dosing and disposal. The rotating, non-clogging wash and rinse arms guarantee thorough cleaning of the crockery.
Conclusion and Areas of Application
This dishwasher is the perfect solution for professional kitchens that value reliable cleaning, easy operation, and robust construction. It is excellently suited for restaurants, cafés, and large-scale kitchens where large quantities of crockery need to be efficiently washed daily. With its versatile programmes and powerful technology, it impresses with performance and user-friendliness.
Installation & Operation
- ⚠️ Information on the mains voltage can be found in the operating instructions.
- ⚠️ The installation of the appliances must be carried out by a qualified technician.
- To reduce the heating time, a hot water connection should be used.
- The maximum temperature of the hot water connection must not exceed 50°C.
- A detailed guide can be found under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 595 mm |
|---|---|
| Depth | 645 mm |
| Height | 830 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 335 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Washing temperature | 55 - 60 °C |
|---|---|
| Purge temperature | 80 °C - 85 °C |
| Washing pump power | 35 |
| Max. Crockery height | 335 mm |
| Maximum volume | 75 dB |
Flushing process
| Water consumption per run | 2,80 l |
|---|---|
| Rinse program 1 | Rinse time 102 Sekunden at max 35 Baskets/h |
| Rinse program 2 | Rinse time 132 Sekunden at max 27 Baskets/h |
| Rinse program 3 | Rinse time 152 Sekunden at max 23 Baskets/h |
| Rinse program 4 | Rinse time 172 Sekunden at max 20 Baskets/h |
| Washing program 5 | Washing time 192 seconds, 18 baskets / hour |
Capacity
| Tank capacity | 27 l |
|---|---|
| Boiler capacity | 6 l |
Connected load
| Power | 3,60 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 60 kg |
| Net weight | 51,30 kg |
Download / Exploded drawing
