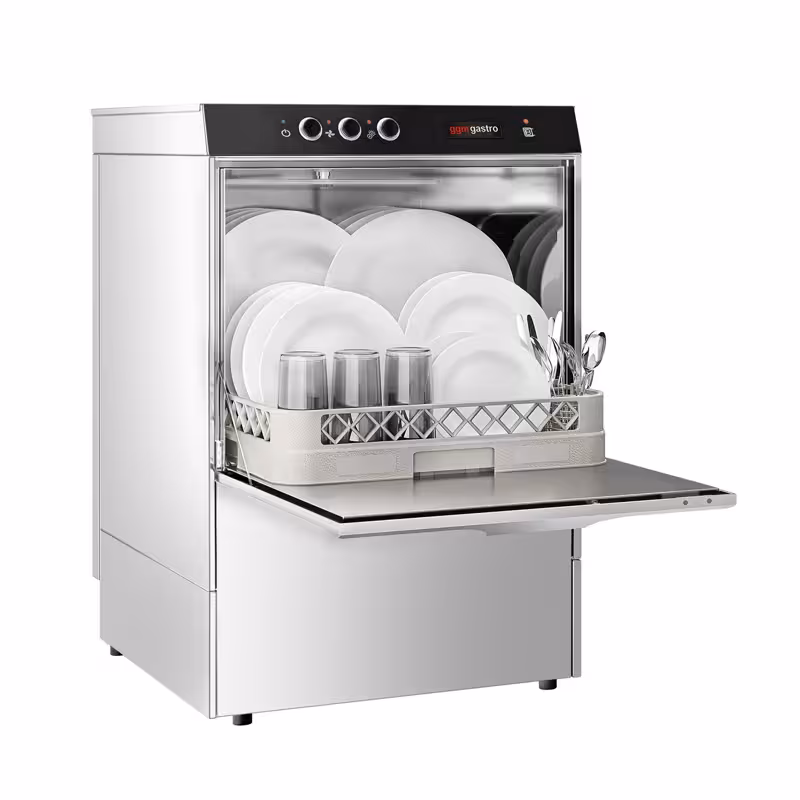

Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Represents high-quality workmanship and reliable quality. This increases the device's longevity.
- Maintenance-free electromechanical control: Significantly reduces maintenance effort. This ensures easy and trouble-free use.
Description
Efficient Manual Dishwasher for Professional Requirements
The dishwasher with 4.9 kW power is a robust undercounter unit specifically designed for commercial use. It impresses with its manual operation and high washing performance, reliably cleaning even heavily soiled dishes. The appliance is made of high-quality stainless steel, ensuring long service life and easy cleaning.
Performance Features and Technical Details
Equipped with two wash arms, the machine provides effective cleaning and even water distribution. The rotating, non-clogging wash and rinse arms guarantee consistently high washing quality. The integrated detergent pump allows for the draining of dirty water even over a height difference, offering flexible connection options. Additionally, the machine features an electric rinse aid dosing pump and automatic rinse aid feed, which ensure streak-free results. The washing chamber is equipped with a double filter system that efficiently retains impurities.
Conclusion and Areas of Application
This manual dishwasher is ideal for use in gastronomy, large kitchens, or other commercial areas where a reliable and powerful cleaning solution is required. Its robust construction and well-thought-out functions make it an indispensable helper for daily use. Thanks to the combination of high performance, easy operation, and durable design, it meets the highest standards of cleanliness and efficiency.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating manual.
- ⚠️ The appliance can be operated with both hot and cold water connections.
- The values of the wash programmes are only guaranteed with a hot water connection.
- A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 565 mm |
|---|---|
| Depth | 610 mm |
| Height | 825 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 330 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Wash temperature | 55 °C |
|---|---|
| Rinse temperature | 85 °C |
| Water consumption per run | 2,60 l |
| Max. Crockery height | 320 mm |
Flushing process
| Rinsing time 180 seconds | |
| Maximum number of baskets | 20 |
|---|
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 4,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 58 kg |
| Net weight | 47 kg |
Download / Exploded drawing
