Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 4.9kW - with Detergent & Rinse Aid Dosing Pumps

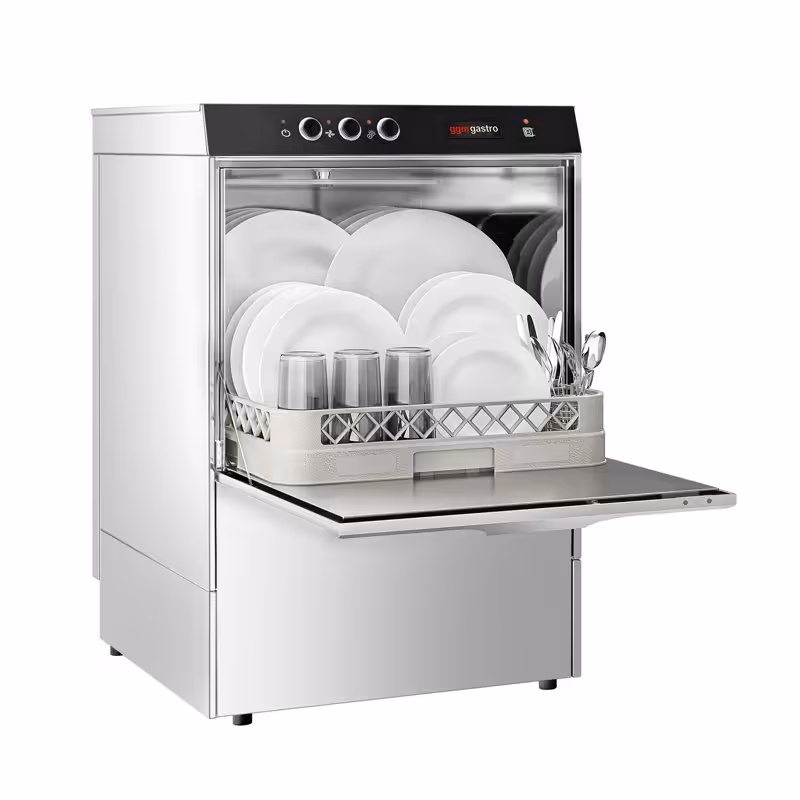

* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 4.9kW - with Detergent & Rinse Aid Dosing Pumps
Description
Efficient manual dishwasher for professional use
The dishwasher with 4.9 kW power is a robust undercounter unit specifically designed for commercial use. It impresses with its single-walled construction made of high-quality stainless steel, which guarantees durability and easy cleaning. With two wash arms, the machine ensures high washing performance and excellent cleaning results even with heavily soiled dishes.
Precise technology and well-thought-out equipment
The dishwasher features a maintenance-free electromechanical control that allows for simple and reliable operation. A special highlight is the automatic rinse aid supply via an electric dosing pump, which, together with the detergent pump, ensures optimal washing results. The rotating, non-clogging wash and rinse arms guarantee an even distribution of water and cleaning agents. Additionally, a safety system on the door opening protects the operator and increases operational safety.
Conclusion and areas of application
This manual dishwasher is ideal for gastronomy, hotels, and large kitchens that value reliable and powerful cleaning solutions. It stands out due to its high efficiency, robust construction and ease of use. Thanks to the double filter system in the washing chamber, permanent cleanliness is ensured. With this machine, professional cleaning of dishes, cutlery, and cooking utensils is achieved quickly and hygienically.
Installation & Operation
- ⚠️ Information on the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- The washing programmes only work with a hot water connection as specified.
- A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Only suitable for chlorine-free cleaners.
Technical data
Dimensions
| Width | 565 mm |
|---|---|
| Depth | 610 mm |
| Height | 825 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 345 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinsing time | 180 seconds |
|---|---|
| Maximum number of baskets | 20 |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|---|
| Boiler capacity | 5,50 l |
Connected load
| Power | 4,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 58 kg |
| Net weight | 47 kg |
Download / Exploded drawing
Safety and disposal instructions
