Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Detergent & Rinse Aid Dosing Pumps

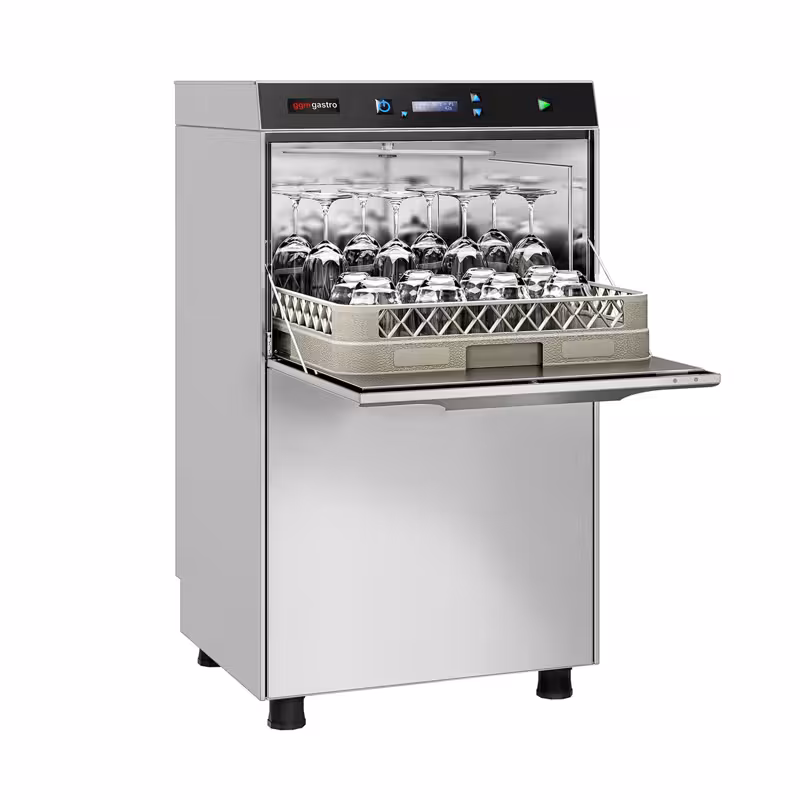

* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Detergent & Rinse Aid Dosing Pumps
Product Advantages
- Made in Italy: Represents high-quality workmanship and quality from Italy.
- Reduced noise level: The double-walled insulation ensures a significantly quieter working environment.
- Efficient thermal insulation: Heat radiation is minimised, saving energy and keeping the surroundings cooler.
Description
Product Overview
The double-walled dishwasher is a robust freestanding unit made of high-quality stainless steel, specifically designed for professional use in the gastronomy sector. With a power consumption of 3.9 kW, it offers high washing performance, reliably cleaning even demanding crockery and GN containers. The electronic control panel with LCD display ensures easy and user-friendly operation of the machine.
Product Details
The machine features two wash arms as well as rinse arms, which provide effective cleaning and a brilliant finish. The integrated detergent and rinse aid pump guarantees precise dosing of cleaning agents, ensuring maximum hygiene. A removable, roller-shaped filter facilitates the disposal of dirt and waste, while the double filter system in the wash chamber prevents blockages. The maintenance-free electromechanical control increases the machine’s reliability and longevity.
Conclusion and Areas of Application
This dishwasher is ideal for use in gastronomy, large kitchens, and catering operations that rely on fast and thorough cleaning. Thanks to its high washing performance and robust construction, it is perfectly suited for daily, intensive use. The combination of digital control and practical cleaning pumps makes the appliance an efficient solution for hygienic washing of crockery and GN containers.
Installation & Operation
- ⚠️ Information on mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ Wash programmes are only guaranteed with a hot water connection.
- Please check the mains voltage specifications carefully before installation.
- Connect the appliance to the desired water supply.
- For optimal washing results, use the hot water connection.
- Follow the detailed instructions in the "Download" and "Video" sections.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners to avoid damage to the device.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 1.230 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|---|
| Boiler capacity | 5,50 l |
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 74 kg |
| Net weight | 55 kg |
Download / Exploded drawing
