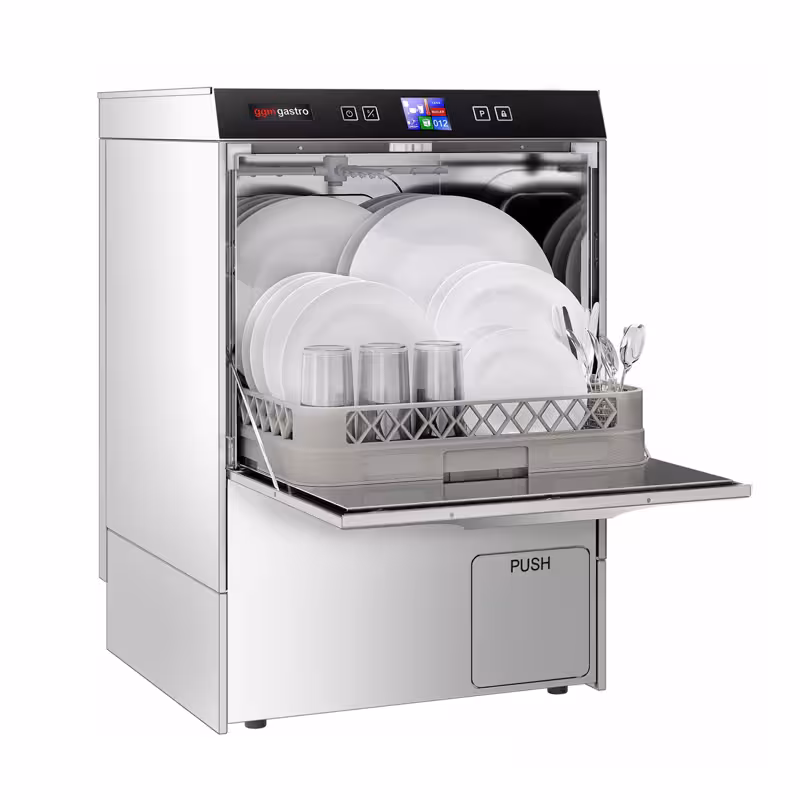

Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.55kW - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.55kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Lye pump: It pumps wastewater over a height difference into the wastewater connection. This makes the installation more flexible and independent of the position of the drain.
Description
Overview of the Dishwasher
The dishwasher with digital control offers a powerful cleaning solution for professional kitchens and demanding users. With a power output of 3.55 kW, it is ideally suited to efficiently and thoroughly wash crockery. The compact and space-saving design makes the machine perfect for environments with limited space.
Product Details and Features
Equipped with a detergent, rinse aid, and alkali pump, the machine ensures perfect dosing of cleaning agents and optimal cleaning. The soft-touch control with display allows for simple and intuitive operation. A magnetic safety sensor monitors the door flap and guarantees the highest safety during operation. The separate control of boiler and tank temperature ensures precise regulation of the washing process. The body made of high-quality stainless steel and the waterproof front panel provide durability and easy cleaning.
Conclusion and Areas of Application
This dishwasher is the perfect choice for gastronomy, canteens, and other commercial applications where hygiene and efficiency are top priorities. The combination of robust materials and innovative technology makes it a reliable partner in daily dishwashing routines. Thanks to the easy handling and the varied programmes, the machine adapts flexibly to different requirements.
Installation & Operation
- ⚠️ For safety reasons, the appliance should be connected to the power supply as a separate circuit.
- ⚠️ Please refer to the operating instructions for information on the mains voltage.
- ⚠️ A hot water connection is recommended.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Please note that this device is only suitable for chlorine-free cleaners.
Technical data
Dimensions
| Width | 590 mm |
|---|---|
| Depth | 660 mm |
| Height | 830 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 320 mm |
|---|
Details
| Maximum height of plates | 320mm |
|---|
Flushing process
| Washing temperature | 55 °C - 60 °C |
|---|---|
| Rinsing time 60/90/120/180 seconds | |
| Plate / hour | 500 |
| Water consumption per run | 2,50 l |
Connected load
| Power | 3,55 kW |
|---|---|
| Voltage | 220V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 74 kg |
| Net weight | 59 kg |
