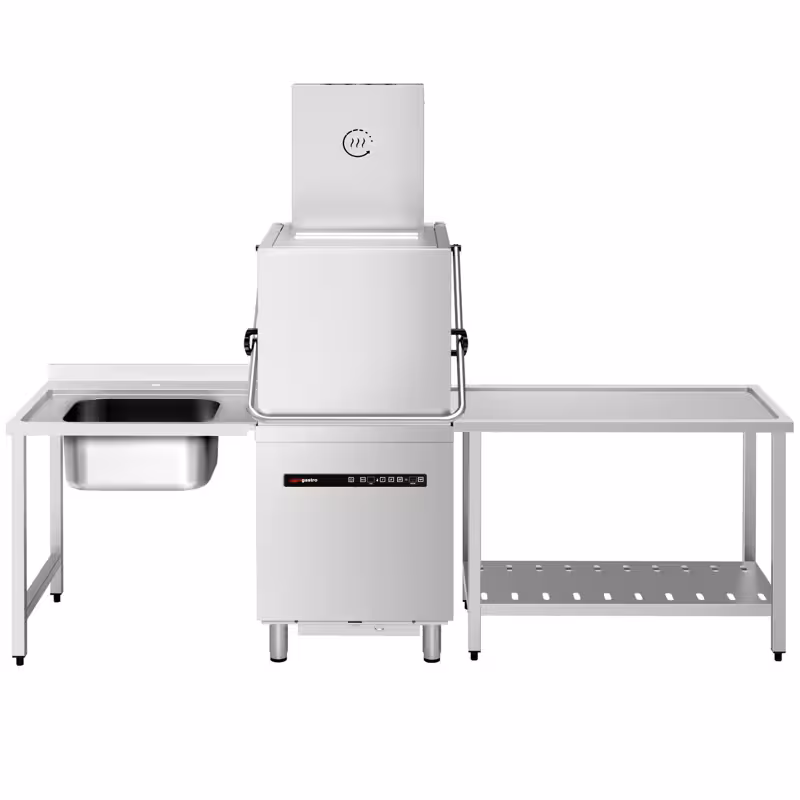

Pass Through Dishwasher - Digital Controls - 8.7kW - incl. Inlet Table left, Outlet Table right - with Heat Recovery, Detergent & Rinse Aid Dosing Pumps, Drain Pump
Insertion height: 400mm
SKU DSHI1080WD#SET-R
* The picture may slightly differ from the original.
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 19% VAT.: €3,592.60
Pass Through Dishwasher - Digital Controls - 8.7kW - incl. Inlet Table left, Outlet Table right - with Heat Recovery, Detergent & Rinse Aid Dosing Pumps, Drain Pump
Rate now
SKU DSHI1080WD#SET-R
Insertion height: 400mm
Print* net price | gross price incl. 19% VAT.: €3,592.60
Accessories (4)
Product Advantages
- Digital display: Facilitates operation through an intuitive user interface.
- Automatic wash cycle start: Saves time by starting the wash cycle immediately after closing the hood.
- Adjustable rails: Allow flexible loading and unloading options for baskets on all sides.
- Heat recovery: Utilises hot exhaust air to heat the water circuit, thereby reducing electricity consumption.
- 20% energy savings: Lowers operating costs through efficient use of heat recovery.
Description
Product Overview
The pass-through dishwasher is a powerful freestanding unit specifically designed for professional use in the gastronomy sector. With a power consumption of 8.7 kW and integrated heat recovery, it offers an efficient and environmentally friendly cleaning solution. The model features an inlet table on the left and an outlet table on the right, optimally supporting the workflow in the kitchen.Product Details
Equipped with , the machine ensures thorough and hygienic cleaning of crockery and pots. Two wash and two rinse arms rotate continuously and are designed to prevent clogging, ensuring consistently high cleaning performance. The digital display allows user-friendly control of all functions. The body is made of high-quality AISI 304 stainless steel, which is particularly robust and durable. Maximum hygiene is ensured by a double filter system in the wash chamber. The door is equipped with a safety system that makes operation safe and reliable.Conclusion and Areas of Application
This pass-through dishwasher is ideal for use in large kitchens, restaurants, and catering establishments that value efficient, fast, and hygienic cleaning. Thanks to the integrated heat recovery and the electric dosing pumps for detergent and rinse aid, not only is energy saved, but cleaning quality is also optimised. Overall, the unit impresses with its robust construction and well-thought-out features that significantly ease daily kitchen operations.Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The wash programmes work optimally only with a hot water connection.
- ⚠️ Detailed instructions are available in the "Download" section and under "Video".
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Overall dimensions
| Width | 2.620 mm |
|---|---|
| Depth | 820 mm |
| Height | 2.012 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 400 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Wash temperature | 55 °C |
|---|---|
| Rinse temperature | 85 °C |
| Operation | Digital |
Flushing process
| Rinse program 1 | Rinse time 100 at max 36 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 150 at max 24 Baskets/h |
| Rinse program 3 | Rinse time 210 at max 17 Baskets/h |
| Water consumption per run | 3 l |
Capacity
| Tank capacity | 20 l |
|---|---|
| Boiler capacity | 6 l |
Connected load
| Power | 8,70 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 164 kg |
| Net weight | 155 kg |
