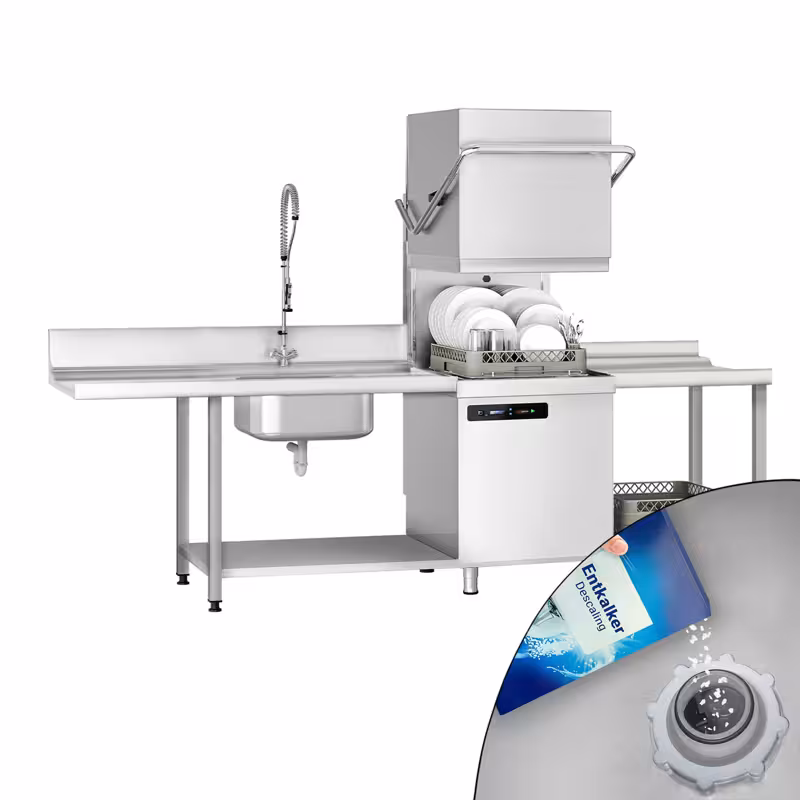

Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump

* The picture may slightly differ from the original.
Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality.
- Automatic wash cycle start: Saves time and increases efficiency by starting automatically after closing the hood.
- Adjustable running rails: Allow flexible loading and unloading options of the baskets from all sides.
- Inlet and outlet tables can be positioned at an angle: Offers versatile installation options for optimal space utilisation.
- Special rinsing system and insulated boiler: Ensure constant temperature and rinse water pressure during operation.
- Integrated descaling system: Eliminates the need for external descaler and reduces maintenance effort.
- Built-in stand-by system: Helps save energy and lowers operating costs.
Description
Efficient Conveyor Dishwasher for Professional Kitchens
The conveyor dishwasher is a powerful appliance specifically designed for use in gastronomy and large-scale kitchens. With a power output of 7.1 kW, it ensures fast and thorough cleaning of crockery and pots. The unit is designed as a freestanding device and features a left-hand inlet table as well as a right-hand outlet table, which optimise workflow and facilitate loading and unloading.
High-Quality Equipment and Thoughtful Technology
The body and tables are made from high-quality AISI 304 stainless steel, ensuring long service life and easy cleaning. The dishwasher is equipped with 2 wash arms and 2 rinse arms that rotate and are non-clogging to guarantee effective cleaning. Additionally, the appliance features a detergent pump, rinse aid pump, and alkali pump, which ensure precise dosing and distribution of cleaning agents. The electromechanical control is maintenance-free and provides reliable operation. An integrated safety system at the door opening ensures user protection.
Conclusion and Areas of Application
This conveyor dishwasher is ideal for professional use in restaurants, canteens, and catering operations. It impresses with its efficient cleaning technology and robust stainless steel construction. Thanks to the well-designed equipment with inlet and outlet tables, the washing process can be optimally integrated into the kitchen workflow. Overall, the appliance offers a reliable and powerful solution for the hygienic processing of crockery and cookware on a large scale.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The washing programmes work optimally only with a hot water connection.
- ⚠️ A detailed manual is available under "Download" and "Video".
Cleaning & Maintenance
- For smooth washing, we recommend regularly descaling the appliance and its components!
- If you have a descaler installed upstream, please note that the cartridge needs to be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free detergents.
Technical data
Overall dimensions
| Width | 2.855 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.480 mm |
| Height open | 1.930 mm |
Dimensions per item
| Dimensions push-through dishwasher W x D x H | 655 mm x 785 mm x 1.480 mm |
|---|---|
| Dimensions of feeder table W x D x H | 1.200 mm x 700 mm x 850 mm |
| Dimensions dish spray W x D x H | 140 mm x 600 mm x 1.070 mm |
| Dimensions discharge table W x D x H | 1.000 mm x 520 mm x 865 mm |
| Basin dimensions W x D x H | 500 mm x 400 mm x 260 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 430 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 405 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 30 l |
|---|---|
| Boiler capacity | 7 l |
Connected load
| Power | 7,10 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 190 kg |
| Net weight | 161 kg |
Download / Exploded drawing
