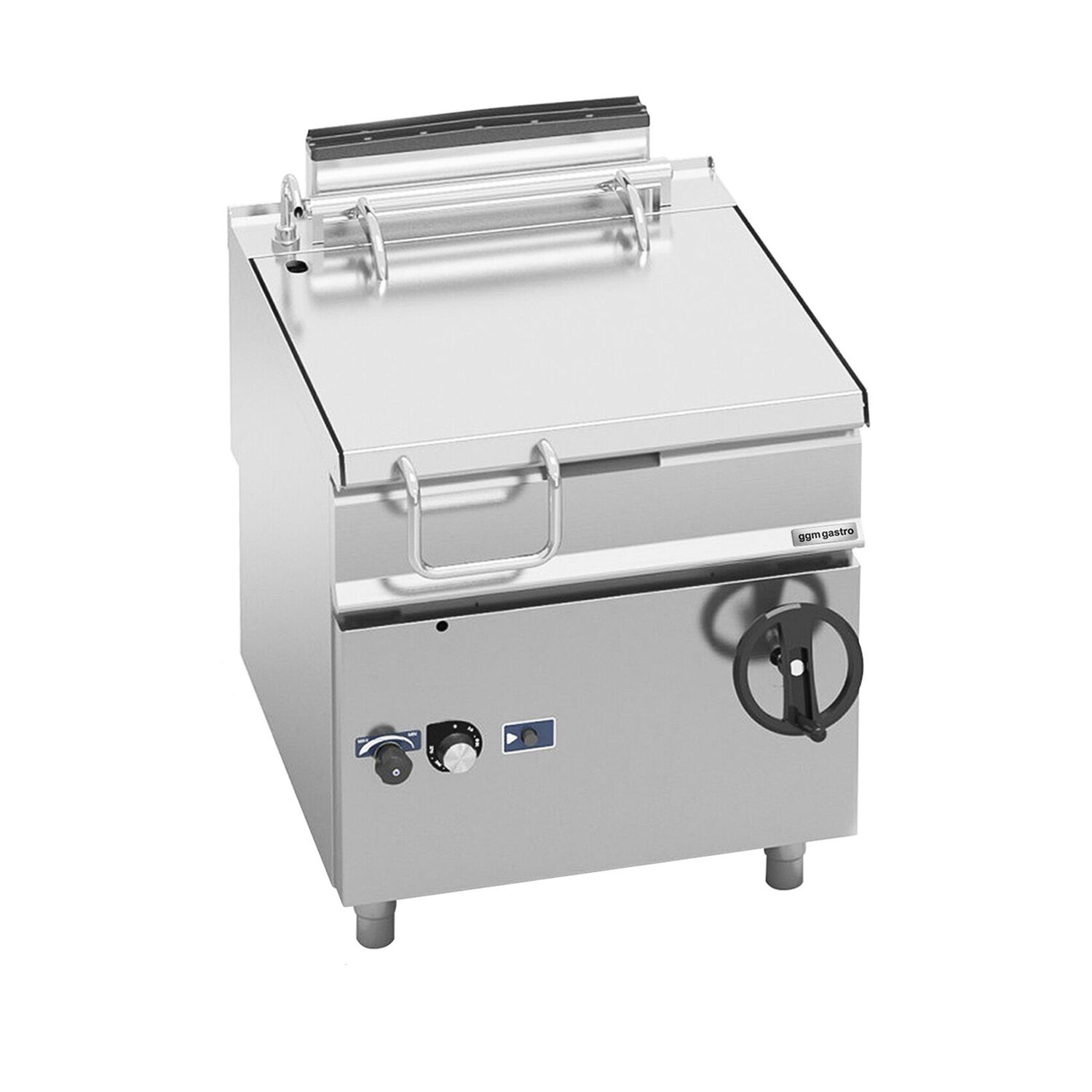

Gas Bratt Pan - 80L - 20kW - Motorised Tilt - with Water Fill Tap
Floor-standing unit - 900 Deep
SKU GKBB891
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €7,414.88
Gas Bratt Pan - 80L - 20kW - Motorised Tilt - with Water Fill Tap
Rate now
SKU GKBB891
Floor-standing unit - 900 Deep
Print* net price | gross price incl. 19% VAT.: €7,414.88
Accessories (1)
Spare Parts (7)
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and durable quality.
- All-rounder: Replaces several appliances and enables a variety of cooking methods such as roasting, braising, boiling, and steaming.
- Mass production expert: Allows the preparation of large quantities in a single batch, saving time and effort.
- Easy pouring: The tilting function facilitates pouring and avoids the heavy lifting of pots.
Description
Product Overview
The gas tilting frying pan with an 80-litre capacity is a high-quality professional appliance specifically designed for the gastronomy and large-scale kitchens. With a power output of 20 kW, it ensures fast and even heat distribution. The tilting function allows for easy emptying and cleaning, significantly simplifying workflow. Thanks to the robust stainless steel body made from AISI 304, the pan is particularly durable and hygienic.Product Details and Features
The pan features a self-balancing hinge with a tilt angle of up to 80°, making handling safe and comfortable. A safety thermoelement monitors the flame and automatically shuts off the gas supply if the flame goes out, guaranteeing maximum safety. The ceramic microbead non-stick coating ensures easy cleaning and prevents food from sticking. Additional practical equipment includes a water tap for filling and rinsing, as well as a high-flow dispensing tap mounted on the work surface.Conclusion and Areas of Application
This gas tilting frying pan is ideal for professional use in large kitchens, canteens, and catering operations. It impresses with its environmentally friendly operation, easy handling, and versatile combination possibilities with other devices from the "Paolo 900" series. The robust construction and well-thought-out safety features make it an indispensable aid for efficient and safe cooking of large quantities. Perfectly suited for frying, steaming, and preparing a wide variety of dishes at a high standard.Installation & Operation
- ⚠️ All gas appliances must be installed by a qualified professional.
- ⚠️ An extraction system is recommended to ensure optimal performance.
Cleaning & Maintenance
- Allow the pan to cool to approximately 50 °C to 60 °C before cleaning to avoid material damage caused by thermal shock.
- Soak crusted residues with warm water. Use only soft sponges, brushes, or plastic scrapers; do not use steel wool or knives.
- After cleaning, thoroughly remove all detergent and cleaning agent residues with clear water to prevent any residue from contaminating food.
- Clean the spout, nozzle, and lid seals particularly thoroughly, as these areas tend to accumulate germs and fat residues.
- Never rinse the appliance with a high-pressure cleaner or a strong water jet to protect the electrical and mechanical components.
- Leave the lid slightly open after cleaning to allow it to dry.
Technical data
Dimensions
| Width | 800 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.058 mm |
| Working height | 900 mm |
Pan dimensions
| Width | 710 mm |
|---|---|
| Depth | 590 mm |
| Height | 225 mm |
Details
| Capacity | 80 l (common) |
|---|---|
| Temperature | 100 °C to 300 °C |
Connected load
| Operating mode | Gas |
|---|---|
| Power | 20 kW |
| Power current | 6 Watt |
| Voltage | 230V |
| Frequency | 50 Hz |
| Phase(s) | 1N/PE |
Average consumption
| Kcal/h | 17196 |
|---|---|
| Btu/h | 68242 |
| Propane gas (G30 / G31) | 1,71 kg/h |
| Natural gas H (G20) | 2,33 m³/h |
| Natural gas L ( G25 ) | 2,71 m³/h |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Weight | 171 kg |
