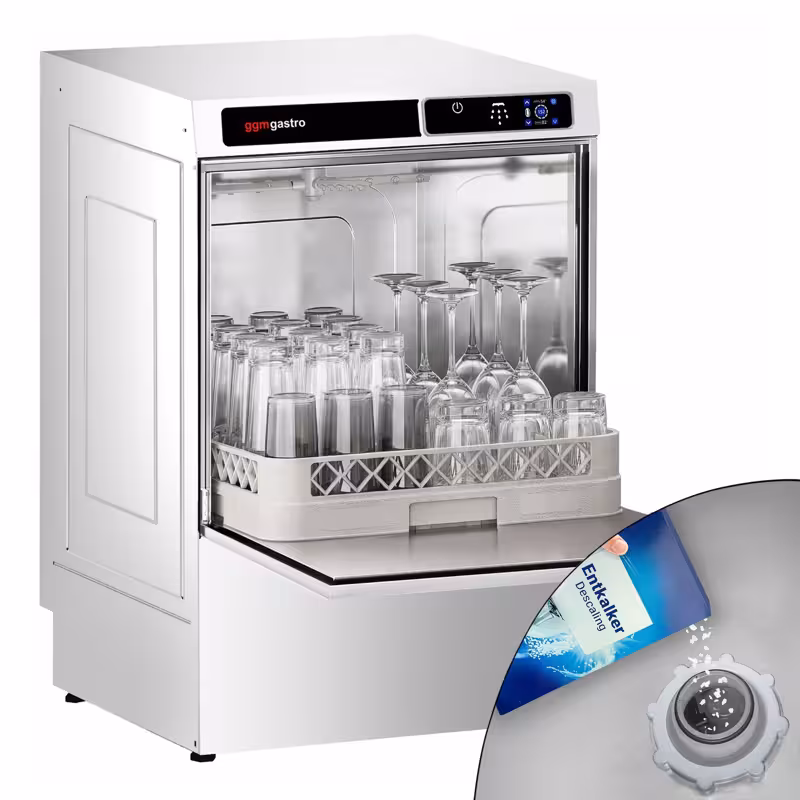

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Intuitive touchscreen operation: Enables easy control and displays the remaining time, enhancing user convenience.
- Double-walled insulation: Significantly reduces noise levels and minimises heat emission from the machine.
- Integrated descaling system: Eliminates the need for external descalers, saving time and effort during maintenance.
- Automatic detergent & rinse aid supply: Ensures optimal dosing and improves cleaning performance.
Description
Product Overview
The double-walled dishwasher is a high-quality undercounter unit specifically designed for professional use. With a power output of 3.6 kW, it delivers strong and efficient cleaning performance. The integrated touch control panel allows for easy and intuitive operation of the machine. Thanks to the built-in water descaler, limescale deposits are prevented, which extends the machine’s lifespan and improves cleaning quality.
Product Details
This dishwasher features 5 different programmes, individually tailored to various levels of soiling. The polypropylene wash arms rotate and do not clog, ensuring even distribution of water and rinse aid. The machine is made from high-quality stainless steel and has a fully sealed housing that meets the water protection standard IPX5. The adjustable feet allow for optimal height adjustment for different installation situations. An integrated safety system ensures safe door opening. The electric detergent dispenser as well as the rinse aid and drain pumps support a smooth and hygienic washing process.
Conclusion and Areas of Application
This dishwasher is perfectly suited for use in gastronomy, canteens, and other commercial kitchens that require reliable and powerful washing technology. The combination of efficient washing performance, easy handling, and robust construction makes it an indispensable aid in everyday operations. Particularly, the integrated pumps and descaler ensure sustainable and hygienic cleaning. Thus, the appliance is ideal for anyone who values cleanliness and efficiency.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ A detailed guide is available under the "Download" and "Video" tabs.
- Use a hot water connection to reduce the heating time.
- The maximum temperature of the hot water must not exceed 50°C.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 610 mm |
|---|---|
| Depth | 645 mm |
| Height | 830 mm |
| Depth with handle | 661 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 335 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
| Water connection | 3/4" inches |
Details
| Wash temperature | 55 °C |
|---|---|
| Rinse temperature | 85 °C |
| Washing pump power | 35 |
| Water consumption per run | 2,80 l |
| Maximum volume | 75 dB |
| Max. Crockery height | 335 mm |
Flushing process
| Rinse program 1 | Rinse time 102 Sekunden at max 35 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 132 Sekunden at max 27 Baskets/h |
| Rinse program 3 | Rinse time 152 at max 23 Baskets/h |
| Rinse program 4 | Rinse time 172 at max 20 Baskets/h |
| Washing program 5 | Washing time 192 seconds, 18 baskets / hour |
Capacity
| Tank capacity | 27 l |
|---|---|
| Boiler capacity | 6 l |
Connected load
| Power | 3,60 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 69 kg |
| Net weight | 65 kg |
Download / Exploded drawing
