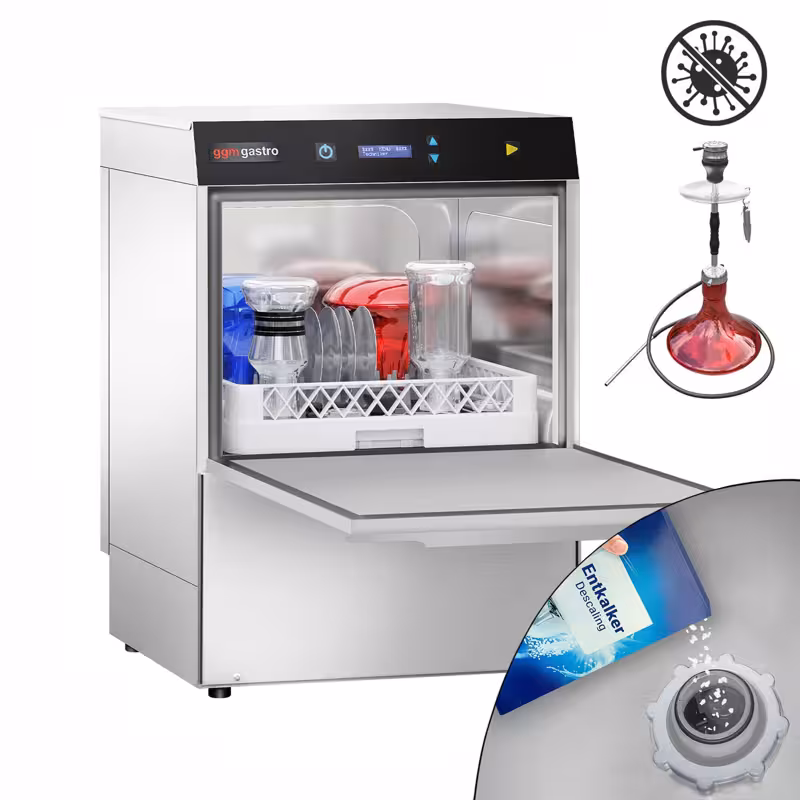

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Signifies high-quality craftsmanship and durable quality.
- Integrated descaling system: Eliminates the need for external descalers, saving effort and costs.
- Double-walled insulation: Significantly reduces noise levels and heat emission for a more pleasant operation.
- High rinse temperature of 90°C: Ensures thorough cleaning and optimal hygiene through effective bacteria removal.
Description
Product Overview
The double-walled SHISHA dishwasher is a powerful under-counter unit specifically designed for cleaning shishas and similar accessories. With an extra-large insertion height, it provides ample space for bulky parts. The electronic control panel with LCD display allows for easy operation of four different programmes, making handling particularly convenient.
Product Details
The machine features a special washing chamber optimally tailored to the requirements of shisha cleaning. Thanks to the high-quality stainless steel construction, the unit is especially robust and durable. The combination of detergent, rinse aid, and alkali pumps ensures thorough and efficient cleaning. The dual filter system in the wash compartment along with rotating, non-clogging wash and rinse arms guarantee excellent cleaning results. An integrated safety system for door opening further enhances user comfort and safety in daily operation.
Conclusion and Areas of Application
The SHISHA dishwasher is the ideal solution for those seeking efficient and gentle cleaning of shishas and related equipment. It is particularly suitable for use in shisha bars, hospitality establishments, and professional cleaning services. With its high washing performance and robust construction, it impresses with longevity and reliability. This makes cleaning not only easier but also hygienically impeccable.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating manual.
- ⚠️ The diameter of the hookah neck should ideally be between 26 mm and 36 mm.
- ⚠️ A cold water connection is required for this device.
Cleaning & Maintenance
- For smooth washing, the appliance and components should be descaled using the connected descaler!
- If you have a descaler installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 405 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Sound level | 62 dB |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 120 Sekunden Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 4,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 68 kg |
| Net weight | 65 kg |
Download / Exploded drawing
