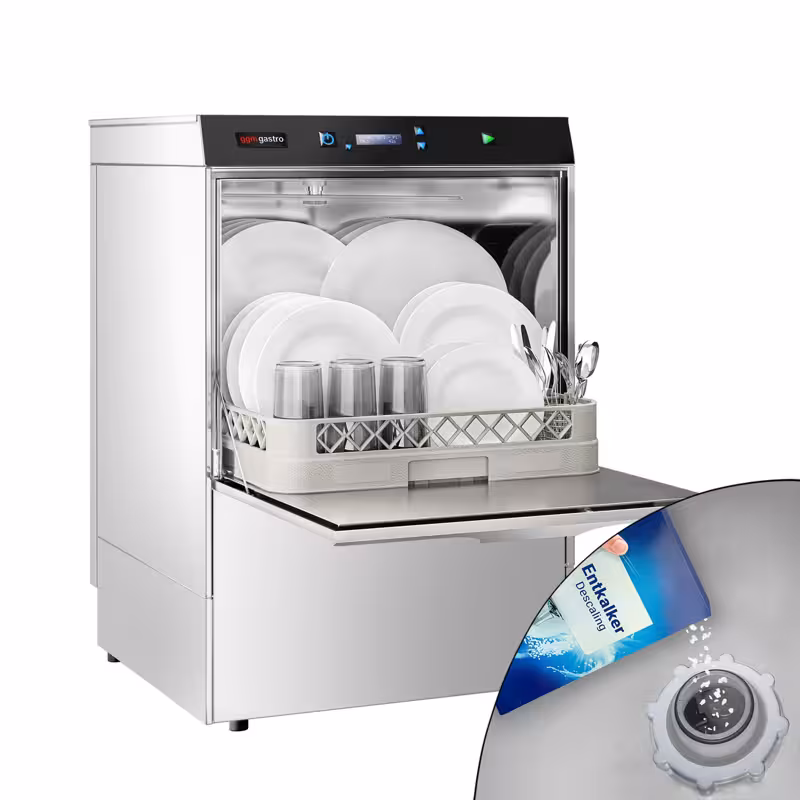

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
* The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and quality from Italy.
- Integrated descaling system: No external descaler required, which reduces maintenance effort.
- Double-walled insulated walls: Significantly lower noise levels and effectively reduce heat emission.
Description
Product Overview
The double-walled dishwasher is a robust undercounter unit specially designed for professional use. With a power consumption of 3.9 kW, it offers powerful and efficient cleaning. The electronic control panel with LCD display allows for easy and intuitive operation of the machine. This model is ideal for the catering industry, large kitchens, and other areas with high dishwashing volumes.
Product Details
The machine features two wash arms with rotating, non-clogging wash and rinse arms that ensure excellent cleaning results. A double filter system in the wash chamber guarantees hygienic and thorough cleaning. The electric dosing pump for rinse aid and detergent ensures precise and automatic supply of cleaning agents. The door opening is equipped with a safety system that makes operation safer. In total, four programmes are available, flexibly adapted to different levels of soiling.
Conclusion and Areas of Application
This dishwasher impresses with its high washing performance and easy operation. It is ideally suited for use in restaurants, canteens, and catering businesses where reliable and fast dishwashing is required. Thanks to the high-quality stainless steel housing, the appliance is particularly durable and resistant to the daily demands of the catering industry.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ This appliance requires a cold water connection.
- ⚠️ A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For smooth rinsing, the device and components should be descaled with the connected descaler!
- If you have installed a pre-filter descaler, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Forwarding agent |
|---|---|
| Delivered as | Mounted |
| Weight | 64 kg |
Download / Exploded drawing
