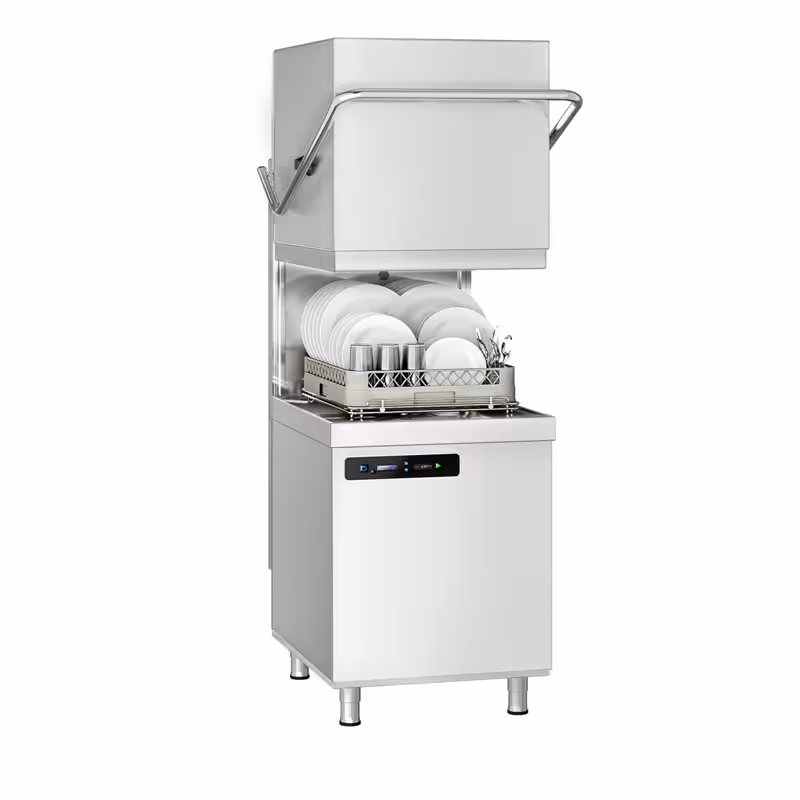

Double-Skinned Pass Through Dishwasher - Digital Controls - 7.1kW - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
Insertion height: 430mm
SKU DS430L
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €3,612.83
Double-Skinned Pass Through Dishwasher - Digital Controls - 7.1kW - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
SKU DS430L
Insertion height: 430mm
Print* net price | gross price incl. 19% VAT.: €3,612.83
Accessories (6)
Spare Parts (35)
Product Advantages
- Made in Italy: Represents high-quality workmanship and quality, which increases the machine’s reliability.
- Automatic wash cycle start: The wash cycle begins automatically after closing the hood, enhancing user convenience and efficiency.
- Adjustable sliding rails: Allow flexible loading and unloading of baskets from all sides, facilitating handling.
- Double-walled insulation: Reduces noise levels and heat emission, creating a more comfortable working environment.
- Special rinse system with insulated boiler: Maintains constant temperature and rinse water pressure, ensuring consistently excellent cleaning results.
- Integrated descaling system: Eliminates the need for external descalers, simplifying maintenance and operation.
- Stand-by system: Saves energy during idle periods, reducing operating costs and being more environmentally friendly.
- Electronic temperature control: Provides precise control of the rinse temperature, improving efficiency and cleaning performance.
Description
Efficient Pass-Through Dishwasher for Professional Kitchens
The double-walled pass-through dishwasher has been specially designed for the demanding gastronomy sector. With a power output of 7.1 kW, it guarantees powerful and rapid cleaning of dishes and pots. The digital display ensures intuitive and user-friendly operation, allowing the washing process to be easily monitored and controlled. Thanks to the robust body made of AISI 304 stainless steel, the machine is particularly durable and hygienic.Technical Details and Innovative Features
The machine features two wash arms and two rinse arms that rotate and are non-clogging to ensure even and thorough cleaning. The double filter system in the wash chamber provides clean water and protects the technology from contamination. The integrated detergent, rinse aid, and alkali pumps enable precise dosing of cleaning agents, increasing efficiency and reducing consumption. The door opening is equipped with a safety system that makes operation safer. The electromechanical control is maintenance-free, minimising upkeep efforts.Conclusion and Areas of Application
This pass-through dishwasher is ideal for use in large kitchens, canteens, and catering businesses that require fast and reliable cleaning of large quantities of dishes and cookware. It impresses with its robust construction, simple operation, and high cleaning performance. With its combination of powerful pumps and digital control, it is the perfect solution for professional users who value efficiency and hygiene. The machine optimises the washing process and delivers spotless results in a short time.Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ A cold water connection is required for this appliance.
- ⚠️ A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- Suitable exclusively for chlorine-free cleaners.
- For flawless operation, it is recommended to descale the device regularly.
- If a descaler is installed upstream, the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The maximum flow rate depends on the water hardness.
Technical data
Overall dimensions
| Width | 655 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.500 mm |
| Height open | 1.950 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 430 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 405 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 30 l |
|---|---|
| Boiler capacity | 9 l |
Connected load
| Power | 7,10 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 129 kg |
| Net weight | 120 kg |
Download / Exploded drawing
Download / Exploded drawing
Download / Exploded drawing
