Double-skinned Compact Glasswasher - Manual - 2.77kW - with Drain Pump, Rinse Aid Pump

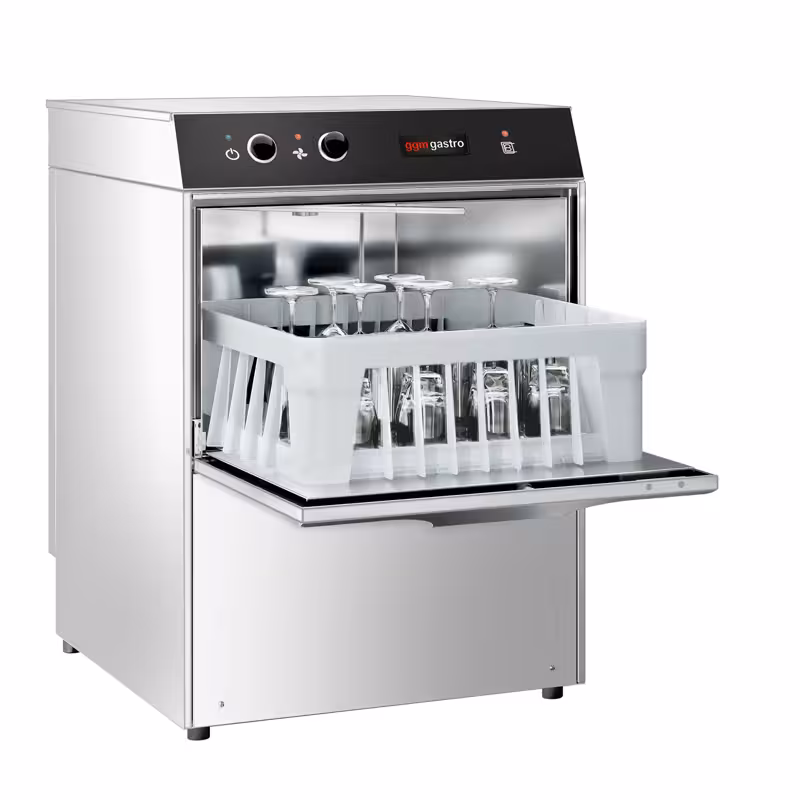

* The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Manual - 2.77kW - with Drain Pump, Rinse Aid Pump
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality.
- Reduced noise level: The double-walled insulation ensures a significantly quieter working environment.
- Efficient thermal insulation: Minimises heat emission and increases energy efficiency.
- High washing performance: Guarantees excellent cleaning results for optimal hygiene.
Description
Product Overview
The double-walled mini glasswasher is a particularly compact and robust appliance specifically designed for professional use in gastronomy and bars. With a power output of 2.77 kW, it provides efficient cleaning of glasses and ensures hygienically impeccable results. The manual operation concept makes the machine easy to handle and ideal for small to medium washing volumes.
Product Details
The glasswasher features a double-walled construction that ensures optimal insulation and noise reduction. Equipped with a drain pump, the wastewater is reliably pumped over a height difference into the sewage connection. Additionally, the appliance has a rinse aid pump with hydraulic dosing, which guarantees streak-free glasses. The door opening is fitted with a safety system that enhances user comfort and safety. Inside the washing chamber, 2 rinse arms at the top and bottom as well as a wash arm ensure thorough and even cleaning. The housing, made from high-quality stainless steel, guarantees durability and easy cleaning.
Conclusion and Areas of Application
This mini glasswasher is perfectly suited for use in smaller catering establishments, bars or cafés where space and efficiency are crucial. It impresses with its compact design and robust workmanship, which ensures a long service life. Thanks to the powerful pumps and the well-thought-out washing technology, glasses are cleaned quickly and thoroughly. It is ideal for anyone seeking a reliable and space-saving solution for glasswashing.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating manual.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The washing programmes work optimally only with a hot water connection.
- ⚠️ A detailed manual is available under "Download" and "Video".
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners.
Technical data
Dimensions
| Width | 423 mm |
|---|---|
| Depth | 466 mm |
| Height | 589 mm |
Basket dimensions
| Width | 350 mm |
|---|---|
| Depth | 350 mm |
Rack height
| Height | 220 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Rinsing time | 120.00 s |
|---|---|
| Baskets / hour | 30 |
| Max. Glass height | 205 mm |
| Inlet water temperature | 55 °C |
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
Capacity
| Tank capacity | 11 l |
|---|
Connected load
| Power | 2,77 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 32 kg |
| Net weight | 26 kg |
Download / Exploded drawing
