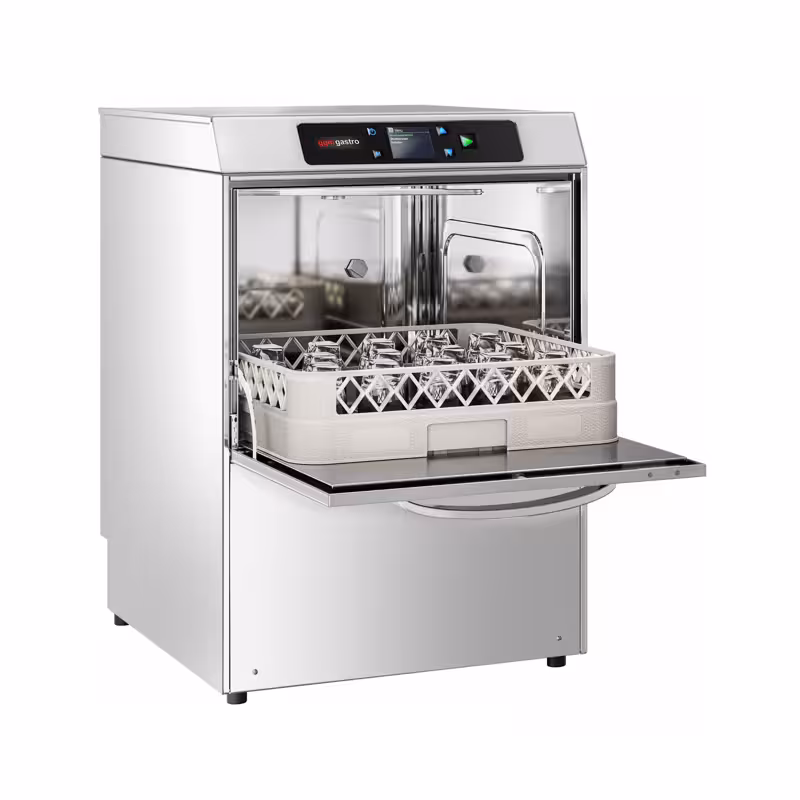

Double-skinned Compact Glasswasher - Digital - 3.4kW - with Drain Pump, Detergent & Rinse Aid Pumps & Wi-Fi Option

* The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Digital - 3.4kW - with Drain Pump, Detergent & Rinse Aid Pumps & Wi-Fi Option
Product Advantages
- Made in Italy: High manufacturing quality ensures durability and reliability of the dishwasher.
- Wi-Fi system: Allows sending text messages in case of anomalies and permits remote adjustments, facilitating maintenance.
- Electronic control with TFT colour display: Clear indication of temperatures, washing phases, and faults ensures easy operation and monitoring.
- Four adjustable wash cycles: Flexibility in cleaning different types of crockery increases efficiency.
- HY-NRG washing system with break tank and pressure booster pump: Maintains constant temperature and wash water pressure for optimal washing results.
- Double-walled insulation: Reduces noise level and heat radiation, making operation more comfortable and energy-efficient.
Description
Product Overview
The double-walled glasswasher is a high-quality undercounter unit specifically designed for the professional cleaning of glassware. With a power output of 3.4 kW, it offers efficient washing cycles with low energy consumption. Particularly noteworthy is the double-walled construction, which provides optimal thermal insulation and thus saves energy. The integrated Wi-Fi system allows convenient remote control and monitoring of the machine.
Product Details
The glasswasher features a double-walled body made of high-quality AISI 304 stainless steel, ensuring durability and robustness. The tank and door are also made from this premium material, facilitating hygiene and easy cleaning. The washing chamber is equipped with a dual filter system that ensures effective removal of dirt particles. For thorough cleaning, there is a washing arm and two stainless steel rinse arms that operate with rotation and are clog-resistant. The machine offers four different programmes to optimally handle varying degrees of soiling.
Conclusion and Areas of Application
This glasswasher is ideal for use in gastronomy, bars, and cafés, where fast and hygienic glass cleaning is essential. Thanks to its energy-saving technology and stand-by mode, it sustainably reduces operating costs. The combination of robust stainless steel, intelligent control, and powerful pump technology makes it a reliable partner in the professional sector. Perfectly suited for all who value quality, efficiency, and comfort.
Installation & Operation
- ⚠️ The WI-FI module stores HACCP parameters such as cycles, temperatures, and alarms.
- ⚠️ These parameters can be accessed via smartphone proximity connection or website.
- ⚠️ Information on mains voltage is included in the operating manual.
- ⚠️ A cold water connection is required for the device.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge needs to be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Only suitable for chlorine-free cleaners.
Technical data
Dimensions
| Width | 473 mm |
|---|---|
| Depth | 539 mm |
| Height | 700 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 290 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Sound level | 58 dB |
| Max. Glass height | 280 mm |
Flushing process
| Water consumption per run | 2,20 l |
|---|---|
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
Capacity
| Tank capacity | 6 l |
|---|
Connected load
| Power | 3,40 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 47 kg |
| Net weight | 39 kg |
Download / Exploded drawing
Safety and disposal instructions
