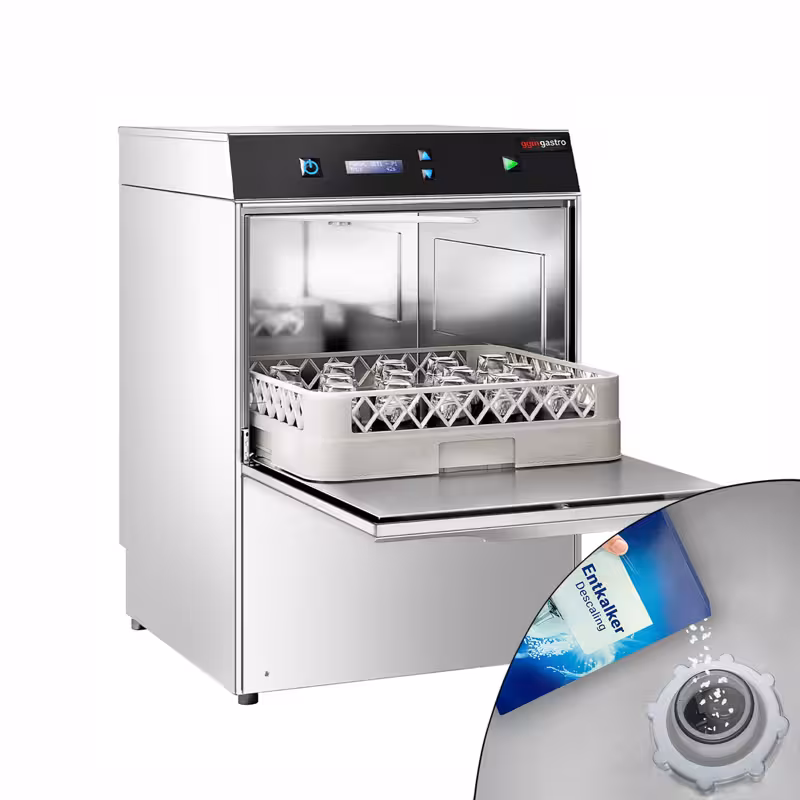

Double-skinned Compact Glasswasher - Digital - 2.97kW - with Integrated Water Softener - with Drain Pump, Detergent & Rinse Aid Pumps
* The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Digital - 2.97kW - with Integrated Water Softener - with Drain Pump, Detergent & Rinse Aid Pumps
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and durable quality.
- Integrated descaling system: Eliminates the need for an external descaler and ensures easy maintenance.
- Double-walled insulation: Significantly reduces noise levels and minimises the machine’s heat emission.
- High rinsing performance: Guarantees excellent cleaning results with every rinse cycle.
Description
Product Overview
The double-walled glasswasher is a powerful undercounter appliance specially designed for the professional cleaning of glassware. With a rated power of 2.97 kW, it ensures fast and thorough cleaning in gastronomy, bars, or cafés. The appliance is equipped with a built-in water softener that effectively prevents limescale deposits, thereby extending the machine's lifespan.
Product Details
This dishwasher features a detergent, rinse aid, and caustic pumps that ensure optimal dosing and distribution of cleaning agents. The wash chamber is equipped with a dual filtration system that reliably retains coarse dirt. The rotating, non-clogging wash and rinse arms guarantee even and effective cleaning from above and below. Operation is conveniently controlled via a digital display with four programmes covering various cleaning requirements. Additionally, the door opening with safety system ensures safe and user-friendly operation.
Conclusion and Areas of Application
This glasswasher impresses with its robust stainless steel construction and maintenance-free electromechanical control, enabling long and reliable use. It is ideally suited for use in gastronomy, bars, hotels, or anywhere efficient and hygienic cleaning of glassware is required. Thanks to the hydraulic rinse aid dosing system and the ability to pump wastewater over height differences, it is also flexible in installation.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ This appliance requires a cold water connection.
- ⚠️ A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For smooth rinsing, the device and components should be descaled with the connected descaler!
- If you have installed a descaler beforehand, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 473 mm |
|---|---|
| Depth | 513 mm |
| Height | 689 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 315 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Glass height | 300 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
Capacity
| Tank capacity | 14 l |
|---|
Connected load
| Power | 2,97 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 45 kg |
| Net weight | 40 kg |
Download / Exploded drawing
