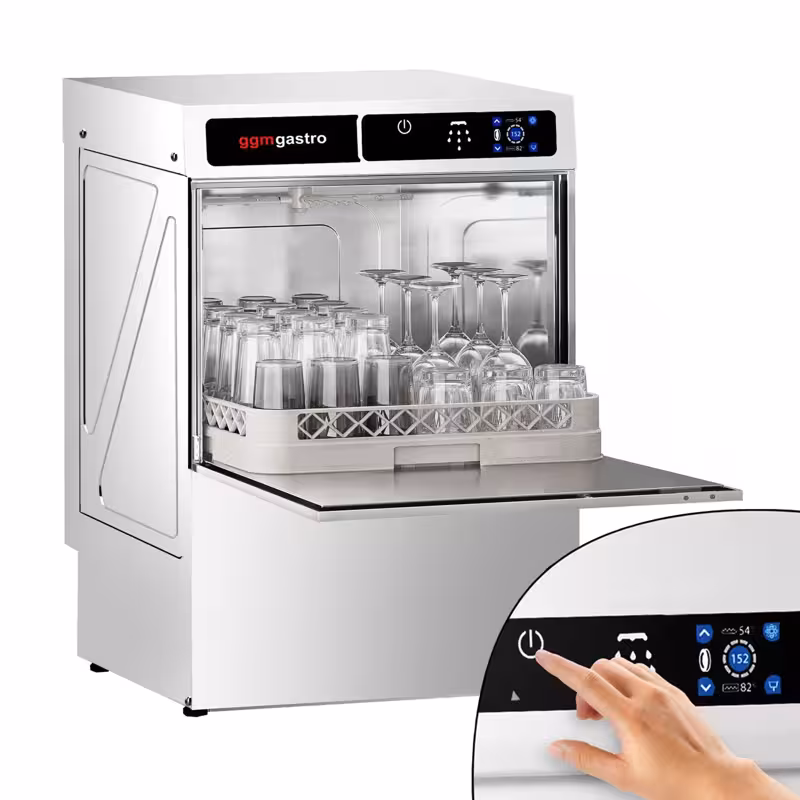

Compact Glasswasher - Touchscreen - 3.3kW - with Drain Pump, Detergent & Rinse Aid Pumps

* The picture may slightly differ from the original.
Compact Glasswasher - Touchscreen - 3.3kW - with Drain Pump, Detergent & Rinse Aid Pumps
Product Advantages
- Intuitive touchscreen operation: Enables simple and comfortable control with remaining time display, making operation efficient and clear.
- Automatic detergent & rinse aid supply: Ensures consistently optimal dosing of cleaning agents, improving cleaning quality and reducing effort.
- High washing performance: With 500 glasses per hour, fast and effective cleaning is guaranteed, increasing productivity.
Description
Product Overview
The glasswasher with touch control is a powerful solution for the professional cleaning of glasses in the gastronomy and catering sectors. With a power consumption of 3.30 kW, it ensures fast and thorough cleaning. The appliance is designed as an under-counter unit, fitting space-efficiently into any working environment. The simple operation via the touch display makes usage intuitive and efficient.
Product Details and Features
The machine features a detergent, rinse aid, and alkali pump that ensures optimal washing results. The polypropylene wash chamber is particularly gentle and durable. Three selectable programmes allow adaptation to different levels of soiling and types of crockery. The digitally controlled rinse and wash temperature guarantees efficient washing and protects the glasses. An integrated safety system automatically stops the washing process when the door is opened and resumes it after closing. The adjustable feet allow individual height adjustment to perfectly fit the machine into any working environment.
Conclusion and Areas of Application
This glasswasher is ideal for professional use in bars, restaurants, and catering businesses that value fast and hygienic cleaning. Thanks to the robust stainless steel construction and the fully sealed housing with IPX5 water protection, it is particularly durable and reliable. It impresses with easy operation, flexible programmes, and efficient water and energy use. Perfectly suited for anyone seeking a powerful and user-friendly solution for glasswashing.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ A detailed guide is available under "Download" as well as "Video".
- Use a hot water connection to reduce the heating time.
- The maximum temperature of the hot water must not exceed 50°C.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 425 mm |
|---|---|
| Depth | 465 mm |
| Height | 630 mm |
Basket dimensions
| Width | 350 mm |
|---|---|
| Depth | 350 mm |
Rack height
| Height | 225 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | R 3/4 |
Details
| Operation | Touchscreen |
|---|---|
| Max. Crockery height | 225 mm |
| Capacity | 500 Gläser/Stunde |
| Washing pump power | 270 Watt |
| Maximum volume | 70 dB |
Flushing process
| Washing temperature | 55 - 60 °C |
|---|---|
| Purge temperature | 80 °C - 85 °C |
| Washing program 1 | Washing time 115 seconds, 31 baskets / hour |
| Washing program 2 | Washing time 135 seconds, 26 baskets / hour |
| Washing program 3 | Washing time 175 seconds, 20 baskets / hour |
| Water consumption per run | 2,50 l |
Capacity
| Tank capacity | 9,20 l |
|---|---|
| Boiler capacity | 2,80 l |
Connected load
| Power | 3,30 kW |
|---|---|
| Voltage | 220 - 240 Volt |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 33 kg |
| Net weight | 30 kg |
Download / Exploded drawing
