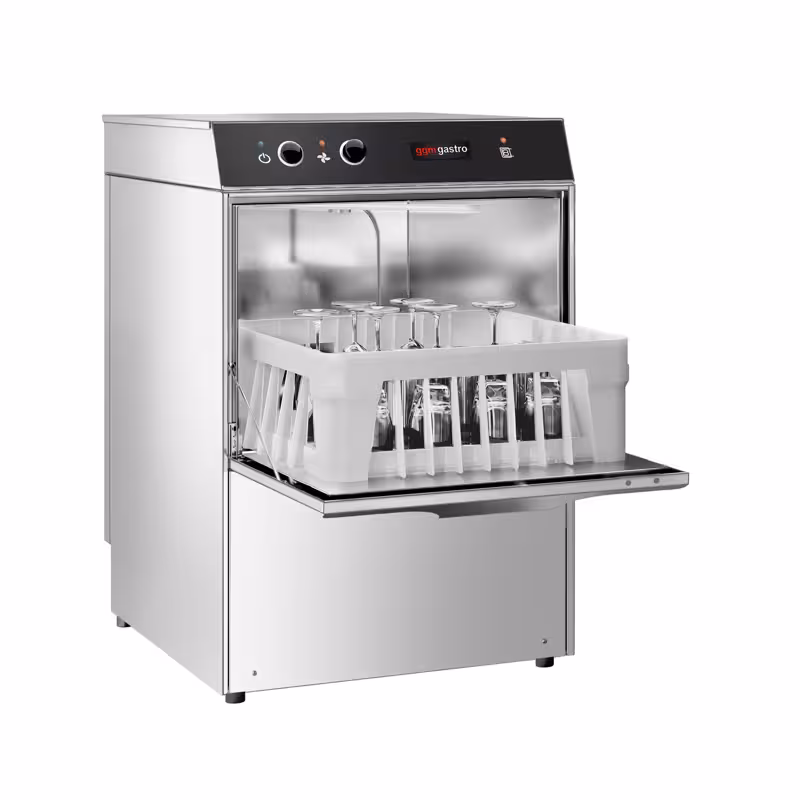

Compact Glasswasher - Manual - 2.97kW - with Drain Pump, Detergent & Rinse Aid Pumps

* The picture may slightly differ from the original.
Compact Glasswasher - Manual - 2.97kW - with Drain Pump, Detergent & Rinse Aid Pumps
Description
Efficient Glasswasher for Professional Use
The manual glasswasher with 2.97 kW power is specially designed for the fast and thorough cleaning of glasses. This robust undercounter unit made of high-quality stainless steel impresses with its high washing performance and excellent cleaning results. Thanks to the single-walled construction and maintenance-free electromechanical control, operation is particularly simple and reliable.
Technical Details and Innovative Features
The machine features a wash arm for effective cleaning and two rinse arms, which operate rotating and non-clogging. With integrated detergent and rinse aid pumps as well as a detergent dispenser, optimal dosing is ensured. The wash chamber is equipped with a dual filtration system that improves water quality and extends the pump’s lifespan. The alkali pump ensures that wastewater is reliably pumped into the drain connection even over height differences. The door opening is fitted with a safety system that enhances user comfort and safety.
Conclusion and Areas of Application
This glasswasher is ideal for catering establishments, bars, and cafés that value fast, hygienic, and gentle cleaning. It scores with its robust construction and easy handling, making it perfect for intensive daily use. With its powerful performance and well-thought-out functions, it offers an efficient solution for professional glass cleaning.
Installation & Operation
- ⚠️ Information on the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The values of the wash programmes are only guaranteed with a hot water connection.
- Please check the mains voltage before installation.
- Connect the appliance to the desired water supply.
- Preferably use the hot water connection for optimal wash results.
- Follow the detailed instructions in the download section.
- Watch the instruction video for operation.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 465 mm |
|---|---|
| Depth | 510 mm |
| Height | 695 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 320 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Max. Glass height | 305 mm |
|---|
Flushing process
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Rinsing time | 120.00 s |
| Baskets / hour | 30 |
| Water consumption per run | 2,40 l |
Capacity
| Tank capacity | 12 l |
|---|
Connected load
| Power | 2,97 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 38 kg |
| Net weight | 30 kg |
Download / Exploded drawing
