Commercial Remote Split System Refrigeration Pack - max. for 7.5 m³ - IP rating IP 51 - 559W
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Save 5% with the GGM Gastro App – exclusive until November 30.
With code APP-05 you save €106.50 on this item.
Open in appCommercial Remote Split System Refrigeration Pack - max. for 7.5 m³ - IP rating IP 51 - 559W
Save 5% with the GGM Gastro App – exclusive until November 30.
With code APP-05 in the app you pay €106.50 less for this item.

Product Advantages
- Less heat and noise inside: By mounting the evaporator unit and condenser unit separately, the heat and noise from the condenser unit are shifted outside.
- Usable even with low ceiling height: Compared to ceiling units, less space is required above the cold room for ventilation.
- More usable space for storage shelves: Compared to wall units, there is more space inside for the installation of shelves.
Description

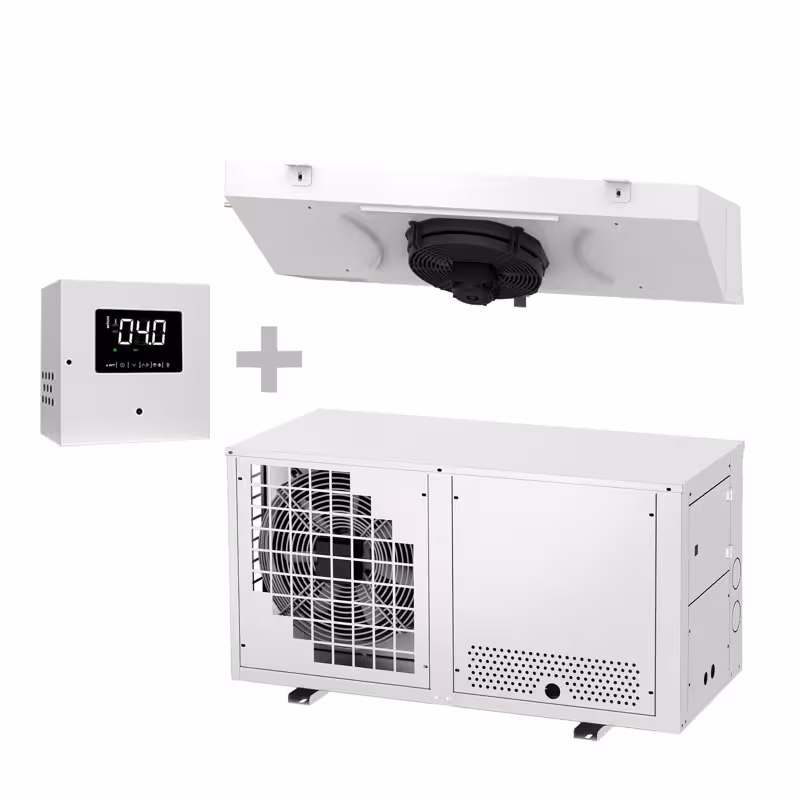

- Split refrigeration unit consisting of 1 outdoor unit, 1 indoor unit & control panel
- For a maximum 7.5m³ cold room
- Temperature range: 0 °C to +8 °C
- Digital EVCO display
- Evaporator as aluminium finned heat exchanger
- Including door contact switch & cold room lighting
Space-saving for cold rooms
The split refrigeration unit is designed for walk-in cold rooms in gastronomy, large kitchens, and food businesses. The evaporator and outdoor unit are arranged separately, so that heat and noise from the compressor are directed outside or into a technical room. This ensures a quieter working environment and simultaneously supports the energy efficiency of the device. The flat evaporator is mounted space-savingly on the ceiling, thus allowing more room for storage. Thanks to the flexible installation, the system is also suitable for rooms with low ceilings or limited ventilation. The integrated digital thermostat allows easy and precise adjustment of the desired temperature.
Installation & Operation
- ⚠️ A qualified refrigeration technician is required to extend the supplied refrigerant lines and to refill the refrigerant.
- Despite the IP 51 protection, we recommend installation indoors or in a weather-protected, covered outdoor area.
Cleaning & Maintenance
- We recommend regularly checking the evaporator for dirt and frost build-up and carefully cleaning it if necessary. This ensures optimal air circulation and reliable cooling performance.
- For the condenser unit, care should be taken to ensure that the ventilation slots are not blocked, to guarantee optimal heat dissipation and efficient operation.
Technical data
Dimensions
| Evaporator dimensions | 950 x 715 x 250 mm |
|---|---|
| Capacitor Dimensions | 960 x 509 x 450 mm |
| Tube length | 5.000 mm |
Specifications
| Outer material | Stainless Steel AISI 430 |
|---|---|
| Pipe material | Copper |
| Operation | Digital |
| IP protection class | IP51 - Protected against dust in harmful quantities & protected against vertically falling water droplets |
Cooling
| Max. cooling capacity | 7.5 m³ |
|---|---|
| Temperature from: | 0 °C |
| Temperature to: | 8 °C |
| Ambient temperature up to | 38 °C |
| Refrigerant Type | R452a |
| Refrigerant Quantity | 0.65 kg |
Connected loads
| Power | 559 Watt |
|---|---|
| Power Connection | 230V |
| Phase | 3N~/PE |
Shipping
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Not Mounted |
| Gross Weight | 120 kg |
| Net Weight | 100 kg |
Download / Exploded drawing
Safety and disposal instructions
