Commercial Remote Split System Freezer Pack - max. for 7.5 m³ - IP rating IP 51 - 249W
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Save 5% with the GGM Gastro App – exclusive until November 30.
With code APP-05 you save €105.50 on this item.
Open in appCommercial Remote Split System Freezer Pack - max. for 7.5 m³ - IP rating IP 51 - 249W
Save 5% with the GGM Gastro App – exclusive until November 30.
With code APP-05 in the app you pay €105.50 less for this item.

Product Advantages
- Relocating heat and noise externally: By separately installing the evaporator unit and the condenser unit, the heat and noise from the condenser unit are moved outside.
- Usable even with low ceiling height: Compared to ceiling units, the split unit requires less space above the cold room for ventilation.
- More space for storage shelves: Compared to wall units, more space remains inside for the installation of storage shelves.
Description

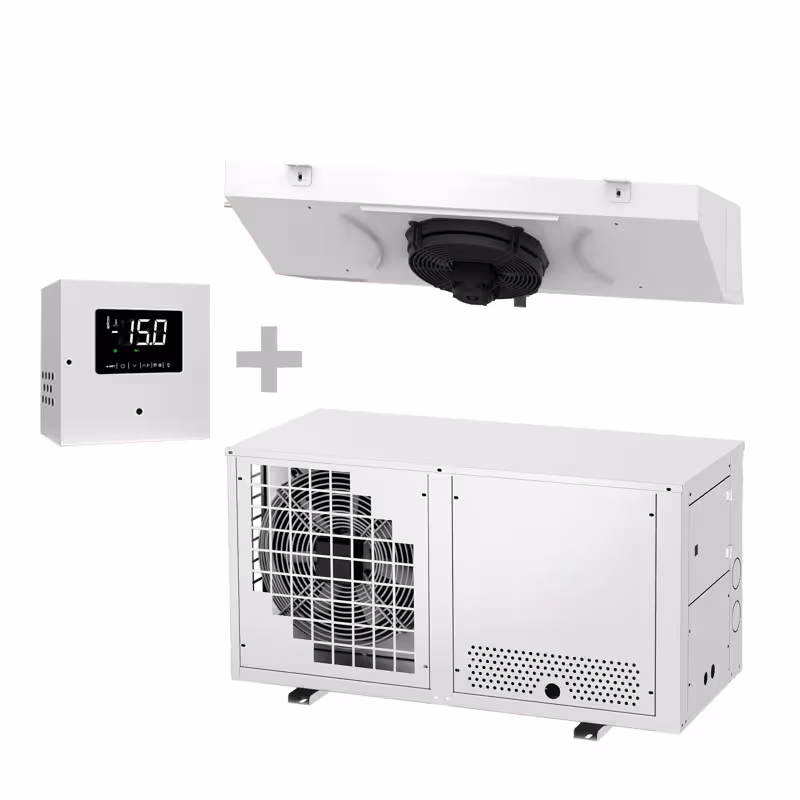

- Split freezer unit consisting of 1 outdoor unit, 1 indoor unit & control panel
- For a maximum of 7.5m³ cold storage room
- Temperature range: -20 °C to 0 °C
- Digital EVCO display
- Evaporator as aluminium finned heat exchanger
- Including door contact switch & cold room light
Flexible cooling for freezers
Split freezer units are a practical solution for walk-in freezers in gastronomy, large kitchens and food businesses. They keep fresh food reliably at the correct temperature. The evaporator and outdoor unit are arranged separately. This directs heat and compressor noise outside or into a technical room, supporting a more pleasant and quieter working environment. The flat evaporator is space-savingly mounted on the ceiling, thus creating more room for storage. The system can also be flexibly installed and is suitable for rooms with low ceilings or limited ventilation. An integrated digital thermostat allows easy and precise temperature control.
Installation & Operation
- ⚠️ An experienced refrigeration technician is required for extending the supplied refrigeration lines and for refilling the refrigerant.
- Despite the IP51 protection, we recommend installation indoors or in a weather-protected, covered outdoor area.
Cleaning & Maintenance
- We recommend regularly checking the evaporator for dirt and frost build-up and carefully cleaning it if necessary. This ensures optimal air circulation and reliable cooling performance are maintained.
- For the condenser unit, care should be taken to ensure that the ventilation slots are not blocked, to guarantee optimal heat dissipation and efficient operation.
Technical data
Dimensions
| Evaporator dimensions | 950 x 715 x 250 mm |
|---|---|
| Capacitor Dimensions | 960 x 509 x 450 mm |
| Tube length | 5.000 mm |
Specifications
| Outer material | Stainless Steel AISI 430 |
|---|---|
| Pipe material | Copper |
| Operation | Digital |
| IP protection class | IP51 - Protected against dust in harmful quantities & protected against vertically falling water droplets |
Cooling
| Max. cooling capacity | 7.5 m³ |
|---|---|
| Temperature from: | -22 °C |
| Temperature to: | 0 °C |
| Ambient temperature up to | 38 °C |
| Method of Defrosting | Automatic |
| Refrigerant Type | R452 |
| Refrigerant Quantity | 1 kg |
Connected loads
| Power | 249 Watt |
|---|---|
| Power Connection | 230V |
| Phase | 3N~/PE |
Shipping
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Not Mounted |
| Gross Weight | 126 kg |
| Net Weight | 91 kg |
Download / Exploded drawing
