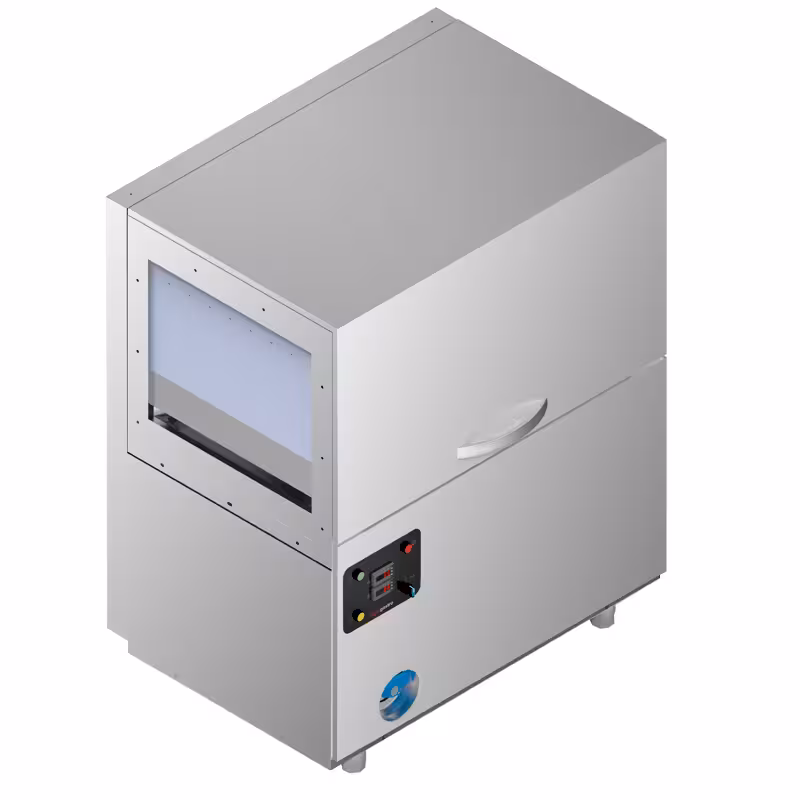

Commercial Conveyor Dishwasher - Digital - 11.25kW - with Integral Detergent & Rinse Aid Pumps
* The picture may slightly differ from the original.
Commercial Conveyor Dishwasher - Digital - 11.25kW - with Integral Detergent & Rinse Aid Pumps
Description
Product Overview
The rack conveyor dishwasher is specially designed for professional use in large-scale kitchens and catering establishments. With a power output of 11.25 kW, it offers an efficient and powerful cleaning solution for racks measuring 500 mm x 500 mm. The machine impresses with a digital control panel that allows for simple and intuitive operation, enabling quick and straightforward commissioning.
Product Details
The rack conveyor dishwasher features a insertion height of 440 mm and a maximum dish height of 415 mm, making it ideal for dishes of varying sizes. The integrated detergent and rinse aid dosing pump ensures optimal dosing and thus perfect washing results. Three upper and three lower wash arms with anti-drip nozzles guarantee targeted and effective cleaning. The centrally guided drive system made of stainless steel ensures durability and high hygiene standards. Additionally, removable wash arms and filters, as well as smooth walls and rounded edges, facilitate easy cleaning and maximum hygiene.
Conclusion and Areas of Application
This rack conveyor dishwasher is the ideal solution for large quantities of dishes in gastronomy, hospitality, and communal catering. It combines a robust construction made from high-quality stainless steel with high functionality and hygiene. Thanks to the well-designed filter and wash tank systems, maintenance is quick and uncomplicated. Perfectly suited for continuous and intensive use, it convinces with efficiency and reliability in professional dishwashing.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot water or cold water connection.
- ⚠️ The values of the wash programmes are only guaranteed with a hot water connection.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 1.147 mm |
|---|---|
| Depth | 853 mm |
| Height | 1.430 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 440 mm |
|---|---|
| Maximum dish height | 415 mm |
Details
| Flush tank volume | 80 lt |
|---|---|
| Boiler volume | 9 lt |
| Flushing water consumption | 113 lt/h |
| Pump power | 1,3 kW |
| Tank heating element | 9 kW |
| Boiler heating element | 6 kW |
| Inlet water temperature | 15 °C |
| Noise level | 72 dB |
| Max. Crockery height | 415 mm |
Connected load
| Power | 11,25 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 143 kg |
| Net weight | 143 kg |
Download / Exploded drawing
Safety and disposal instructions
