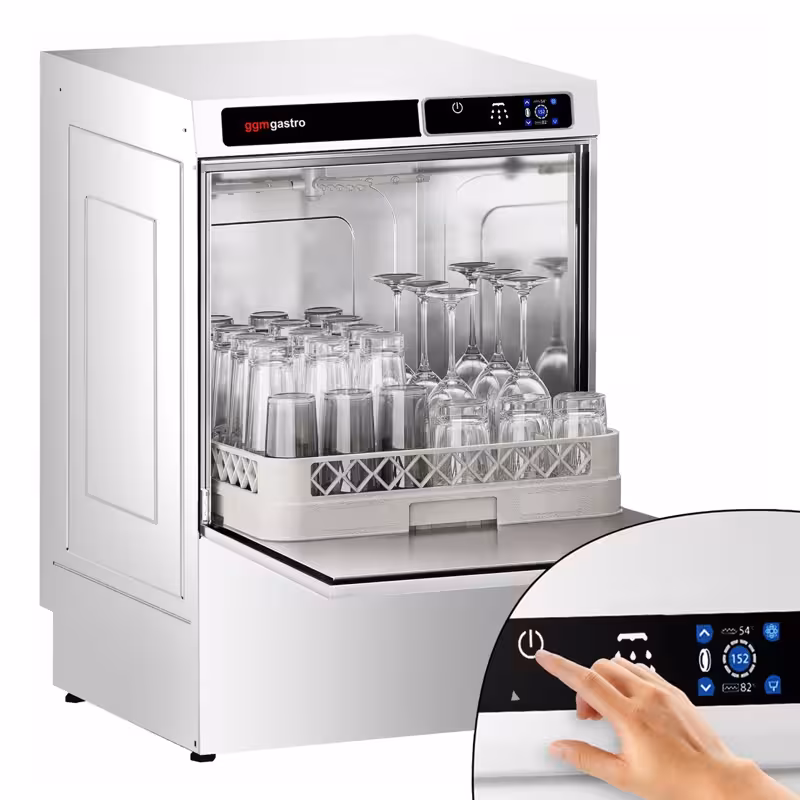

Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Touch Controls - 3.6kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Intuitive touchscreen operation: Enables easy control with remaining time display and a variety of settings for greater comfort and clarity.
- Automatic detergent & rinse aid supply: Ensures precise dosing and optimal washing results without manual effort.
- High washing performance: Guarantees thorough cleaning and hygienic cleanliness with every wash cycle.
Description
Product Overview
The dishwasher with touch control offers a powerful cleaning solution with 3.6 kW power, ensuring fast and thorough cleaning. It is ideal for use in professional kitchens and catering establishments that rely on efficiency and reliability. The appliance is designed as an under-counter unit, fitting space-savingly into any kitchen run.
Product Details
The dishwasher features a drain pump that reliably pumps wastewater to the drain connection even with height differences. Additionally, a detergent and rinse aid pump is integrated, ensuring automatic and precise dosing of cleaning agents. The polypropylene wash basin is particularly durable and long-lasting. For safe handling, there is a door opening with safety system, while the adjustable feet allow for individual height adjustment.
Commissioning is straightforward: with just one button press, water is filled into the boiler tank and heated. Five different programmes allow flexible adaptation to various levels of soiling. The high-quality stainless steel housing is fully sealed and meets protection class IPX5, ensuring protection against water splashes. The digitally controlled rinse and wash temperature guarantees efficient cleaning under consistently optimal conditions.
Conclusion and Areas of Application
This dishwasher is the perfect choice for businesses that value powerful cleaning and easy operation. It impresses with its robust construction, precise dosing of cleaning agents, and flexible programmes. Thanks to its compact design and reliable technology, it is excellently suited for use in restaurants, canteens, and catering companies that require efficient and hygienic dishwashing technology.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ The installation of the equipment must be carried out by a qualified professional.
- To reduce the heating-up time, a hot water connection should be used.
- The maximum temperature of the hot water connection must not exceed 50°C.
- A detailed manual can be found under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 595 mm |
|---|---|
| Depth | 645 mm |
| Height | 830 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 335 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 3/4" |
Details
| Washing temperature | 55 - 60 °C |
|---|---|
| Purge temperature | 80 °C - 85 °C |
| Max. Crockery height | 335 mm |
| Maximum volume | 75 dB |
Flushing process
| Water consumption per run | 2,80 l |
|---|---|
| Rinse program 1 | Rinse time 105 at max 34 Baskets/h |
| Rinse program 2 | Rinse time 135 at max 26 Baskets/h |
| Rinse program 3 | Rinse time 155 at max 23 Baskets/h |
| Rinse program 4 | Rinse time 175 at max 20 Baskets/h |
| Washing program 5 | Washing time 192 seconds, 18 baskets / hour |
Capacity
| Tank capacity | 27 l |
|---|---|
| Boiler capacity | 6 l |
Connected load
| Power | 3,60 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 60 kg |
| Net weight | 51,30 kg |
Download / Exploded drawing
