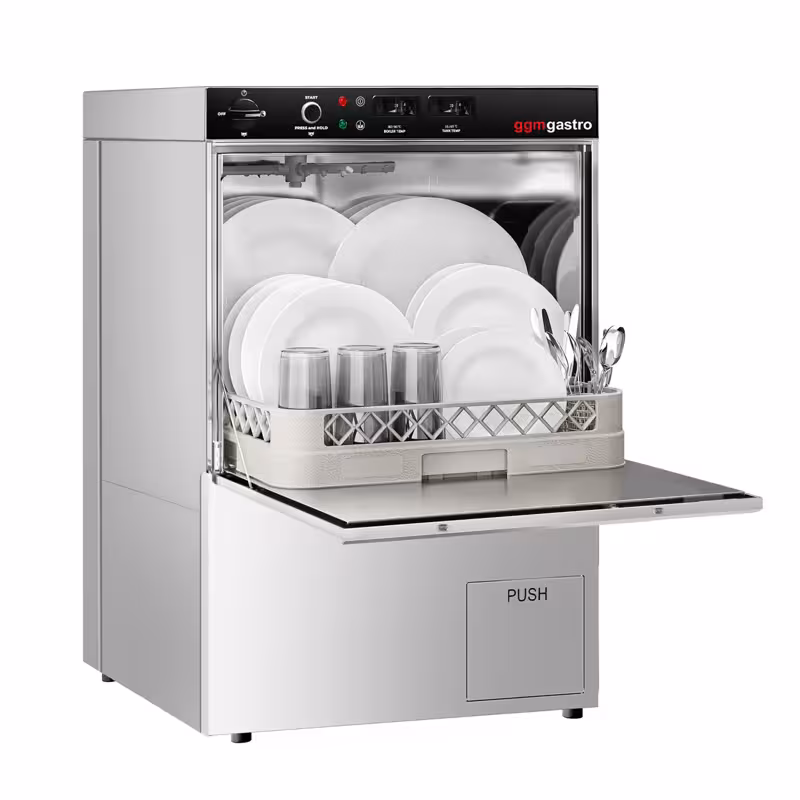

Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 5.1kW - with Drain, Rinse Aid & Detergent Pumps
* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 5.1kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Efficient wastewater disposal: The lye pump reliably pumps wastewater over a height difference into the sewage connection. This allows for flexible installation even in unfavourable spatial conditions.
Description
Product Overview
The single-walled dishwasher with 5.1 kW power is ideal for professional use in the gastronomy sector or large-scale kitchens. It offers manual operation, supported by a clear control panel with boiler and water tank thermometers, making handling particularly easy. The appliance is designed as an under-counter unit, fitting space-efficiently into any kitchen line.
Product Details
The high-quality stainless steel housing and tank ensure a long service life and high durability. The machine features three separate pumps for alkali, detergent, and rinse aid, guaranteeing efficient and thorough cleaning. With two programmes, various washing requirements can be flexibly covered. The integrated thermometers allow precise temperature control in the boiler and water tank, enhancing the quality of the washing process.
Conclusion and Areas of Application
This dishwasher is perfectly suited for operations that value reliable and powerful washing technology. It ensures clean dishes under heavy use, especially in restaurants, canteens, or catering companies. The combination of simple operation, robust materials, and powerful pumps makes the appliance an efficient solution for daily washing needs.
Installation & Operation
- ⚠️ For safety reasons, the appliance should be connected to the power supply as a separate circuit.
- ⚠️ Information on the mains voltage can be found in the operating instructions.
- ⚠️ A hot water connection is recommended.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge needs to be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Please note that this device is only suitable for chlorine-free cleaners.
Technical data
Dimensions
| Width | 590 mm |
|---|---|
| Depth | 630 mm |
| Height | 820 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 300 mm |
|---|
Details
| Operation | manual |
|---|---|
| Rinsing time | 90.00 s or 180.00 s |
| Inlet water temperature | 45 °C to 50 °C |
| Rinse temperature | 55 °C |
| Rinse aid temperature | 85 °C |
Capacity
| Plate capacity | 500 pieces/h |
|---|---|
| Tank capacity | 29 l |
Water connection
| Water connection | 3/4" inches |
|---|---|
| Water discharge | 32 mm Ø |
| Drain height | 350 mm |
| Water inlet pressure | |
| Maximum water hardness | 15 °Fr |
Connected load
| Power | 5,10 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 60 kg |
| Net weight | 70 kg |
