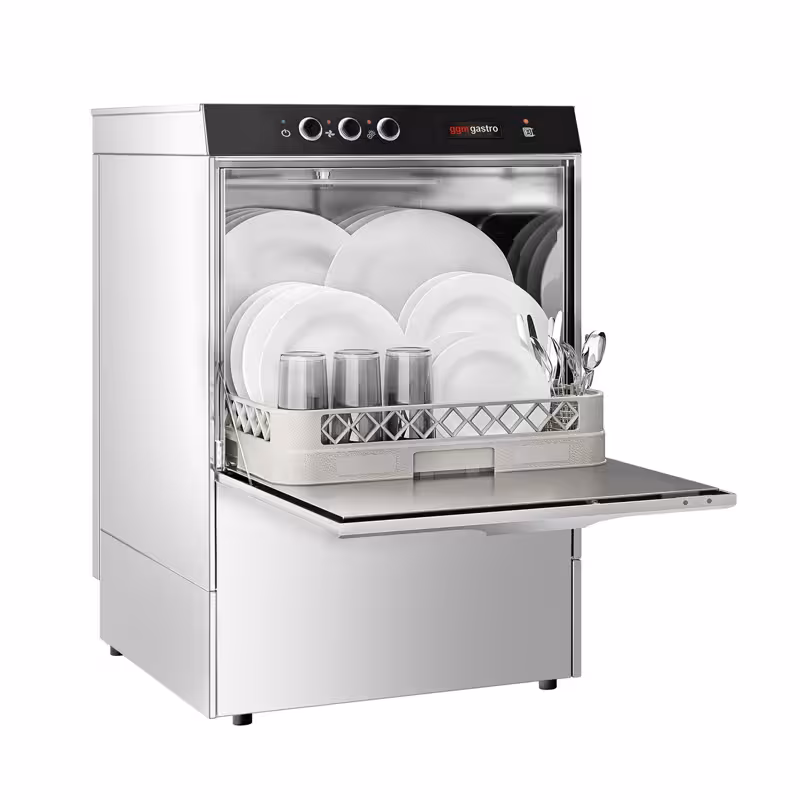

Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 4.9kW - with Detergent & Rinse Aid Dosing Pumps
* The picture may slightly differ from the original.
Undercounter Commercial Dishwasher - 500mm Basket - Manual Controls - 4.9kW - with Detergent & Rinse Aid Dosing Pumps
Description
Overview of the Dishwasher
The dishwasher with 4.9 kW power is a robust and reliable undercounter unit, ideal for professional use. It impresses with its manual operation and high-quality stainless steel construction, ensuring durability and stability. With two wash arms, it provides effective cleaning of various types of crockery, delivering excellent washing results.
Details and Features
The machine features an electromechanical, maintenance-free control that guarantees easy and safe handling. An integrated safety system for door opening enhances user comfort and safety during daily operations. The automatic rinse aid supply is managed via an electric dosing pump connected by a white hose. Additionally, rotating, non-clogging wash and rinse arms are installed to ensure even and thorough cleaning. The wash chamber is equipped with a dual filter system that optimises hygiene and cleanliness.
Conclusion and Areas of Application
This dishwasher is perfectly suited for catering establishments, canteens, and other professional kitchens that rely on reliable and powerful cleaning. Due to its high washing performance and robust construction, it is extremely durable even under intensive use. The appliance offers an optimal combination of user comfort, efficiency, and hygiene, making it convincing in a wide range of applications.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- The wash programmes only operate with a hot water connection as specified.
- A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge needs to be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 565 mm |
|---|---|
| Depth | 610 mm |
| Height | 825 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 345 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinsing time | 180 seconds |
|---|---|
| Maximum number of baskets | 20 |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|---|
| Boiler capacity | 5,50 l |
Connected load
| Power | 4,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 58 kg |
| Net weight | 47 kg |
Download / Exploded drawing
Safety and disposal instructions
