• Made in Italy: High-quality craftsmanship guarantees reliability and durability.
• Filtration & Deodorisation: Effectively removes unwanted odours and ensures clean, fresh air.

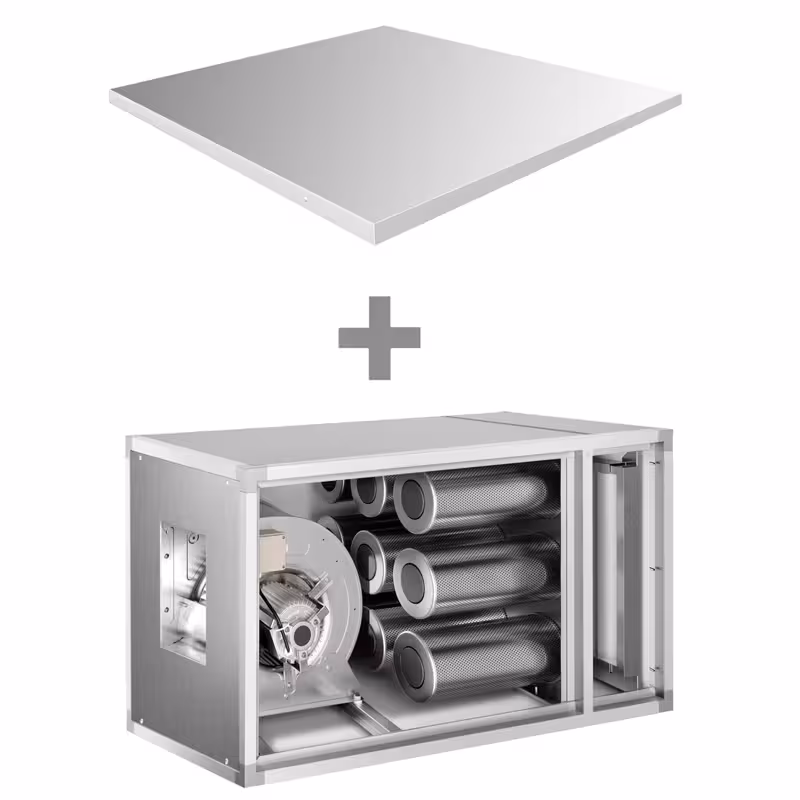

Efficient Extract Air Cleaning for Outdoor Use

This extract air cleaning system with motor offers a capacity of 4600 m³ and impresses with a separation efficiency of 70%, ensuring effective cleaning of the extract air. It is ideal for use in industrial and commercial environments where reliable filtration of pollutants and odours is required. Thanks to the integrated motor and protective panel, the system is particularly suitable for outdoor use and guarantees a durable and stable operation.

High-Quality Filtration Technology and Robust Construction

The combination of pre-filters and activated carbon filters ensures thorough purification of the air from pollutants and odours. The system is equipped with a low-noise and weatherproof casing, made of galvanised steel sheet on the inside and stainless steel on the outside. The robust frame construction made of aluminium profiles with a one-sided panel cladding provides stability and durability. Additionally, a thermal and sound-insulating layer made of 5 mm thick foam certified according to UNI EN 13501-1 protects against noise nuisance and environmental influences.

Conclusion and Areas of Application

This extract air cleaning system is an environmentally friendly and energy-efficient solution for air purification in outdoor areas. It is perfectly suited for businesses that prioritise clean extract air, such as in production, workshops, or other commercial sectors. The combination of high performance, robust design, and effective filtration technology makes it a reliable investment for sustainable environmental protection.

• ⚠️ To avoid damage to the motor and equipment, the connection of the thermal protection to the speed controller is required when two cables are provided for this purpose.
• ⚠️ In single-phase motors, the thermal protection is often integrated, so no external connection is necessary.
• ⚠️ Before commissioning, the electrical connections on the fan, equipment, or junction box must be carefully checked.
• ⚠️ Damage caused by incorrect connections is excluded from the warranty.
• ⚠️ Only original spare parts guarantee the specified performance values regarding efficiency, air flow rate, and pressure.
• ⚠️ The use of non-original components that impair functionality voids the warranty.
