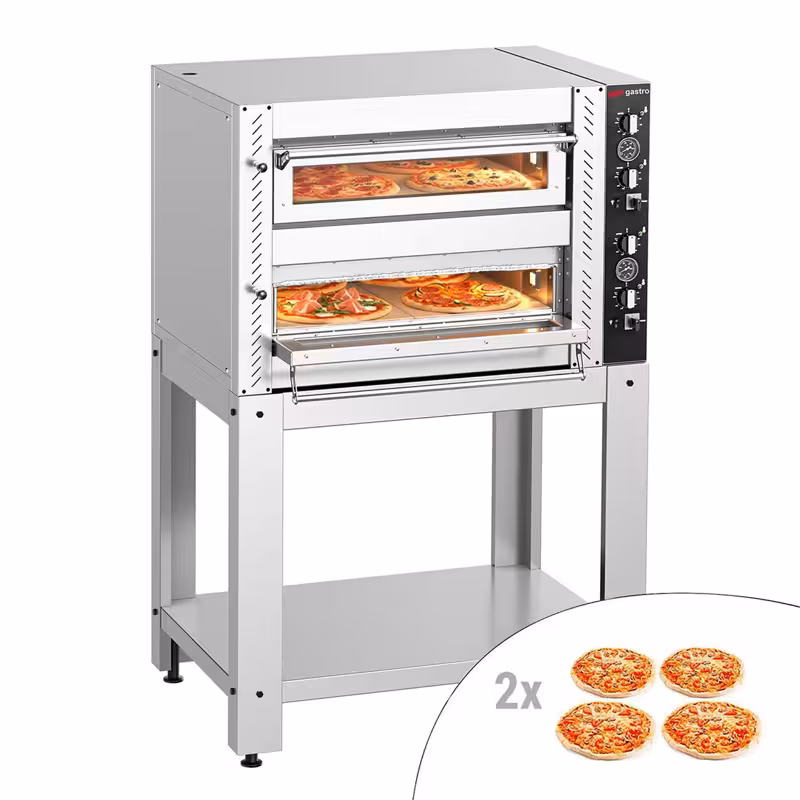

Electric Deck Pizza Oven - Twin Deck - Refractory Stone Deck - 4+4 x Ø 34cm (13.4") - 230V 3 Phase - Mechanical Controls - up to 450°C - incl. Base frame

* The picture may slightly differ from the original.
Electric Deck Pizza Oven - Twin Deck - Refractory Stone Deck - 4+4 x Ø 34cm (13.4") - 230V 3 Phase - Mechanical Controls - up to 450°C - incl. Base frame
Product Advantages
- Optimised insulation: Saves up to 20% energy compared to previous models, reducing costs and being environmentally friendly.
- Individually adjustable top and bottom heat: Allows precise temperature control for perfect baking results as desired.
- Full chamotte lining: Ensures excellent heat retention and even heat distribution from all sides, for evenly baked pizzas.
Description
Efficient Electric Pizza Oven for Professional Requirements
The electric pizza oven with full chamotte interior is ideal for gastronomy and retail sectors that value quality and energy efficiency. With its manual operation, it offers reliable and simple handling. The integrated base frame ensures a stable and space-saving setup in any professional kitchen.
High-Quality Features for Optimal Baking Results
The oven features a heat-insulated baking chamber, which operates particularly energy-efficiently due to its high-quality insulation. This allows for up to 20% energy savings compared to conventional devices. The constant temperature is maintained even with frequent door openings, guaranteeing perfect baking results. Practical extras such as an integrated chimney opener, interior lighting, and an extra-large viewing window facilitate monitoring of the baking process. For added safety, there is an emergency stop switch.
Conclusion and Areas of Application
This pizza oven is ideal for pizzerias, catering businesses, and retail outlets seeking a professional and energy-efficient solution. It impresses with its durable construction and excellent heat retention of the full chamotte. Perfectly suited for baking pizzas with an evenly crispy crust and ideal for intensive use in the gastronomy sector.
Installation & Operation
- ⚠️ The connection to three-phase power must be carried out by a qualified professional.
- ⚠️ Maintain a minimum distance of 15 cm from rear and side walls as well as from neighbouring appliances.
- Remove all packaging material completely, especially polystyrene inside the baking chamber and under the firebricks.
- Before first use, cure the oven: increase the temperature by 50°C every 30 minutes until reaching the maximum temperature.
- Operate the oven at maximum temperature for 4 hours with the door open to allow unwanted fumes to escape.
Cleaning & Maintenance
- We recommend regularly cleaning the fireclay stone with a brass brush to remove baking residues and thus prevent smoke development.
- Never clean fireclay stones when wet, as this can cause stress cracks.
Technical data
Dimensions
| Width | 1.140 mm |
|---|---|
| Depth | 940 mm |
| Height | 1.550 mm |
Internal dimensions
| Width | 720 mm |
|---|---|
| Depth | 710 mm |
| Height | 140 mm |
Details
| Material | Firebrick, Stainless Steel |
|---|---|
| Number of chambers | 2 Baking chambers |
| Pizzas per chamber | 4 |
| For pizzas with | Ø 34 cm |
Cooking system
| Heating method | upper & lower heat |
|---|---|
| Temperature up to | 450 °C |
Connected load
| Operating mode | Electric |
|---|---|
| Power | 10 kW |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase(s) | 3N/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 217 kg |
| Net weight | 169,90 kg |
Download / Exploded drawing
