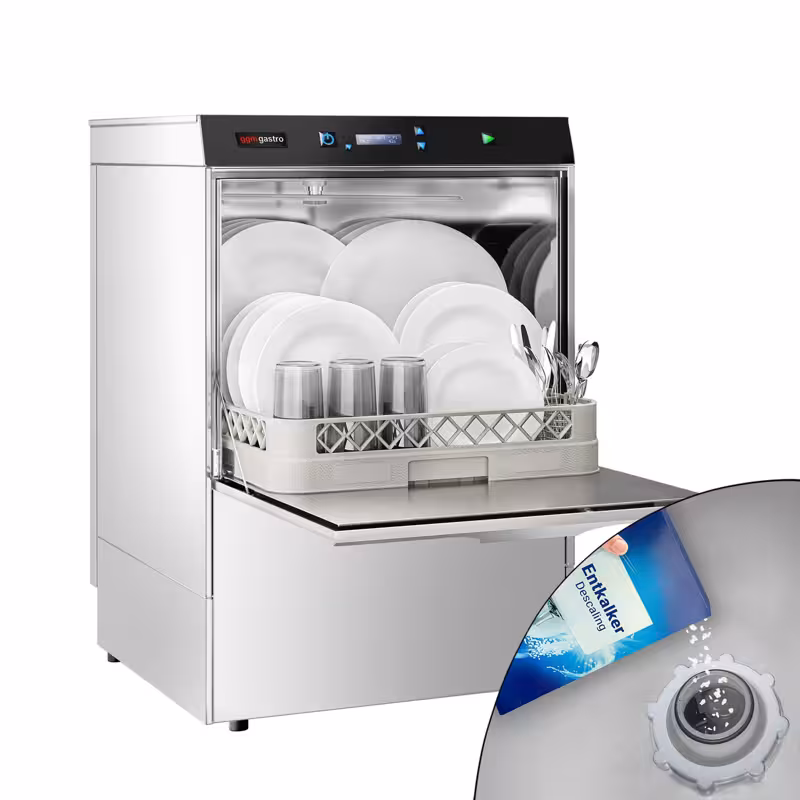

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Detergent & Rinse Aid Dosing Pumps

* The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Integrated Water Softener - with Detergent & Rinse Aid Dosing Pumps
Product Advantages
- Made in Italy: Signifies high-quality workmanship and quality. This increases the reliability and durability of the machine.
- Integrated descaling system: Eliminates the need for an external descaler. This ensures easy maintenance and extends the machine's lifespan.
- Double-walled insulation: Significantly reduces noise levels. At the same time, it effectively lowers the machine's heat emission, optimising energy consumption.
Description
Product Overview
The double-walled dishwasher is a robust and high-quality stainless steel appliance specifically designed for professional use. With a power output of 3.9 kW, it ensures efficient and powerful cleaning. The appliance is designed as an under-counter unit and, thanks to its double-walled construction, offers improved insulation and noise reduction.
Product Details
The dishwasher features an electronic control panel with LCD display, enabling user-friendly operation. With four programmes and two rotating wash arms, it guarantees effective and thorough cleaning. An integrated water softener protects the appliance from limescale build-up and ensures a long service life. The detergent and rinse aid pump with electric dosing guarantees optimal distribution of cleaning agents. Additionally, the door opening safety system ensures safe operation.
Conclusion and Areas of Application
This dishwasher is ideal for use in gastronomy, large kitchens, or other commercial areas where high washing performance and reliability are required. Thanks to its high washing capacity and the dual filter system in the washing chamber, excellent cleaning results are achieved. The combination of robust stainless steel, modern technology, and practical features makes this appliance the perfect solution for professional users.
Installation & Operation
- ⚠️ Information on the mains voltage can be found in the operating instructions.
- ⚠️ A cold water connection is required for this appliance.
- ⚠️ A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descaling agents are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 66 kg |
| Net weight | 57,60 kg |
Download / Exploded drawing
