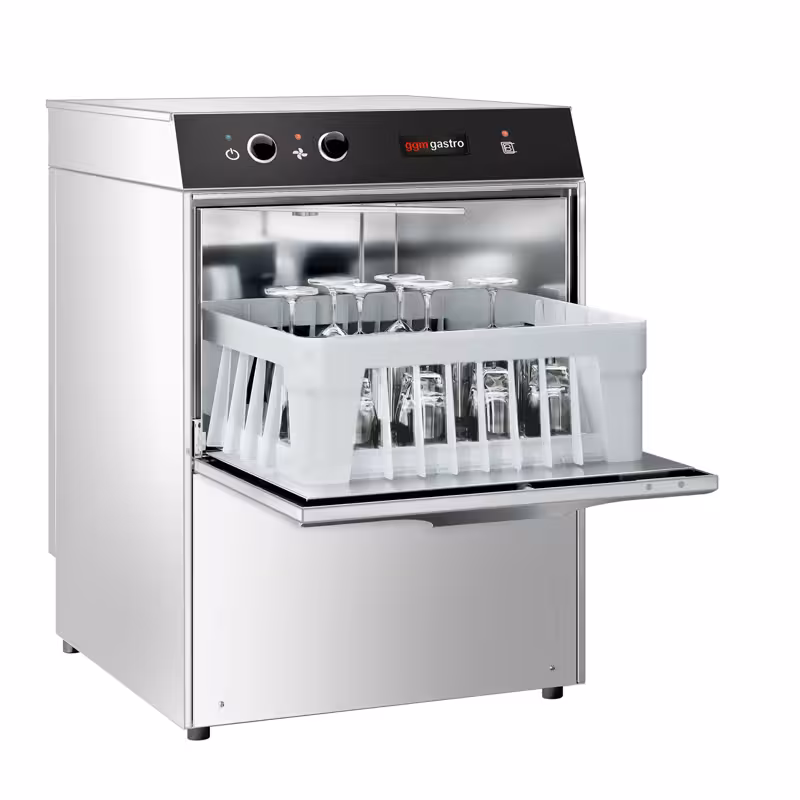

Double-skinned Compact Glasswasher - Manual - 2.77kW - with Drain Pump, Rinse Aid Pump

* The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Manual - 2.77kW - with Drain Pump, Rinse Aid Pump
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality.
- Reduced noise level: The double-walled insulation ensures a significantly quieter working environment.
- Efficient thermal insulation: Minimises heat emission and increases energy efficiency.
- High washing performance: Guarantees excellent cleaning results for optimal hygiene.
Description
Product Overview
The double-walled mini glasswasher is an especially compact and robust appliance, ideal for use in hospitality establishments with limited space. With a power output of 2.77 kW, the machine operates energy-efficiently and reliably. Thanks to manual operation, it is easy to control and fits perfectly under worktops as a built-under unit.
Product Details
The appliance features a double-walled construction that ensures optimal insulation and reduces noise levels. The high-quality stainless steel finish guarantees a long service life and easy cleaning. The glasswasher is equipped with a detergent pump that pumps wastewater over height differences into the drain connection, as well as a rinse aid pump with hydraulic dosing for perfect rinsing results. The rotating, non-clogging wash and rinse arms effectively clean glasses from above and below. Additionally, a dual filter system in the wash compartment ensures clean water and optimal hygiene. The door opening is fitted with a safety system that enhances user convenience.
Conclusion and Areas of Application
This mini glasswasher is the perfect solution for hospitality businesses, bars, or cafés seeking a space-saving and high-performance glasswasher. It impresses with its efficient cleaning, robust construction, and easy maintenance. It is ideally suited for the fast and hygienic washing of glasses in environments with high throughput and limited space availability.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating manual.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The washing programmes work optimally only with a hot water connection.
- ⚠️ A detailed manual is available under "Download" and "Video".
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners.
Technical data
Dimensions
| Width | 423 mm |
|---|---|
| Depth | 466 mm |
| Height | 589 mm |
Basket dimensions
| Width | 350 mm |
|---|---|
| Depth | 350 mm |
Rack height
| Height | 220 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Rinsing time | 120.00 s |
|---|---|
| Baskets / hour | 30 |
| Max. Glass height | 205 mm |
| Inlet water temperature | 55 °C |
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
Capacity
| Tank capacity | 11 l |
|---|
Connected load
| Power | 2,77 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 32 kg |
| Net weight | 26 kg |
Download / Exploded drawing
