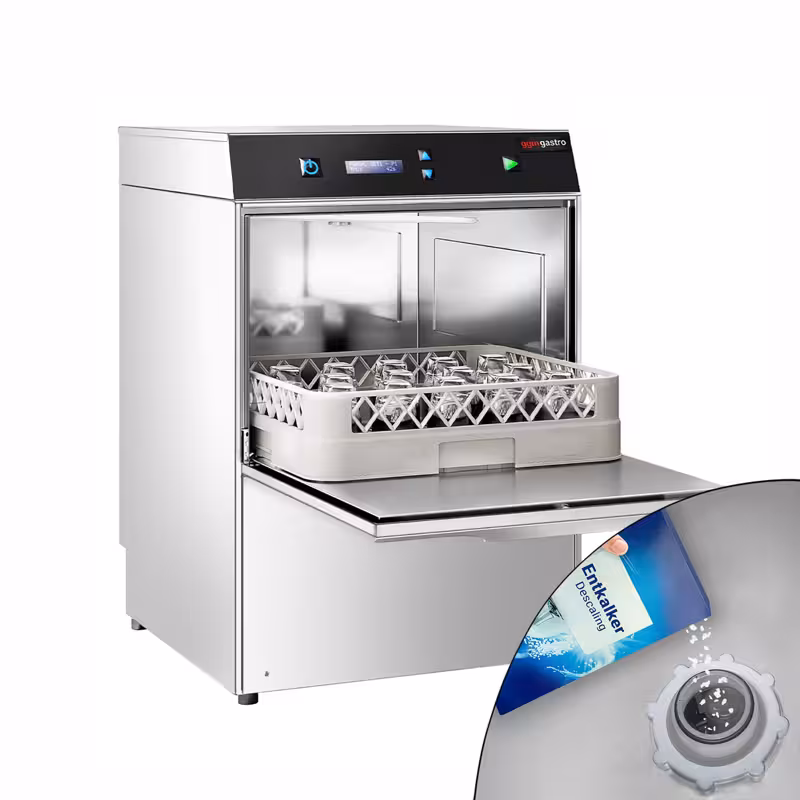

Double-skinned Compact Glasswasher - Digital - 2.97kW - with Integrated Water Softener - with Drain Pump, Detergent & Rinse Aid Pumps

* The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Digital - 2.97kW - with Integrated Water Softener - with Drain Pump, Detergent & Rinse Aid Pumps
Product Advantages
- Made in Italy: Stands for high-quality craftsmanship and durable quality.
- Integrated descaling system: Eliminates the need for an external descaler and ensures easy maintenance.
- Double-walled insulation: Significantly reduces noise levels and minimises the machine’s heat emission.
- High rinsing performance: Guarantees excellent cleaning results with every rinse cycle.
Description
Product Overview
The double-walled glasswasher is a powerful undercounter unit with a power rating of 2.97 kW. It is specially designed for the efficient cleaning of glasses and, thanks to its high-quality stainless steel construction, offers a very robust and durable design. The unit features an integrated digital display that enables user-friendly operation and offers a choice of four different programmes.
Product Details
The heart of the glasswasher is the rotating, non-clogging wash and rinse arms, which ensure thorough cleaning and a streak-free finish. The wash chamber is equipped with a dual filtration system that effectively traps impurities. Additionally, the machine has a built-in water softener that prevents limescale build-up, thereby extending the appliance’s lifespan. The combination of alkaline, detergent and rinse aid pumps ensures optimal dosing and distribution of cleaning agents. For added safety, the door opening with safety system prevents accidental opening during operation.
Conclusion and Areas of Application
This glasswasher is ideal for use in bars, restaurants and cafés that require fast and thorough cleaning of their glassware. Thanks to the maintenance-free electromechanical control and robust construction, the unit is also suitable for intensive commercial use. The combination of modern technology and practical functions makes the machine an indispensable aid in the hospitality industry.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ This appliance requires a cold water connection.
- ⚠️ A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For smooth rinsing, the device and components should be descaled with the connected descaler!
- If you have installed a descaler beforehand, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 473 mm |
|---|---|
| Depth | 513 mm |
| Height | 689 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 315 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Glass height | 300 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
Capacity
| Tank capacity | 14 l |
|---|
Connected load
| Power | 2,97 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 45 kg |
| Net weight | 40 kg |
Download / Exploded drawing
