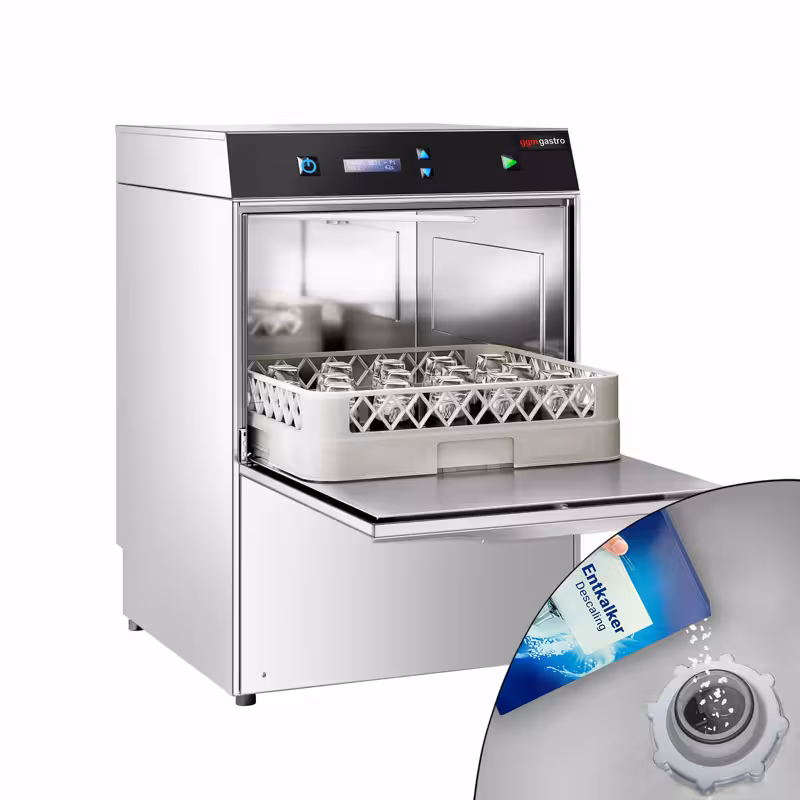

Double-skinned Compact Glasswasher - Digital - 2.97kW - with Integrated Water Softener - with Detergent & Rinse Aid Pumps
* The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Digital - 2.97kW - with Integrated Water Softener - with Detergent & Rinse Aid Pumps
Product Advantages
- Made in Italy: Stands for high-quality workmanship and durable quality.
- Double-walled insulated walls: Reduce noise levels and minimise the machine's heat radiation.
- Integrated descaling system: Eliminates the need for external descaler and ensures easy maintenance.
Description
Product Overview
The double-walled glasswasher is a robust and high-quality undercounter unit made of stainless steel, specially designed for the professional cleaning of glasses. With a power output of 2.97 kW, it offers high washing performance and excellent cleaning results. The digital display ensures user-friendly operation and allows easy control of the machine.
Product Details
The appliance features a built-in water softener that effectively prevents limescale deposits and extends the machine’s lifespan. With four programmes, the glasswasher can be flexibly adapted to different levels of soiling. Washing is carried out by rotating, non-clogging wash and rinse arms located at the top and bottom of the wash chamber for thorough cleaning. The hydraulic rinse aid dosing system guarantees a streak-free rinse result. Additionally, the machine is equipped with a detergent and rinse aid pump that ensures optimal detergent supply.
Conclusion and Areas of Application
This glasswasher is ideal for use in gastronomy, bars, and cafés where fast and effective glass cleaning is required. Thanks to the double-walled construction, the appliance is particularly energy-efficient and quiet in operation. The door opening safety system ensures safe and comfortable use. Overall, the machine impresses with its robust construction, maintenance-free design, and high performance – perfect for professional use.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ A cold water connection is required for this device.
- ⚠️ A detailed manual is available under the "Download" and "Video" tabs.
Cleaning & Maintenance
- For smooth rinsing, the appliance and components should be descaled with the connected descaler!
- If you have installed a pre-filter descaler, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners to avoid damage.
Technical data
Dimensions
| Width | 473 mm |
|---|---|
| Depth | 513 mm |
| Height | 689 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 315 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Glass height | 300 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
Capacity
| Tank capacity | 14 l |
|---|---|
| Boiler capacity | 3,50 l |
Connected load
| Power | 2,97 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 43 kg |
| Net weight | 35,10 kg |
Download / Exploded drawing
