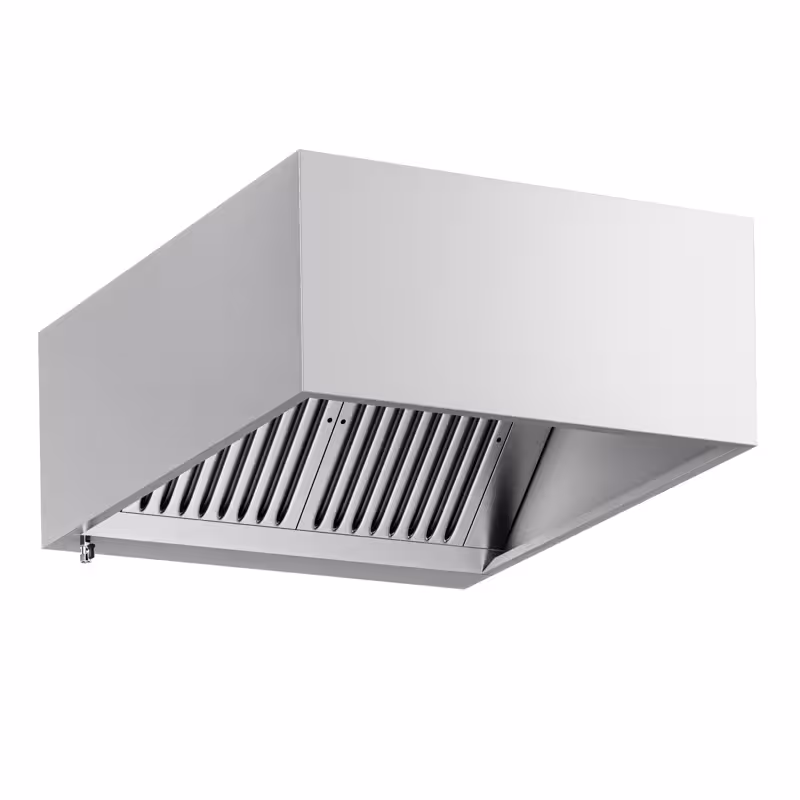

Commercial Wall-Mounted Extractor Hood – 2200mm – with Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood – 2200mm – with Baffle Filters & Lighting
Product Advantages
- Made in Europe: Guaranteed high-quality standards and reliable production. This ensures durability and safety.
- High-quality workmanship: Provides a first-class appearance and robust functionality. The investment pays off through long service life.
- Single-block structure made of AISI 304 stainless steel: Offers special stability and corrosion resistance. This significantly increases the lifespan of the hood.
- Grease-free labyrinth filters made of 18/10 stainless steel: Facilitates cleaning and ensures hygienic operation. This reduces maintenance effort and improves air quality.
Description
Product Overview
The canopy hood with a width of 1000 mm is a high-quality extractor hood specifically designed for professional use in the gastronomy and large-scale kitchen sectors. It impresses with its robust and compact construction, allowing easy integration into various kitchen environments. Thanks to the integrated lighting, optimal visibility over the cooking area is always ensured.
Product Details
Manufactured from AISI 304 stainless steel in a single-block structure, the hood guarantees a long service life and the highest hygiene standards. The surface is Scotch-Brite satin finish, ensuring easy cleaning. A special highlight is the drip-free, hermetic gutter for collecting grease, equipped with a practical grease drain valve for easy emptying. The grease-free labyrinth filter made of 18/10 stainless steel ensures efficient and sustainable air filtration. Installation takes only a few minutes, significantly reducing labour time.
Conclusion and Areas of Application
This canopy hood is ideal for use in large kitchens, restaurants, and catering operations that value a powerful and hygienic extraction solution. It combines functional efficiency with easy handling and low-maintenance materials. Thus, it is the perfect choice for reliably removing cooking vapours while ensuring a pleasant working environment.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 1.000 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Number of filters | 2 |
|---|---|
| Conveyor volume | 1.200 m³/h/h |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 57,70 kg |
| Net weight | 45 kg |
Download / Exploded drawing
