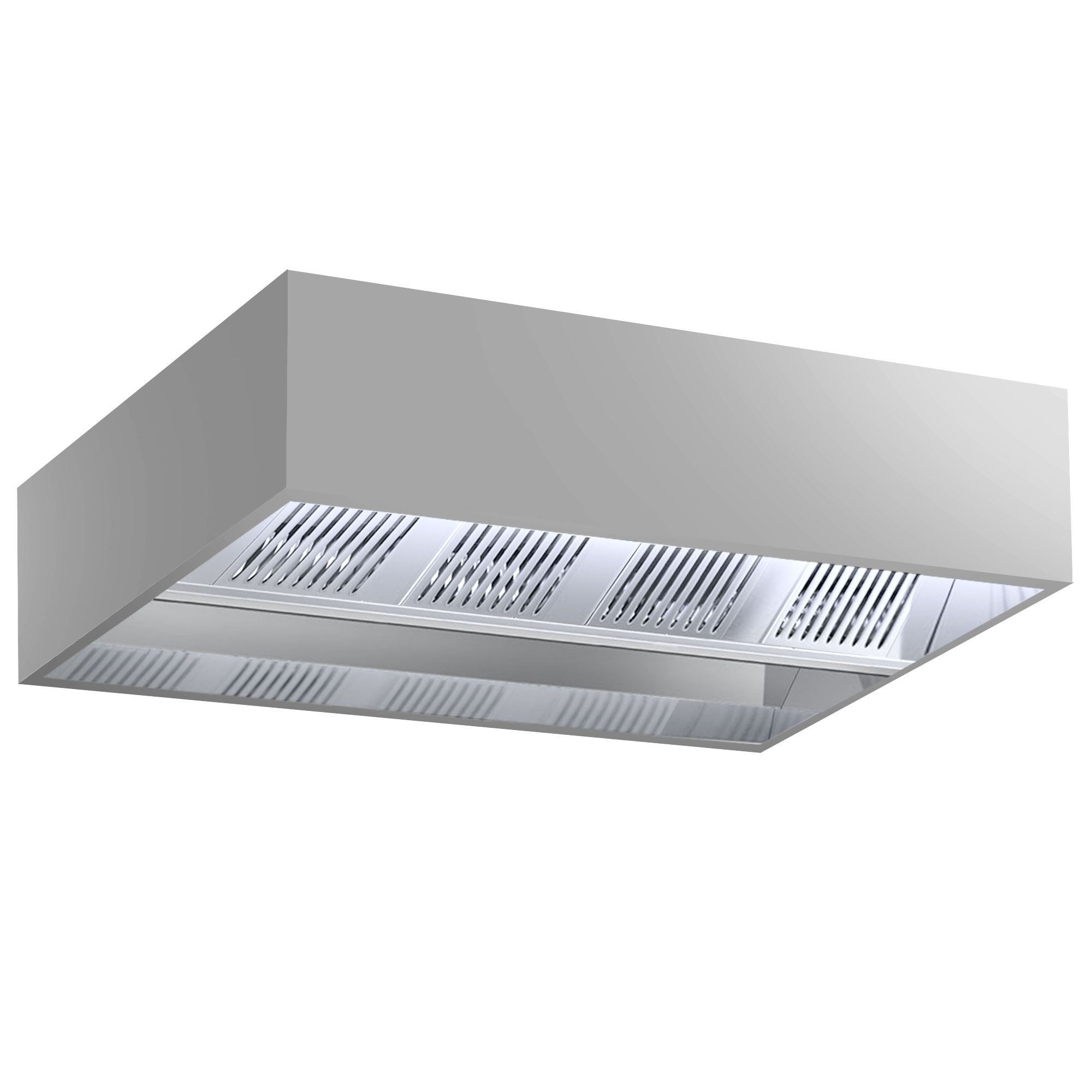

Commercial Extraction Canopy - Ceiling-Suspended - 2400mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Installation depth: 1800 mm
SKU IDHK2418
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €4,495.81
Commercial Extraction Canopy - Ceiling-Suspended - 2400mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Rate now
SKU IDHK2418
Installation depth: 1800 mm
Print* net price | gross price incl. 19% VAT.: €4,495.81
Accessories (3)
Spare Parts (1)
Product Advantages
- Two-stage system: It extracts warm kitchen exhaust air while simultaneously directing outside air back directly at the hood body, improving air quality.
- Higher efficiency: The capture rate is significantly higher, resulting in less vapour escaping from the sides of the hood into the kitchen.
- Better cleanliness: Fumes are captured more precisely, so less grease deposits on surfaces outside the extraction area.
- Less draught: The air is expelled directly at the hood, reducing unpleasant air currents in the rest of the room.
Description
Product Overview
The induction ceiling hood with a length of 2400mm is a high-quality solution for professional kitchen areas. It is specially designed to efficiently extract vapours and fats without integrating a motor. This makes it ideal for customised ventilation systems where the motor is installed separately. The ceiling hood is equipped with a filter that improves air quality and facilitates cleaning.Product Details
Made from AISI 304 stainless steel, the hood impresses with its robust and durable construction. The spot-welded fabrication ensures stability and high load capacity. A drip-free, hermetic trough with drain taps effectively collects fats and simplifies maintenance. The surface is Scotch-Brite satin finish, offering an attractive, easy-to-clean design. For optimal visibility, an integrated LED lighting evenly illuminates the work area.Conclusion and Areas of Application
This ceiling hood is perfectly suited for use in large kitchens, catering establishments, and other commercial kitchens that require powerful and hygienic extraction. Its motorless design allows flexible integration into existing ventilation systems. The combination of high-quality materials and thoughtful construction guarantees a long service life and easy cleaning. Ideal for those who value quality and functionality.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced in a professionally planned manner.
- ⚠️ An incorrect reduction can impair the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 2.400 mm |
|---|---|
| Depth | 1.800 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Exhaust air capacity | 3.600 m³/h |
|---|---|
| Supply air flow rate | 2.550 m³/h |
| Number of filters | 8 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 165,60 kg |
| Net weight | 138 kg |
Safety and disposal instructions
Safety and disposal instructions
Safety and disposal instructions
