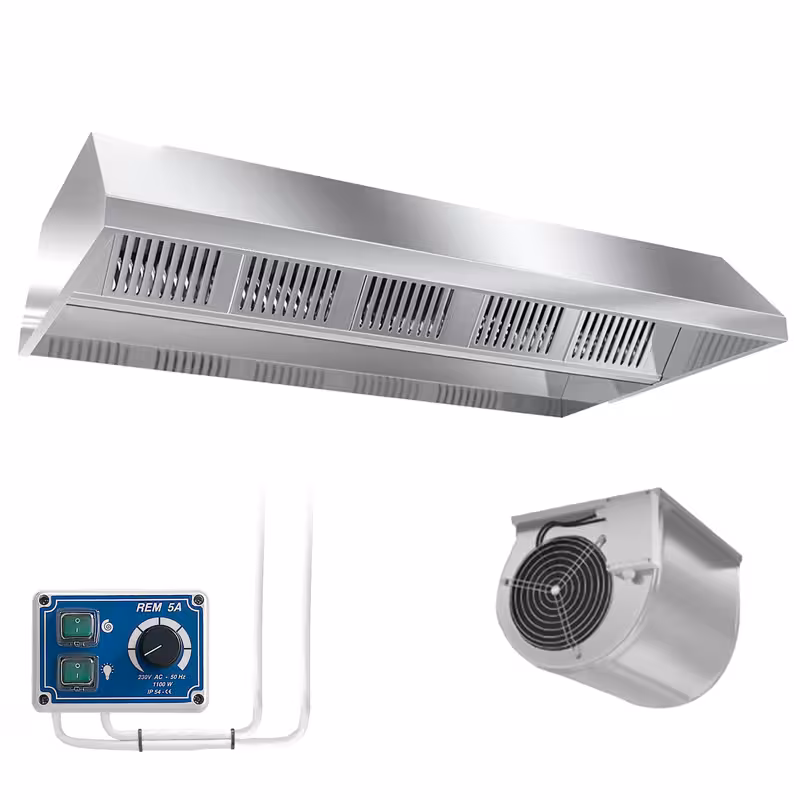

Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 2000mm - with External Speed Controller, Baffle Filters - 1500mm Deep
* The picture may slightly differ from the original.
Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 2000mm - with External Speed Controller, Baffle Filters - 1500mm Deep
Product Advantages
- Made in Italy: Represents high-quality Italian manufacturing and guarantees first-class product quality.
- Single-block structure made of AISI 304 stainless steel: Provides a robust and durable construction that is corrosion-resistant.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure efficient filtration and easy cleaning, facilitating maintenance.
Description
Robust ceiling hood for professional kitchens
The ceiling hood with a length of 2000mm is ideal for use in commercial kitchens where an efficient extraction solution is required. With the integrated motor and external controller, the performance can be individually adjusted, ensuring optimal air quality. The hood is equipped with a filter and a lamp, providing both air purification and good illumination of the work area.
High-quality materials and thoughtful design
Made from AISI 304 stainless steel, the hood impresses with its durable and easy-to-clean surface. The welded construction ensures stability, and a drip-free, hermetic gutter safely and hygienically collects fats with drain taps. The 18/10 stainless steel labyrinth filters guarantee grease-free air separation, while the satin finish with Scotch-Brite treatment provides an attractive design.
Conclusion and areas of application
This ceiling hood is perfectly suited for use in large kitchens, catering establishments, and other professional environments that prioritise powerful and hygienic ventilation. The compact and robust design allows for quick installation and easy operation via the external control unit. This hood creates a clean, safe, and well-lit working environment.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 2.000 mm |
|---|---|
| Depth | 1.500 mm |
| Height | 450 mm |
Drain size
| Width | 260 mm |
|---|---|
| Height | 300 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Conveyor volume | 2.200 m³/h / h |
|---|---|
| Number of filters | 8 |
| Air turnover per hour | 2.200 m³ |
Connected load
| Power | 420 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 139 kg |
| Net weight | 100 kg |
Download / Exploded drawing
