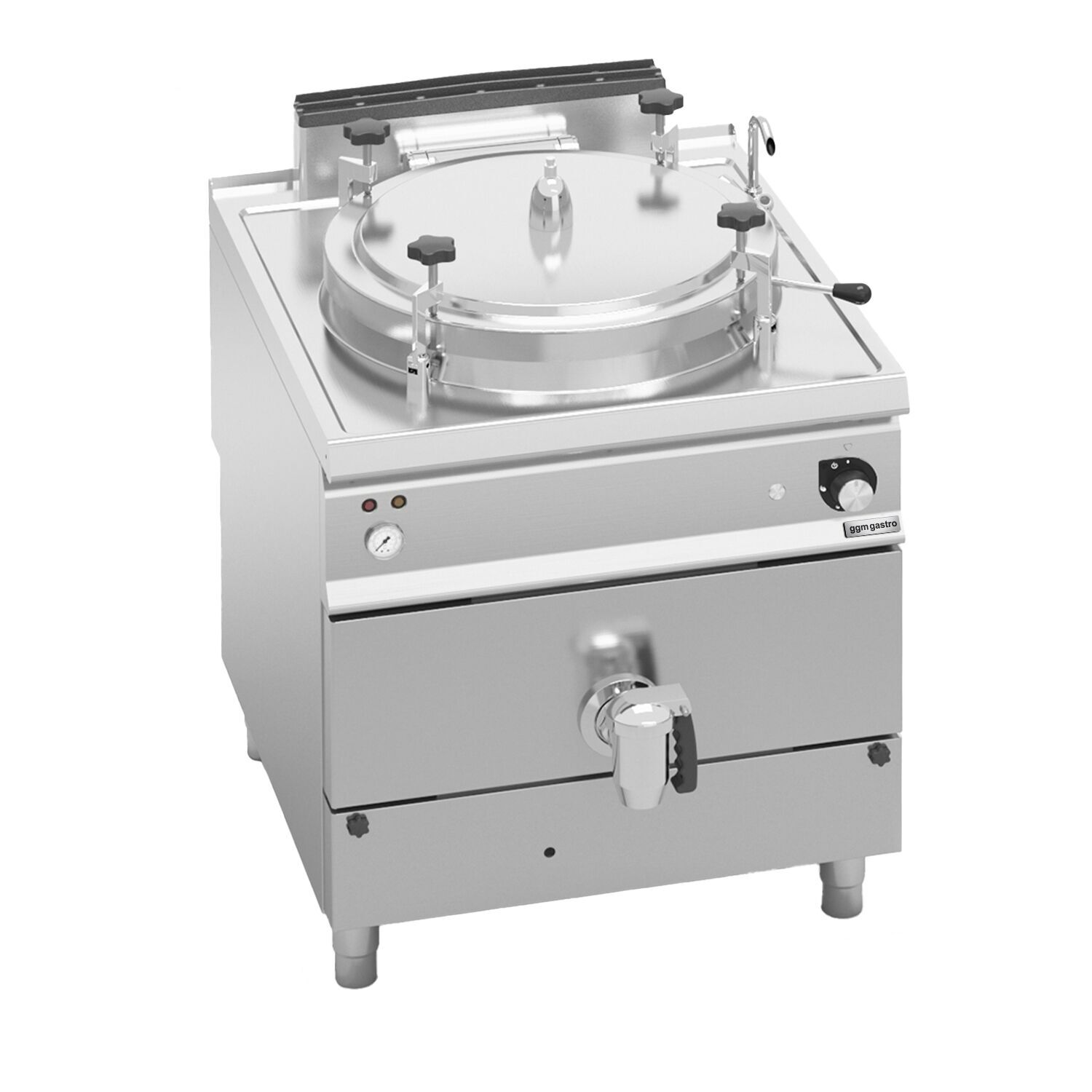

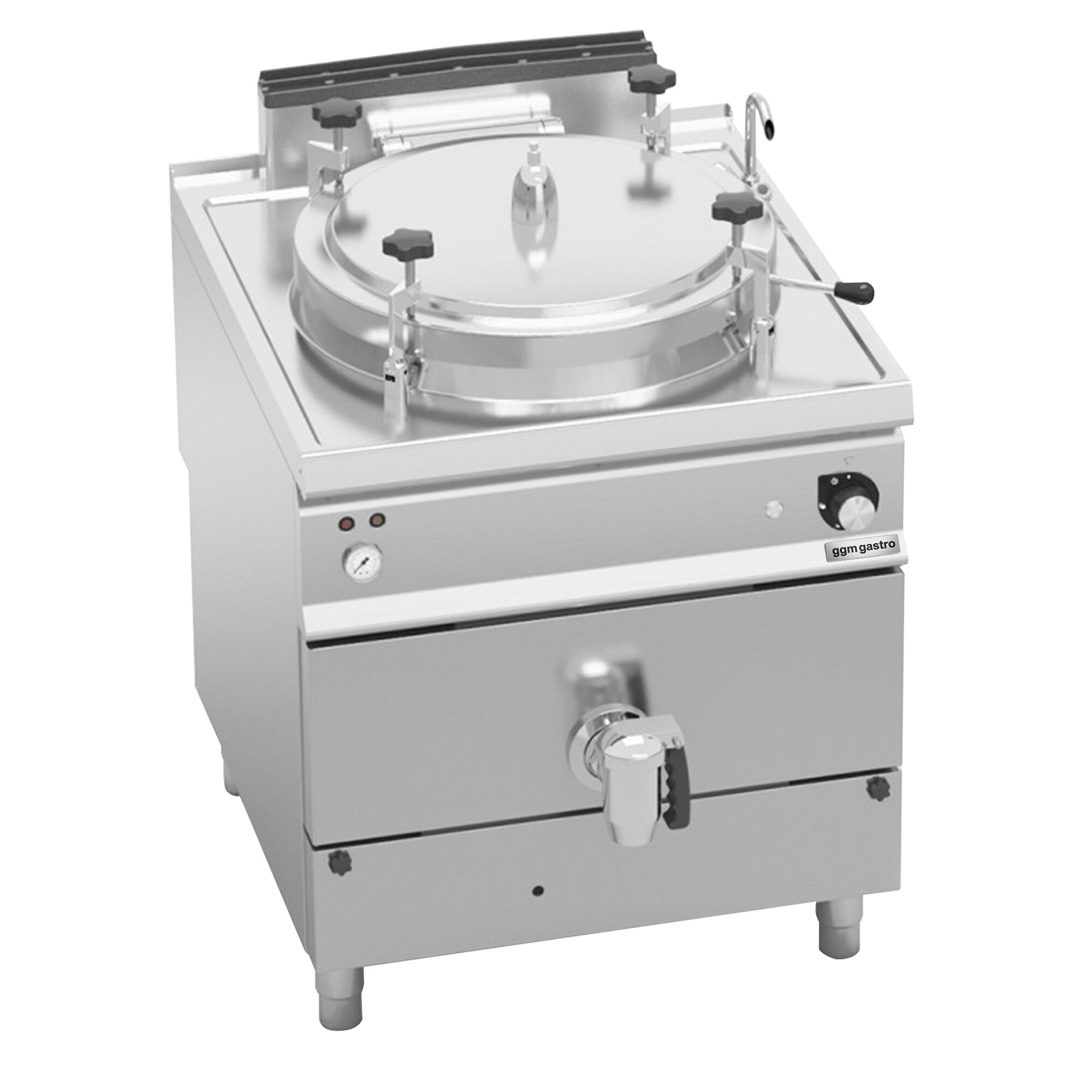

Gas Pressure Boiling Pan - 150L - 20.9kW - Indirect Heating - with Water Connection
Floor-standing unit - 900 Deep
SKU GDKB150I
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €8,470.41
Gas Pressure Boiling Pan - 150L - 20.9kW - Indirect Heating - with Water Connection
Rate now
SKU GDKB150I
Floor-standing unit - 900 Deep
Print* net price | gross price incl. 19% VAT.: €8,470.41
Accessories (3)
Product Advantages
- Absolutely gentle: The even heat distribution prevents milk, soups or purées from burning. This preserves the quality of the dishes.
- Uniform heat: The kettle is heated all around, including the side walls. This ensures a constant temperature and even cooking.
- Perfect for long cooking times: Ideal for keeping warm, braising or "Cook & Chill" production. This allows dishes to be prepared gently and energy-efficiently.
- Easier cleaning: By preventing burning, usually a simple rinsing and wiping is sufficient. This saves time and effort during cleaning.
Description
Product Overview
The gas pressure cooking kettle with a 150-litre capacity is a professional solution for the efficient and safe preparation of large quantities. Thanks to the indirect heating with 20.9 kW output, it ensures even and gentle warming, ideal for use in gastronomy or food production. The integrated water inlet and drain valve allow for convenient handling and easy cleaning.Product Details
The cooking kettle is made of high-quality AISI 304 stainless steel, ensuring durability and hygiene. The indirect heating with low-pressure steam (0.5 bar) guarantees safe and energy-efficient heat transfer. A safety thermoelement monitors the flame and automatically shuts off the gas supply if the flame goes out, increasing operational safety. Additionally, manually adjustable fastening elements provide stable mounting. The combination of a chrome-plated drain valve and cold and hot water taps significantly facilitates operation and cleaning.Conclusion and Areas of Application
This gas pressure cooking kettle is perfectly suited for professional kitchens, catering companies, and food manufacturers who want to heat large quantities reliably and safely. Its robust construction and modern safety technology make it a durable and efficient partner. Particularly advantageous is the indirect heating, which prevents combustion damage to the product. The kettle is ideally used in large kitchens, canteens, and production facilities where hygiene and efficiency are of the utmost importance.Installation & Operation
- ⚠️ The use of an extraction system is recommended.
- ⚠️ This ensures the best possible performance.
- ⚠️ It guarantees the optimal use of the product.
- Install the extraction system before commissioning.
- Connect the water supply and drain valve.
- Check the gas pressure and connect.
- Fill the boiler according to the instructions.
- Switch on the heater and check its function.
- After use, use the drain valve to empty.
Cleaning & Maintenance
- Allow the kettle to cool and only soak the crusts. Avoid steel wool, scrapers or chlorine-based cleaners to protect the stainless steel.
- Disassemble the outlet tap daily, clean thoroughly and disinfect. Then lubricate with food-grade tap grease.
- Consistently remove limescale deposits to ensure optimal heat transfer and save energy.
- For indirectly heated kettles, regularly check the water level in the double jacket and the safety valve.
- After cleaning, always leave the lid slightly open for ventilation.

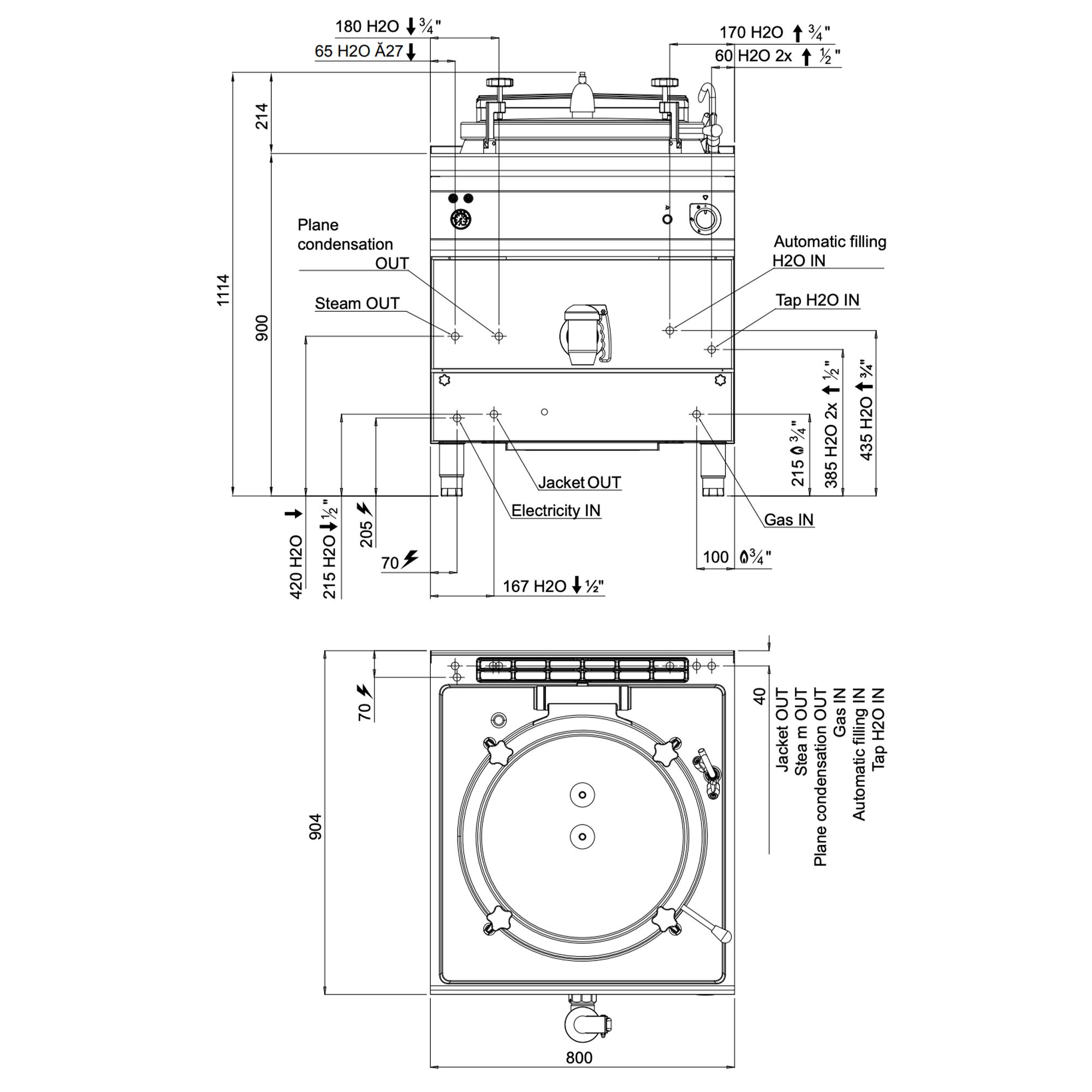

Technical data

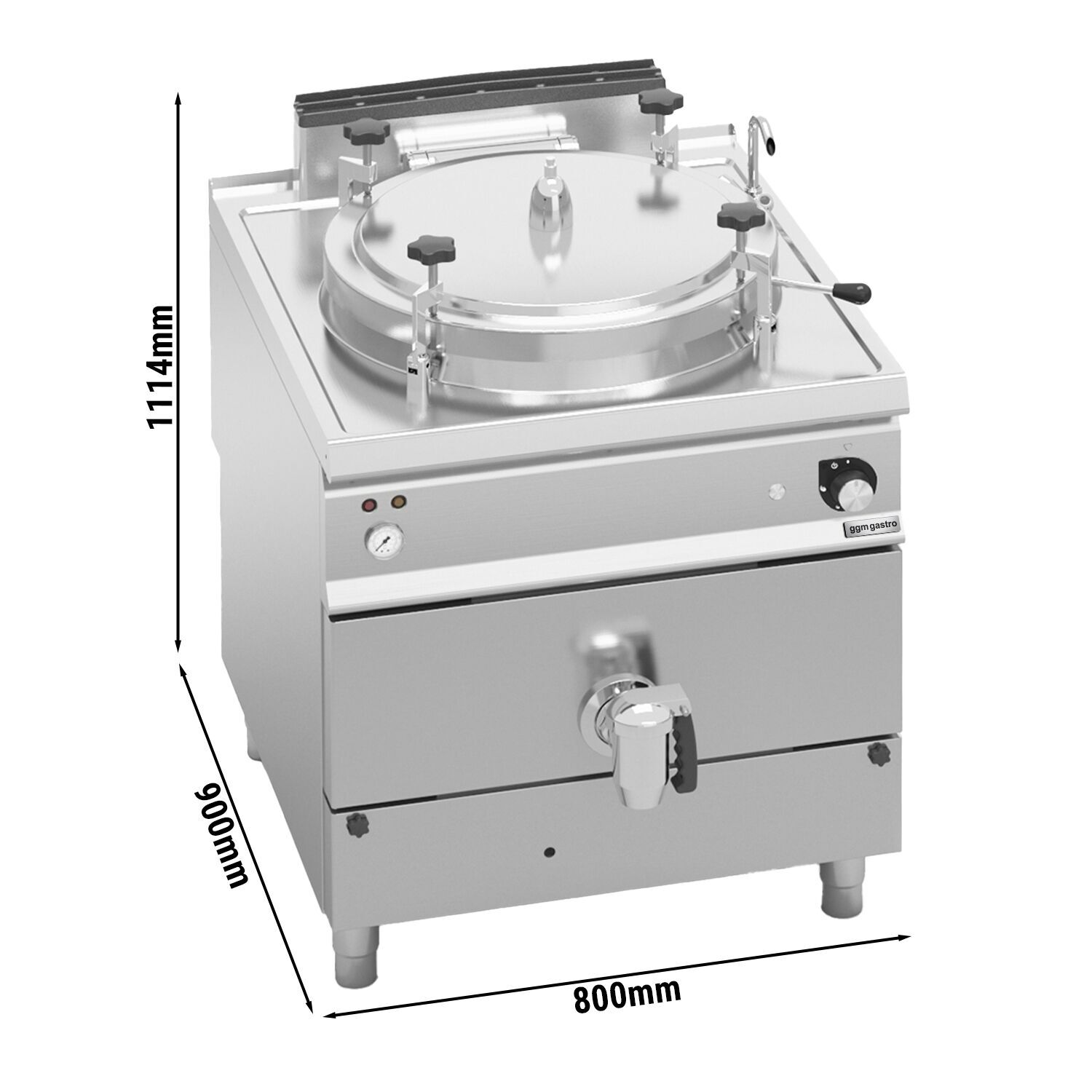

Dimensions
| Width | 800 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.114 mm |
| Working height | 900 mm |
Details
| Capacity | 150 l |
|---|---|
| Floor thickness | 20/10 |
| Wall thickness | 15/10 |
| Sequence device | 2 inch |
Connected load
| Operating mode | Gas |
|---|---|
| Power | 20,90 kW |
| Power current | 30 Watt |
| Voltage | 220 - 240 Volt |
| Frequency | 50 Hz |
| Phase(s) | 1N/PE |
Average consumption
| Kcal/h | 17974 |
|---|---|
| Btu/h | 71311 |
| Propane gas (G30 / G31) | 1,64 kg/h |
| Natural gas H (G20) | 2,22 m³/h |
| Natural gas L ( G25 ) | 2,58 m³/h |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Weight | 144 kg |
