Gas Boiling Pan - 100L - 20.9kW - Indirect Heating - with Water Connection

* The picture may slightly differ from the original.
Gas Boiling Pan - 100L - 20.9kW - Indirect Heating - with Water Connection
Product Advantages
- Absolutely gentle: The heat is distributed evenly throughout the medium, preventing delicate foods such as milk, soups or purées from burning.
- Even heat: The kettle is heated all around, including the side walls, ensuring a constant temperature.
- Perfect for long cooking times: Ideally suited for keeping warm, braising or for "Cook & Chill" production.
- Easier cleaning: By preventing burning, usually a simple rinse and wipe is sufficient.
Description
Product Overview
The gas boiling kettle with a 100-litre capacity is a powerful solution for the professional kitchen. With indirect heating and an output of 20.9 kW, it ensures even and gentle warming of large quantities. Thanks to the integrated water inlet and drain tap, handling is particularly comfortable and efficient.
Product Details
The body and base of the boiling kettle are made of high-quality AISI 304 stainless steel, which ensures durability and easy cleaning. The heating element made of Incoloy steel guarantees a reliable and long-lasting heat source. For safety, a safety thermoelement is integrated, which monitors the flame and automatically shuts off the gas supply if it goes out. Additionally, the kettle features cold and hot water taps as well as an adjustable three-position switch, allowing flexible operation. Heating is carried out with low-pressure steam (0.5 bar), ensuring gentle and efficient heat transfer.
Conclusion and Areas of Application
The gas boiling kettle is ideal for catering businesses, large kitchens, and catering services that rely on a robust and safe cooking solution. Its indirect heating and large capacity make it perfect for preparing large quantities. Combining high-quality workmanship with practical features, this boiling kettle is a reliable investment for professional use in food preparation.
Installation & Operation
- ⚠️ All appliances with a gas connection should be installed by a qualified professional.
- ⚠️ The use of an extraction system is recommended for optimal performance.
- The appliance must be connected by a qualified installer.
- Ensure that an extraction system is in place to enhance functionality.
Cleaning & Maintenance
- Allow the kettle to cool before cleaning and only soak crusts.
- Avoid steel wool, scrapers or chlorine-based cleaners to protect the stainless steel.
- Disassemble, thoroughly clean and disinfect the outlet tap daily.
- Use food-grade tap grease to lubricate the outlet tap.
- Regularly remove limescale deposits to ensure optimal heat transfer.
- This saves energy and maintains the kettle’s efficiency.
- For indirect heating, regularly check the water level in the double jacket and the safety valve.
- After cleaning, always leave the lid slightly open for ventilation.

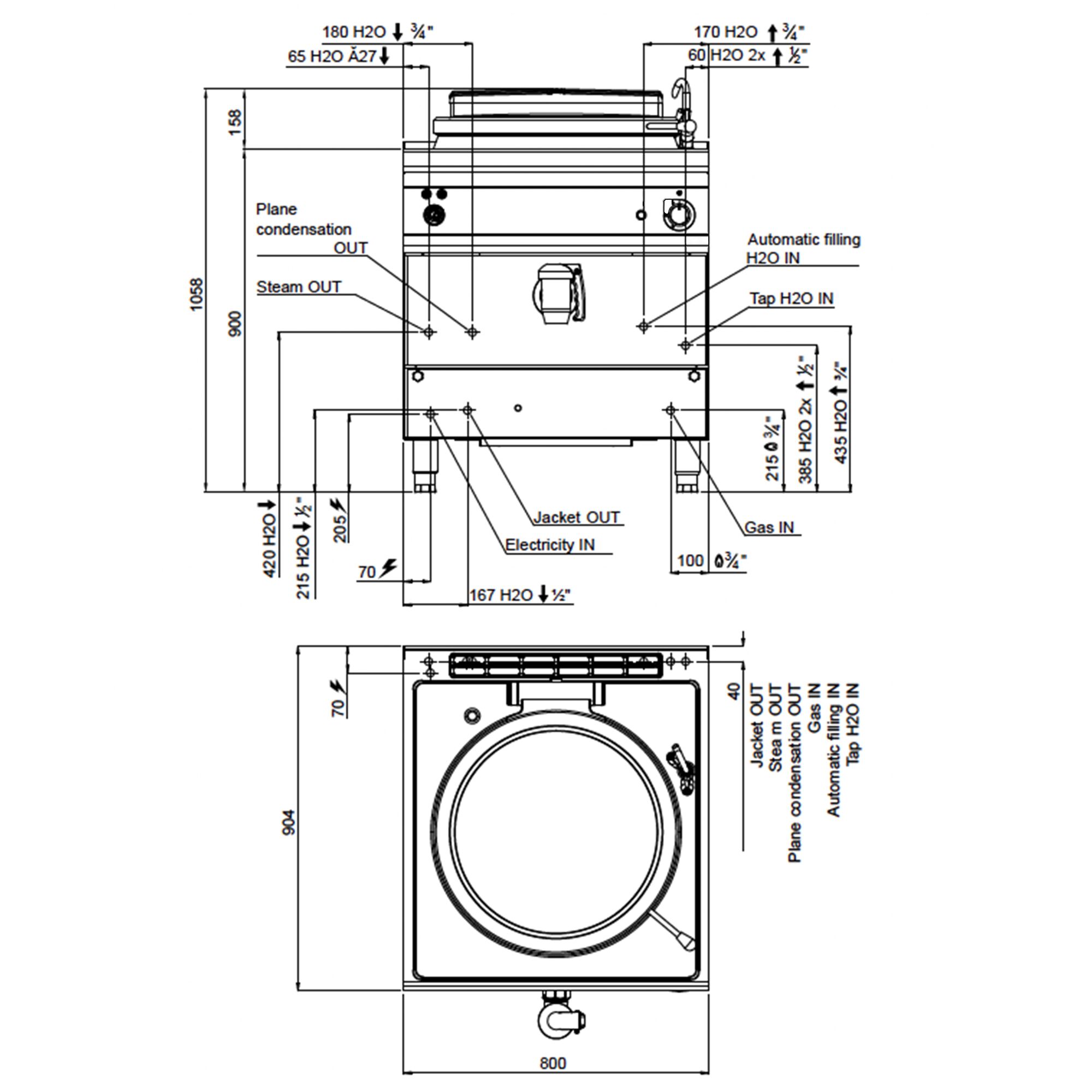

Technical data

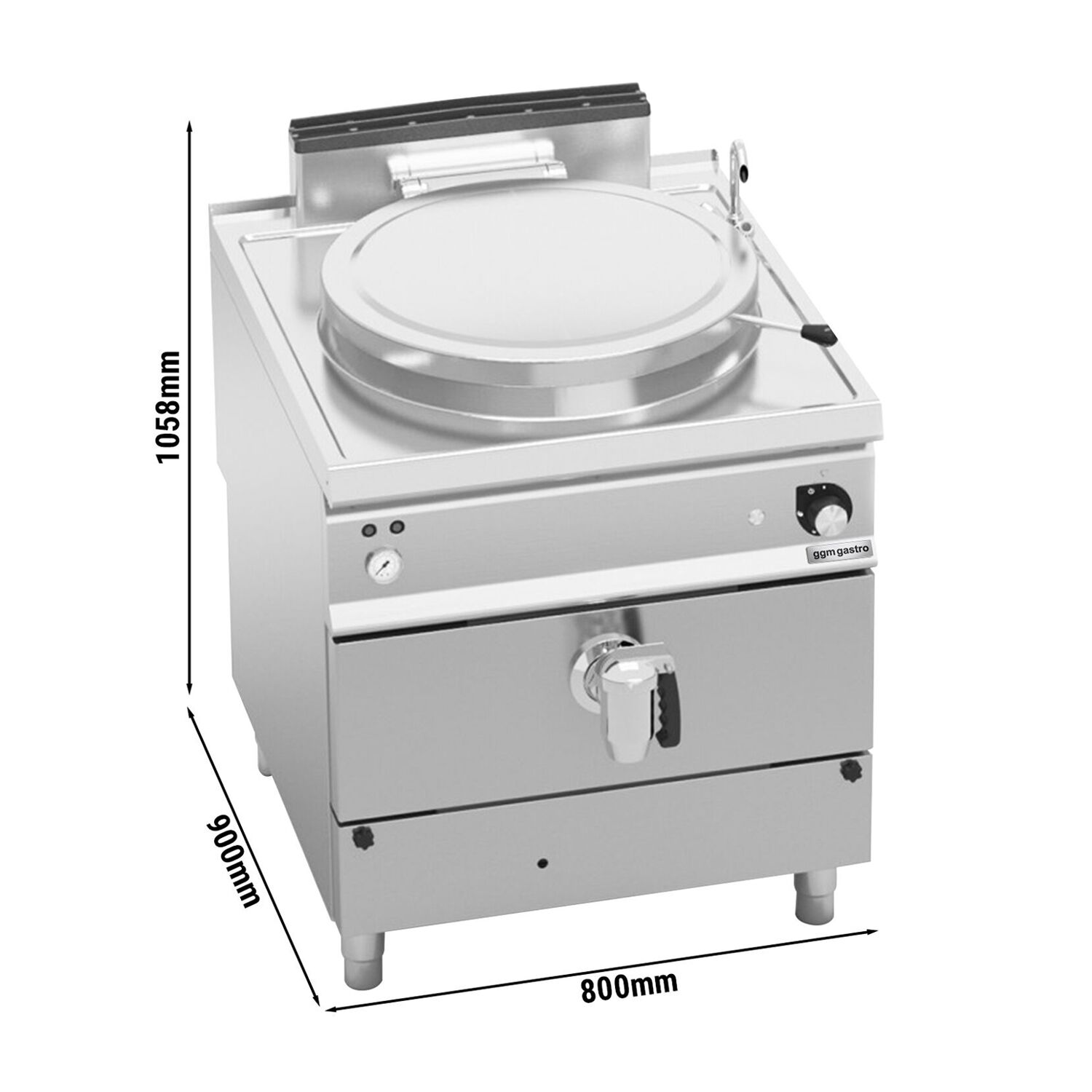

Dimensions
| Width | 800 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.058 mm |
| Boiler diameter | 600 mm |
| Working height | 900 mm |
Details
| Capacity | 100 l |
|---|---|
| Floor thickness | 20/10 |
| Wall thickness | 15/10 |
| Water connection | 15/10 inch |
Connected load
| Operating mode | Gas |
|---|---|
| Power | 20,90 kW |
| Power current | 30 Watt |
Average consumption
| Kcal/h | 17974 |
|---|---|
| Btu/h | 71311 |
| Propane gas (G30 / G31) | 1,64 kg/h |
| Natural gas H (G20) | 2,22 m³/h |
| Natural gas L ( G25 ) | 2,58 m³/h |
Delivery
| Shipping method | Haulage |
|---|---|
| Weight | 138 kg |
