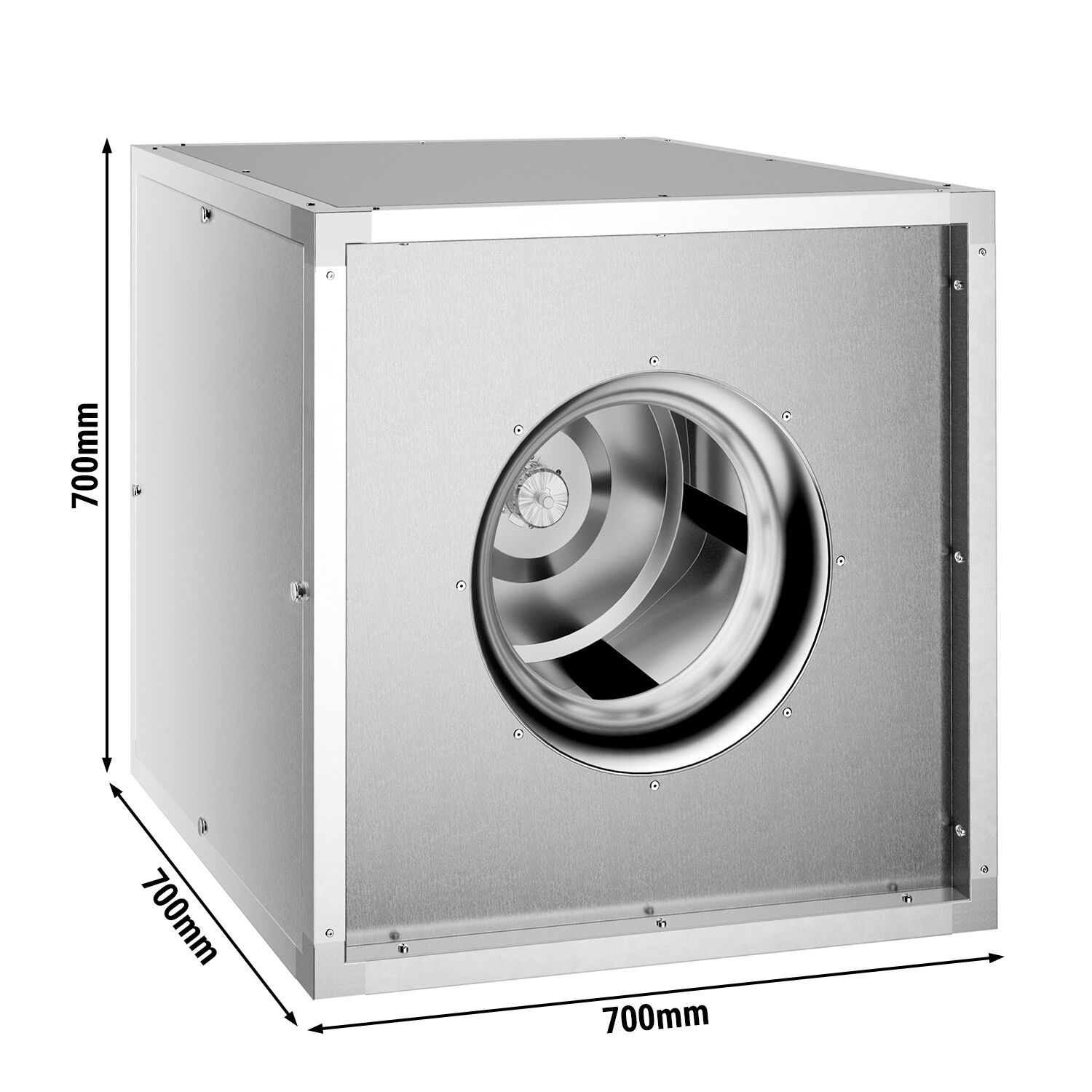

Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 6000m³/h - 230V

Motor compliant with EU Regulation 2024/1834
SKU AC6000PROB
  • Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 6000m³/h - 230V
  • Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 6000m³/h - 230V
  • Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 6000m³/h - 230V
  • Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 6000m³/h - 230V
  • Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 6000m³/h - 230V
  • Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 6000m³/h - 230V

* The picture may slightly differ from the original.

€2,089.99 *
RRP €3,380.99
Delivery time: 5 - 6 Weeks
Free delivery**
Quantity:
Print* net price | gross price incl. 19% VAT.: €2,487.09
Accessories (3)

Product Advantages

  • Brushless motor with high energy efficiency: Reduces power consumption while maintaining the same performance compared to conventional motors.
  • Quiet operation: Minimises noise generation for a more pleasant environment.
  • Long service life: Prevents failures by eliminating brush wear.
  • Low maintenance: Requires minimal servicing due to the absence of carbon brushes.
  • Low heat generation: Enables stable continuous operation without overheating.

Description

Product Overview

The Airbox Pro is a high-quality solution for efficient air circulation with an air turnover of 6000 m³ per hour. It operates with an energy-efficient EC motor, which ensures optimal performance with low power consumption. This model is perfectly suited to supply large rooms or industrial areas with fresh air and to sustainably improve air quality.

Product Details

The PREMIUM model impresses with a motor manufactured in Italy, which is directly coupled to the impeller and drives a centrifugal radial fan with backward-curved blades. This guarantees high performance while maintaining quiet and low-maintenance operation. The weatherproof casing made of galvanised steel sheet protects the Airbox from environmental influences. Additionally, the unit is heat- and sound-insulated with a polyurethane rigid foam insulation, making it suitable for use in noise-sensitive areas. The fan can be easily removed, simplifying cleaning and maintenance.

Conclusion and Applications

The Airbox Pro is a robust and efficient solution for ventilating large indoor and outdoor areas. It is ideally suited for industrial, commercial, and agricultural applications where high air performance and energy efficiency are required. Thanks to the durable materials and thoughtful design, it offers a reliable and economical air circulation solution. With the Airbox Pro, you are investing in a product that combines performance, quality, and sustainability.

Installation & Operation

  • ⚠️ To prevent possible damage to the motor and/or the device, it is essential to connect the thermal protection to the speed controller, provided the wiring diagram shows two lines designated for this purpose.
  • ⚠️ In single-phase motors, the thermal protection is often integrated within the motor, so no external connections to the speed controller are required.
  • ⚠️ Always carefully check the electrical connections before commissioning the fan and/or device.
  • ⚠️ These connections may be located on the fan/device itself or in the terminal box.
  • ⚠️ Damage caused by incorrect electrical connections is excluded from the warranty.

Technical data

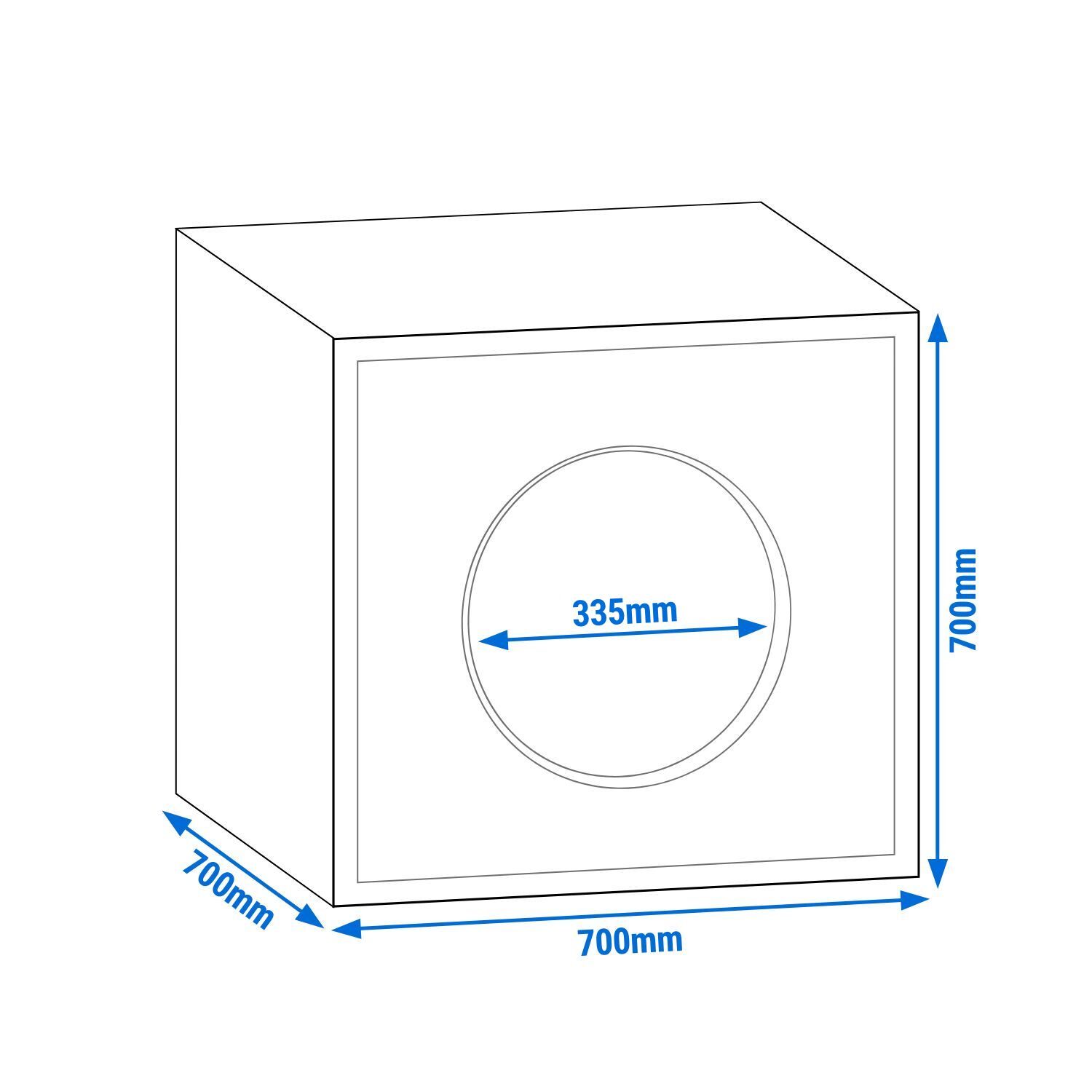

Dimensions

Width 700 mm
Depth 700 mm
Height 700 mm

Details

Air turnover per hour 6.000 m³
Pumped liquid temperature max. 110 °C
Air inlet 335 mm

Connected load

Power 650 Watt
Voltage 230V
Phase(s) 1N/PE
Frequency 50 Hz
Amperage 7 A

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 59 kg
Net weight 54 kg
