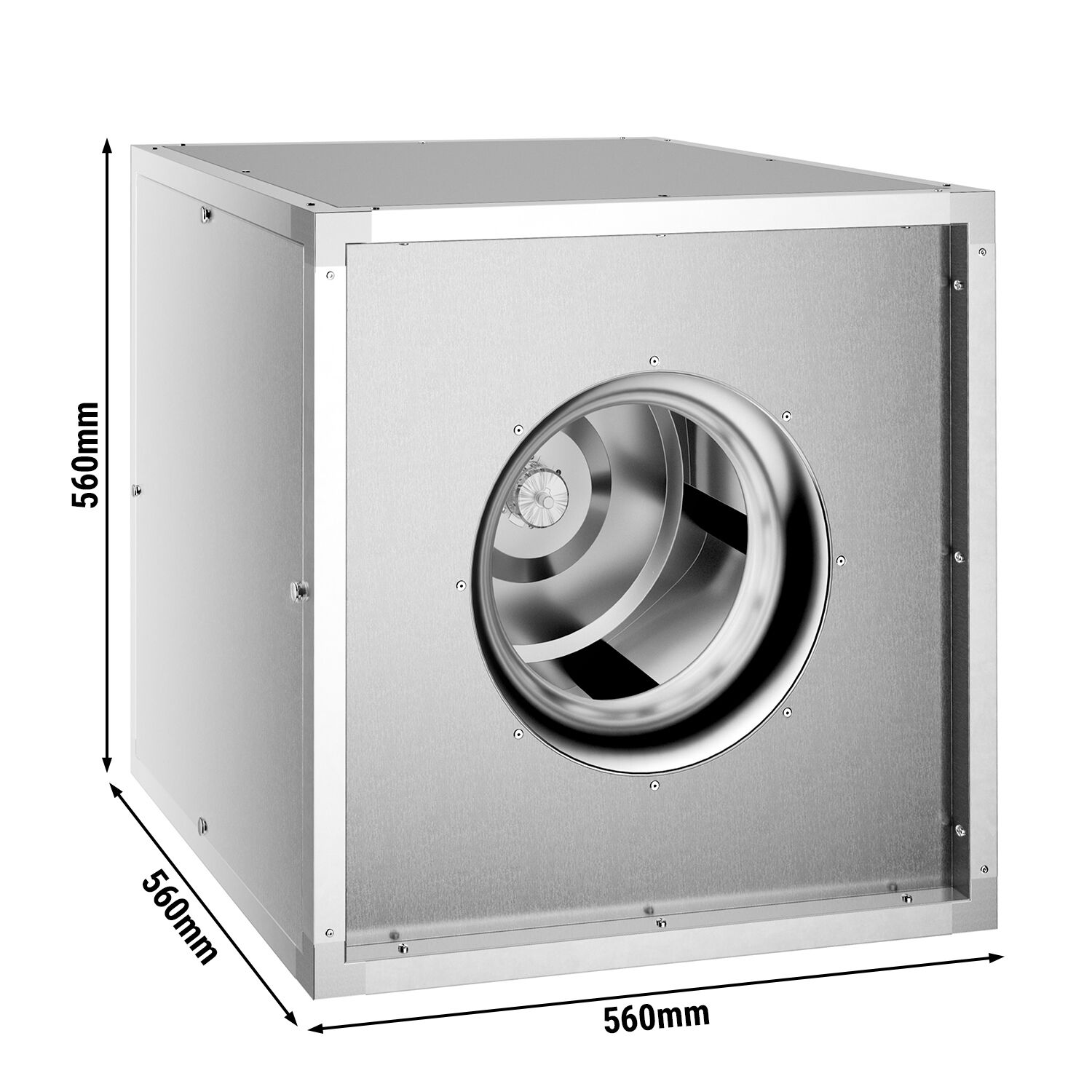

Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 4000m³/h - 230V
Motor compliant with EU Regulation 2024/1834
SKU AC4000PROB
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €2,391.89
Airbox Pro Brushless Motor (EC) Commercial Extractor Fan - 4000m³/h - 230V
Rate now
SKU AC4000PROB
Motor compliant with EU Regulation 2024/1834
Print* net price | gross price incl. 19% VAT.: €2,391.89
Accessories (3)
Product Advantages
- Brushless motor with high energy efficiency: Reduces power consumption while delivering the same performance compared to conventional motors. This leads to lower operating costs.
- Quiet operation: Produces significantly less noise than brushed motors. This minimises noise pollution.
- Long service life: No brush wear results in fewer breakdowns. The product’s reliability is increased.
- Low maintenance: The absence of carbon brushes reduces service requirements. This saves time and costs in maintenance.
- Low heat generation: Enables stable continuous operation without overheating. This improves operational safety.
Description
Powerful Airbox for Efficient Air Circulation
The Airbox Pro is a high-quality device specifically designed for reliable and efficient air circulation. With an air turnover of 4000 m³ per hour, it ensures optimal ventilation in a wide range of areas. Thanks to the integrated energy-efficient EC motor, the Airbox operates with particularly low power consumption and is environmentally friendly. The robust design and weatherproof casing made of galvanised sheet steel guarantee a long service life.Innovative Technology and Thoughtful Details
The device features a motor manufactured in Italy, which is directly coupled to the impeller, significantly increasing efficiency and smooth operation. The centrifugal fan with backward-curved blades is easy to clean and can be simply removed if necessary. The polyurethane rigid foam insulation provides effective heat and sound insulation, making the operation especially quiet and pleasant. A pre-cut air inlet greatly simplifies installation.Conclusion: Versatile Use with Low Energy Consumption
The Airbox Pro is ideal for use in industry, commerce, or larger buildings where powerful yet energy-efficient ventilation is required. It combines high performance with low power consumption and impresses with its durable workmanship. Whether for improving air quality or temperature control – this model offers a reliable solution for diverse requirements.Installation & Operation
- ⚠️ To prevent possible damage to the motor and/or device, the thermal protection must be connected to the speed controller if two wires are indicated for this in the wiring diagram.
- ⚠️ For single-phase motors, the thermal protection is often integrated into the motor, so no external connections to the speed controller are necessary.
- ⚠️ Before commissioning, the electrical connections must be carefully checked. These are located on the fan, device, or in the connection box.
- ⚠️ Faulty electrical connections will void the warranty.
- Connect the thermal protection to the speed controller if the wiring diagram shows two wires for it.
- For single-phase motors, the thermal protection is usually integrated into the motor and does not require an external connection.
- Before commissioning, check all electrical connections on the device and connection box.
- Note that damage caused by incorrect connections is not covered by the warranty.
Technical data

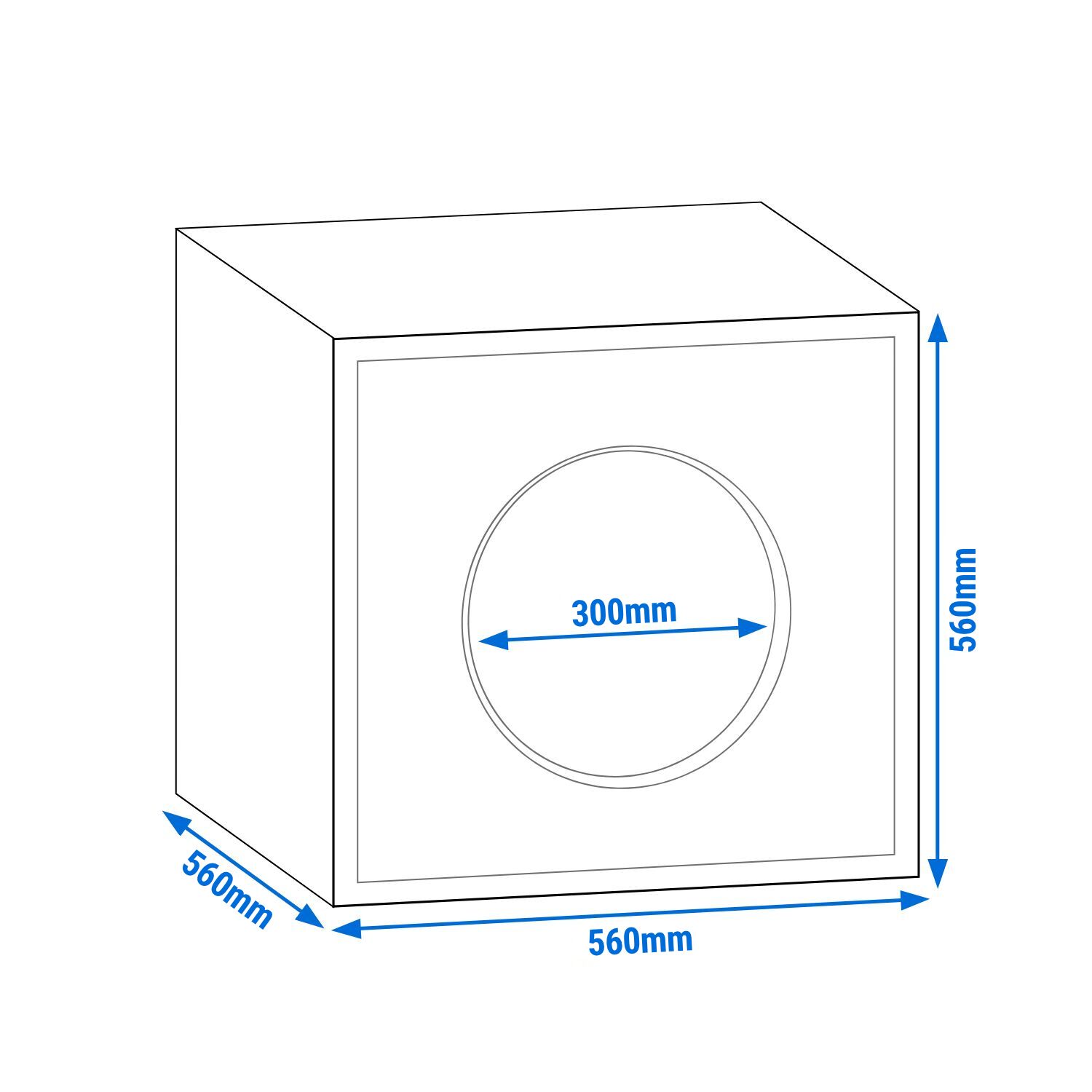

Dimensions
| Width | 560 mm |
|---|---|
| Depth | 560 mm |
| Height | 560 mm |
Details
| Air turnover per hour | 4.000 m³ |
|---|---|
| Pumped liquid temperature | max. 110 °C |
| Air inlet | 300 mm |
Connected load
| Power | 420 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
| Amperage | 6 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 45 kg |
| Net weight | 40 kg |
