• Brushless motor with high energy efficiency: Reduces power consumption while maintaining the same performance compared to conventional motors.
• Quiet operation: Minimises noise generation for a more pleasant environment.
• Long service life: Prevents breakdowns by eliminating brush wear.
• Low maintenance: Requires minimal servicing due to the absence of carbon brushes.
• Low heat generation: Allows stable continuous operation without overheating.

Efficient Air Circulation with the Airbox Pro

The Airbox Pro is a high-quality solution in the category of airboxes and impresses with its high air circulation rate of 10,000 m³ per hour. It is specially designed to move large volumes of air efficiently, ensuring optimal ventilation in a variety of environments. With an operating voltage of 230 V, it can be easily integrated into existing systems and offers reliable performance.

Features and Technical Details

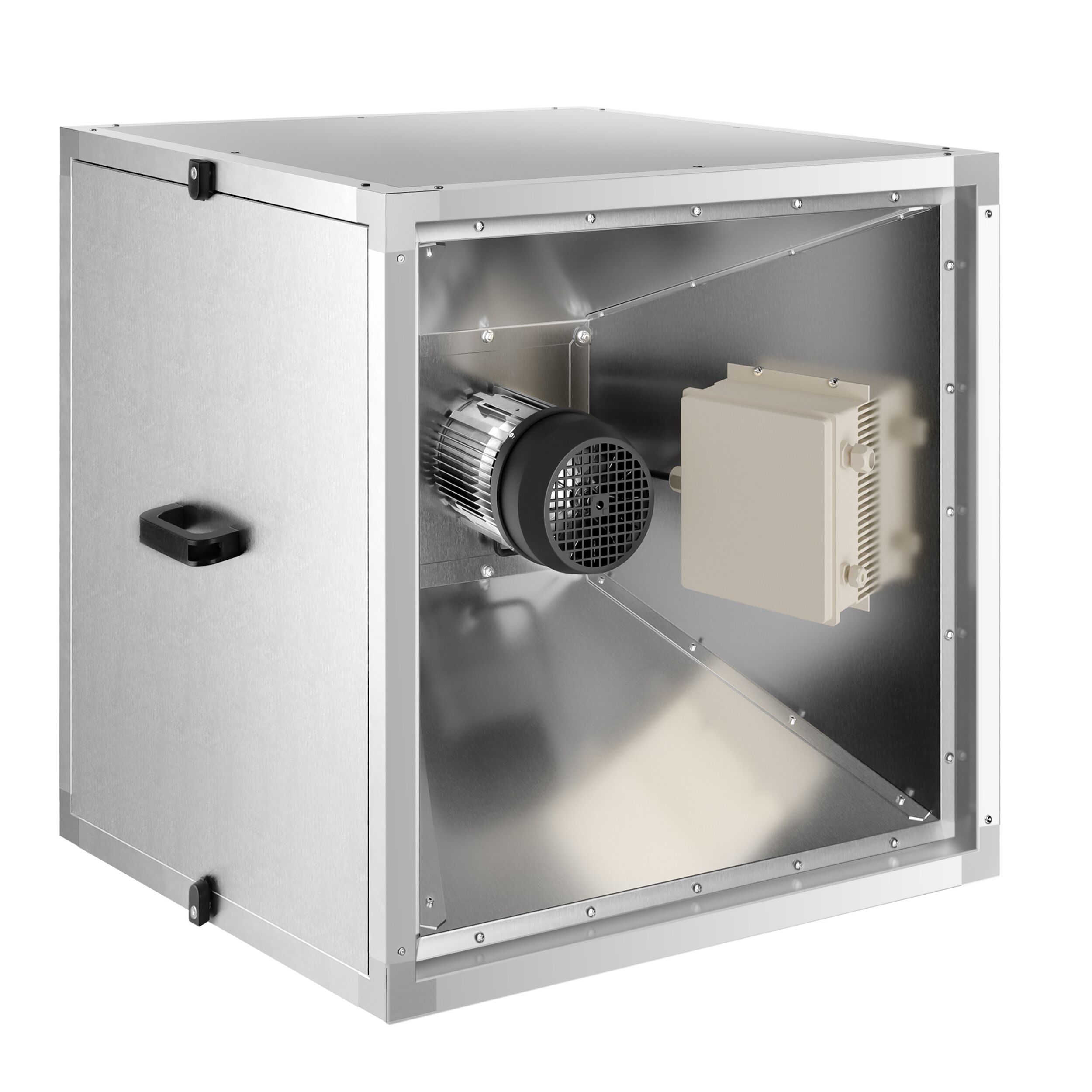

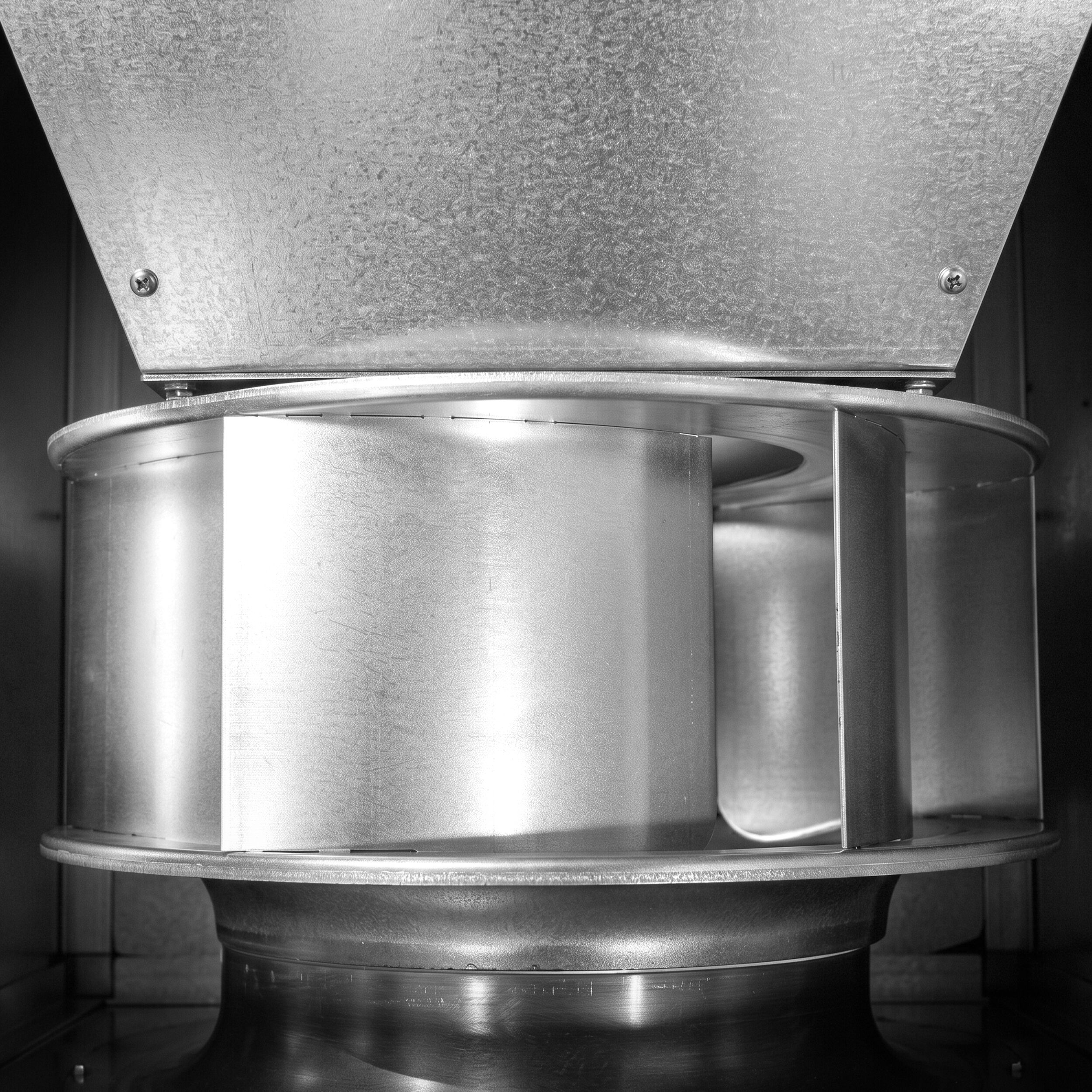

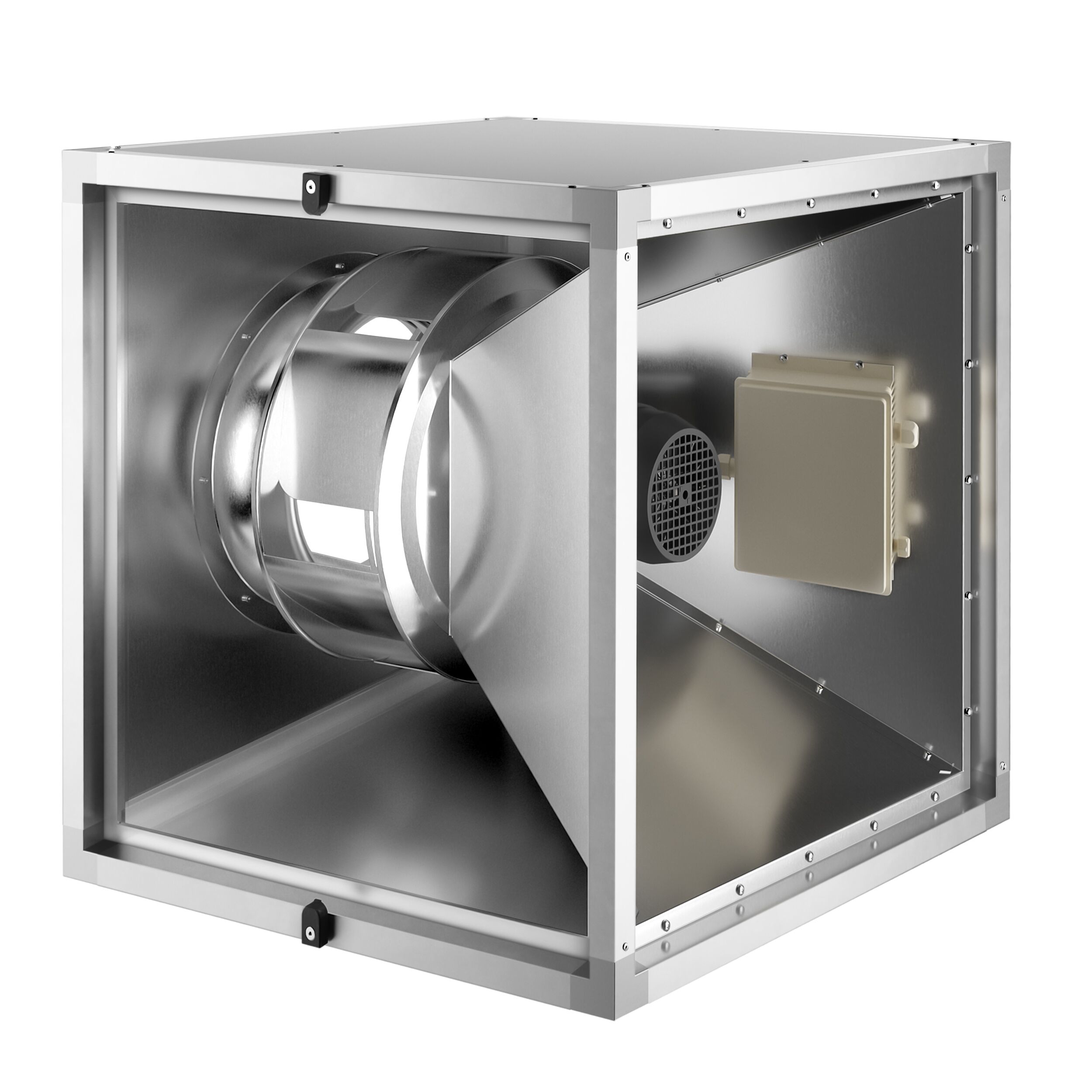

At its core is an energy-efficient EC motor, manufactured in Italy, known for its long service life. Thanks to the motor directly coupled to the impeller, the Airbox operates particularly quietly and energy-efficiently. The centrifugal fan with backward-curved blades is easy to clean and can be simply removed if necessary. The weatherproof casing made of galvanised steel sheet protects the unit from environmental influences, while the polyurethane rigid foam insulation provides effective heat and sound insulation.

Conclusion and Areas of Application

The Airbox Pro is perfectly suited for use in industry, commerce, and demanding ventilation systems where high air performance combined with low power consumption is required. It stands out due to its robust construction and easy maintenance. With this airbox, you benefit from an efficient and durable solution that ensures fresh air while operating quietly and energy-efficiently.

• ⚠️ To prevent possible damage to the motor and equipment, the thermal protection must be connected to the speed controller if the wiring diagram shows two wires for this.
• ⚠️ In single-phase motors, the thermal protection is often integrated into the motor, so no external connections are necessary.
• ⚠️ Before commissioning, the electrical connections on the fan or terminal box must be checked carefully.
• ⚠️ Damage caused by incorrect electrical connections is excluded from the warranty.

1. Connect the thermal protection to the speed controller if the wiring diagram requires it.
2. No external thermal protection connections are needed for single-phase motors.
3. Check all electrical connections carefully before starting up.
4. Note that incorrect connections are not covered by the warranty.
